EUROLITE QuickDMX súprava vysielač 1x + prijímač 2x (model 20000027)

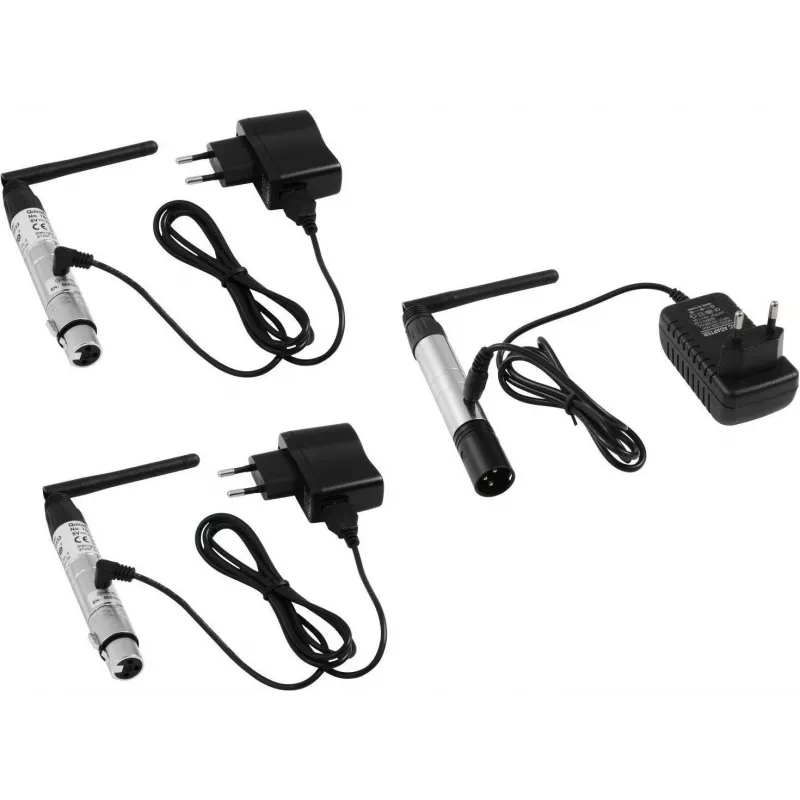

EUROLITE QuickDMX Set Sender 1x + Receiver 2x (model 20000027) is a wireless DMX512 transmission kit that provides a compact solution for sending lighting control signals without physical cabling. The set includes one transmitter and two receivers that operate together to deliver DMX control data to fixtures, dimmers and moving lights. It is intended for use where reduced cable runs, quick setup and more flexible fixture placement are required, such as stages, clubs, event venues and temporary rigs.

Advantages

The QuickDMX set removes the need for long DMX cable runs and simplifies installation, enabling faster setup and teardown. With a dedicated transmitter and two receivers included, the kit supports distributing a single DMX universe wirelessly to multiple locations. The devices are compact and designed for straightforward integration with standard DMX512 equipment and consoles, preserving signal compatibility and minimizing wiring complexity.

Suitable for

Key specifications

How to use

Connect the DMX output from your lighting console to the transmitter's DMX input using a standard DMX cable, then position the transmitter so it has an unobstructed line of sight to the receivers when possible. Connect each receiver's DMX output to the input of the lighting fixtures or dimmers you want to control. Power all units according to manufacturer instructions and verify the wireless link and channel mapping on the lighting console. Test fixture response and adjust placement if signal interference or dropouts are observed.

Recommendations

Place the transmitter centrally and keep antennas clear of metal obstructions to maximize link reliability. For critical shows, perform a signal test before the event and maintain a wired backup where feasible. Use appropriate weather protection if deploying the units outdoors, and follow local regulations regarding wireless device operation and frequencies.
