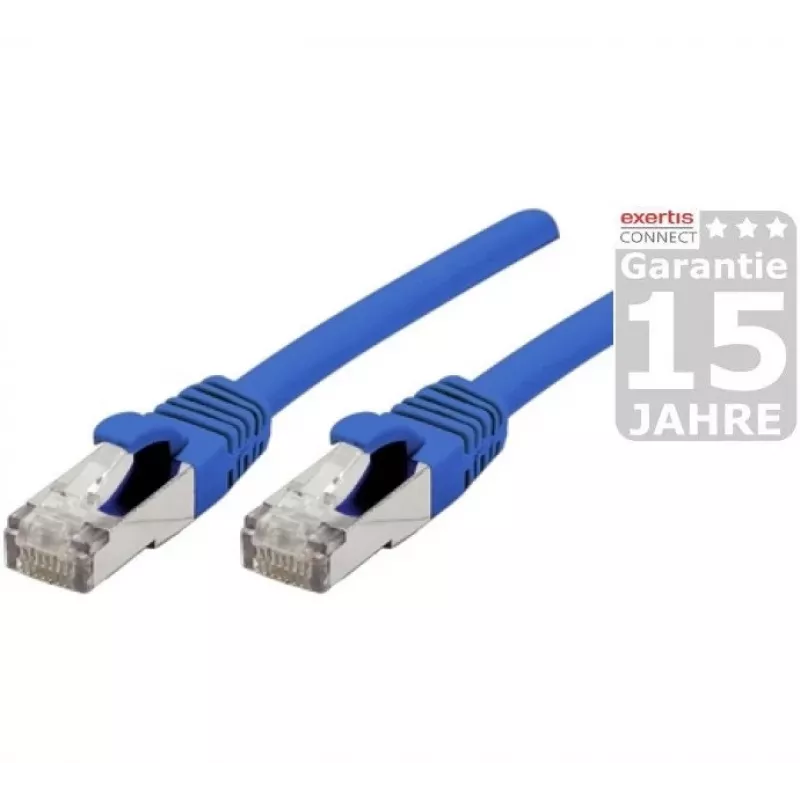

EXERTIS CONNECT Cat 6A S/FTP patch kábel, 0,5 m, modrá, Slim Snagless Boot 858451

This EXERTIS CONNECT patch cable stands out with its especially slim kink protection, making it ideal for high-density patch panels and tight spaces. The S/FTP (PiMF) shielding with pairs in metal foil ensures excellent protection against alien crosstalk, while the LSZH jacket adds safety in enclosed areas.

Highlights

• Cat 6A performance up to 500 MHz for 10 Gigabit Ethernet
• S/FTP (PiMF) shielding: each pair individually foiled plus overall braid
• Slimline, snagless, molded boot with 50µm gold-plated contacts
• LSZH jacket: low smoke, zero halogen for safer installations
• Short 0.5 m length reduces clutter in racks and cabinets

In daily use

The blue jacket helps with color-coding network segments, and the slim boot design allows easy insertion and removal in dense patch fields. The 26 AWG stranded copper conductors provide flexibility while maintaining signal integrity.

Full specifications

• Cable type: Shielded Ethernet Patch Cable (S/FTP, PiMF)
• Category: Cat 6A (Class EA)
• Length: 0.5 m
• Colour: Blue
• Connector A: RJ45 male
• Connector B: RJ45 male
• Conductor material: Copper (Cu)
• Conductor gauge: 26 AWG
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Boot type: Slimline, snagless, molded
• Contact plating: Gold-plated (50µm)
• Bandwidth: Up to 500 MHz
• Data rate support: 10 Gigabit Ethernet (10GBASE-T)
• Wiring scheme: TIA/EIA 568B
• Standards compliance: ISO/IEC 11801, EN 50173, EIA/TIA 568-C.2
• Operating temperature: -20°C to +60°C

Final note

With its slim kink protection and high-performance shielding, this cable is a reliable choice for demanding 10G networks where space is at a premium.
