EXERTIS CONNECT KVM matrix extender cez IP vysielač, až do 150 m, HDMI / USB (051704)

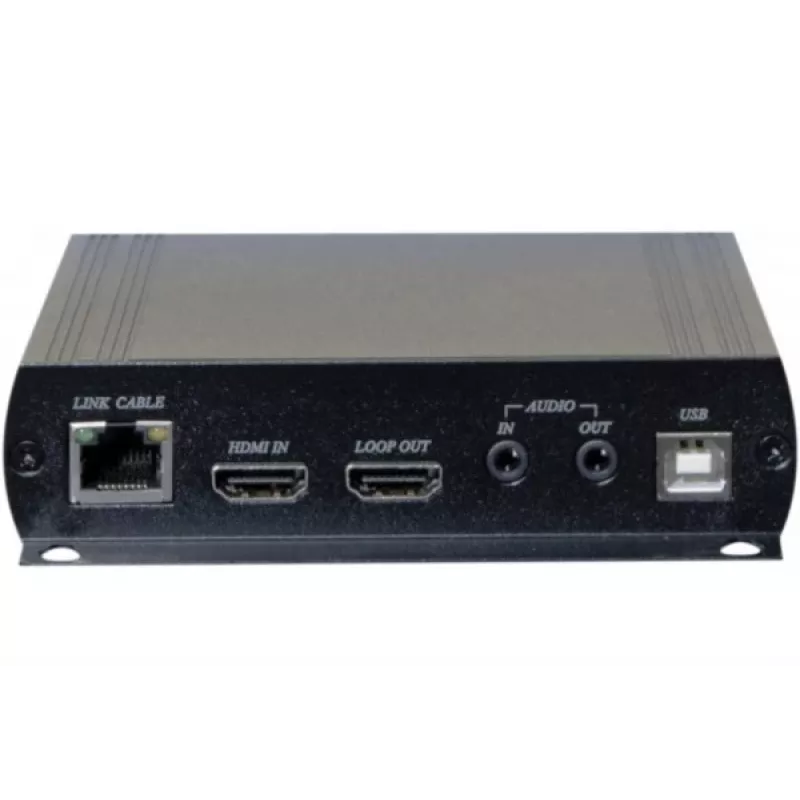

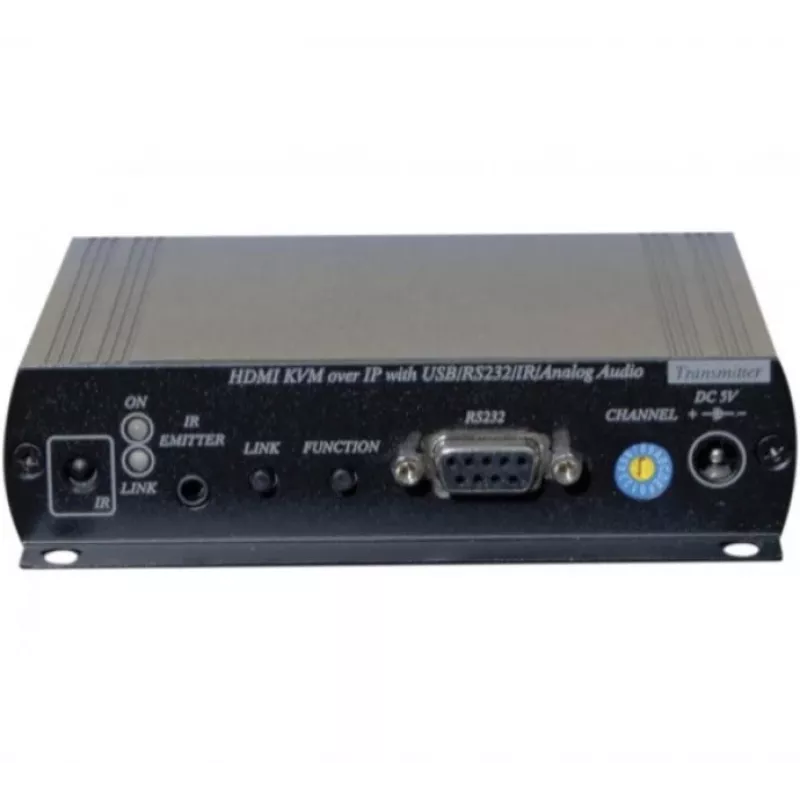

The EXERTIS CONNECT 051704 is a KVM over IP sender unit that extends HDMI video and USB 2.0 signals up to 150 m over standard network cable. It is designed for scalable matrix switching in professional AV and control room environments.

Highlights

• Transmits HDMI video and USB signals over Gigabit Ethernet
• Supports resolutions up to 1920 x 1200 @ 60 Hz
• Near zero latency for real-time control
• Metal housing for durability

In daily use

Connect the sender to your computer via HDMI and USB-B, then link it to a network switch using Cat 5e/6/7 cable. Pair with compatible receivers to create a flexible KVM matrix. Local HDMI loop-out allows monitoring at the sender side.

Full specifications

• Product type: KVM Matrix Extender Sender
• Connectivity: KVM over IP
• Video input: 1x HDMI
• Video output (local): 1x HDMI loop-out
• USB host: 1x USB-B
• Network: 1x RJ45 Gigabit Ethernet
• Max resolution: 1920 x 1200 @ 60 Hz
• Max distance: 150 m
• USB standard: USB 2.0
• HDCP: 1.4
• Power: DC 5V / 2A
• Material: Metal

Final note

Scalable KVM over IP matrix sender for professional installations requiring reliable long-distance signal extension.
