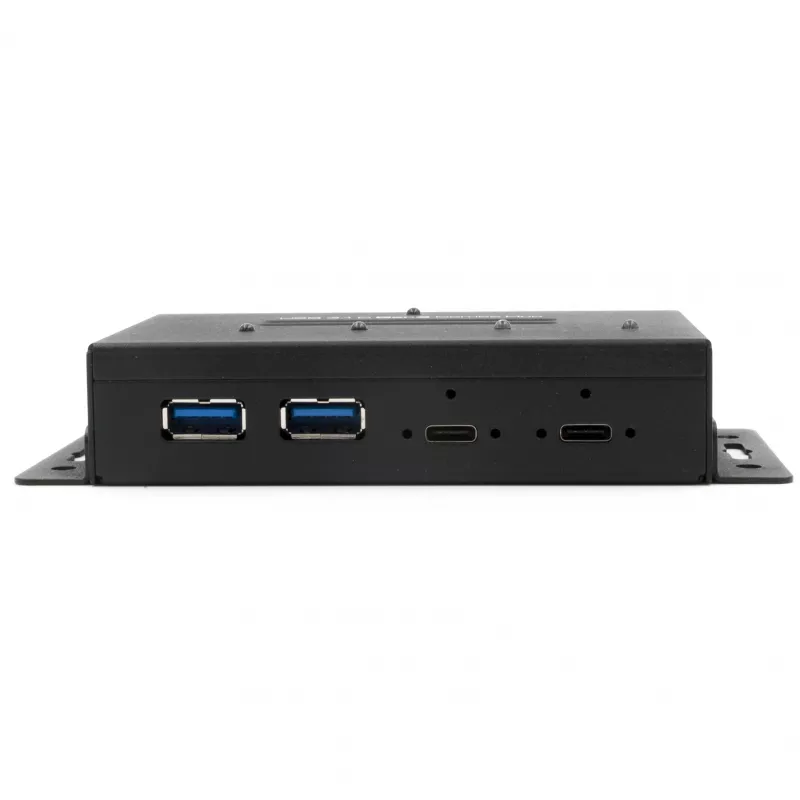

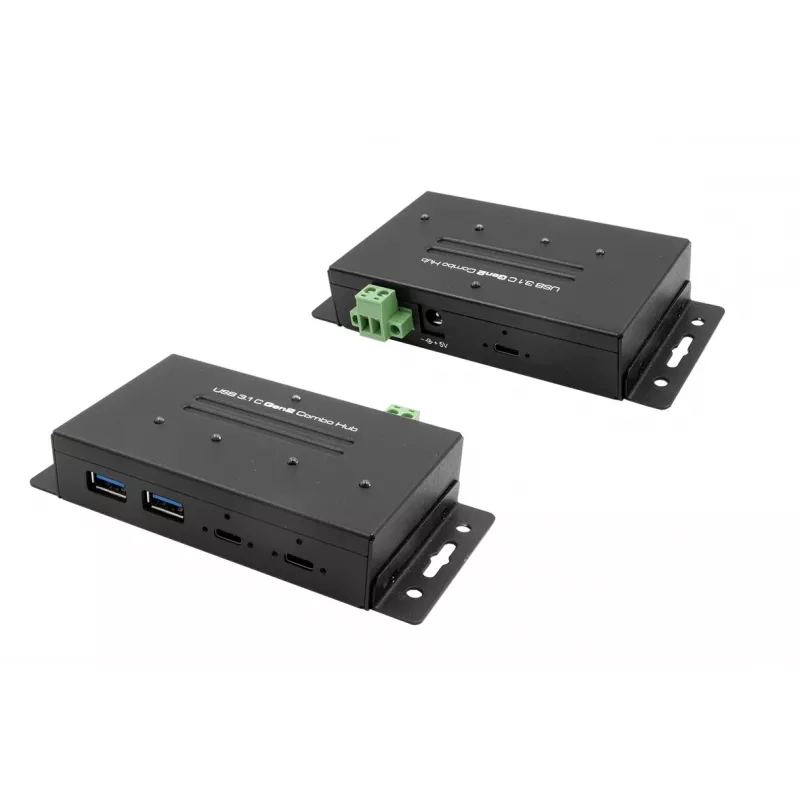

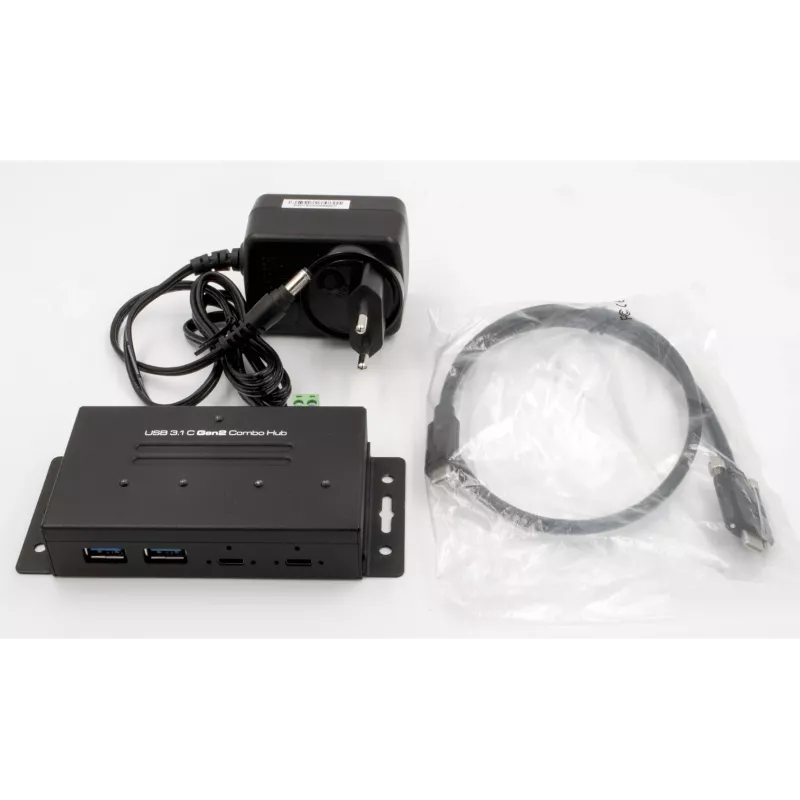

EXSYS EX-1240HMVS Industrial 4-portový USB 3.2 Gen 2 hub, montáž na DIN lištu, kov

Industrial-grade 4-port USB 3.2 Gen 2 hub with data transfer rates up to 10 Gbps. The rugged metal housing and wide 9-48V DC input make it suitable for factory floors and control cabinets, with both desktop and DIN rail mounting options.

Advantages

SuperSpeed USB 10Gbps performance, 15kV ESD protection, and an extended operating temperature range from -40°C to 85°C ensure reliable connectivity in harsh environments. Per-port status LEDs and BC 1.2 charging support add convenience.

Suitable for

• Industrial automation and machine vision systems
• Control cabinets and DIN rail installations
• Connecting high-speed USB devices in demanding environments

Key specifications

• 4 downstream USB Type-A ports (USB 3.2 Gen 2, 10 Gbps)
• 1 upstream USB Type-B port
• 9-48V DC terminal block power input
• Metal housing, DIN rail and desktop mountable
• Operating temperature: -40°C to 85°C
• ESD protection: 15kV, surge protection
• VIA Labs VL820-Q7 chipset
• USB Battery Charging BC 1.2
• Plug & Play, hot-swappable
• Compatible with Windows, macOS, Linux

Recommendations

Ideal for system integrators and industrial users who need a robust, high-speed USB hub that can be mounted on a DIN rail and powered from a wide-range DC source.
