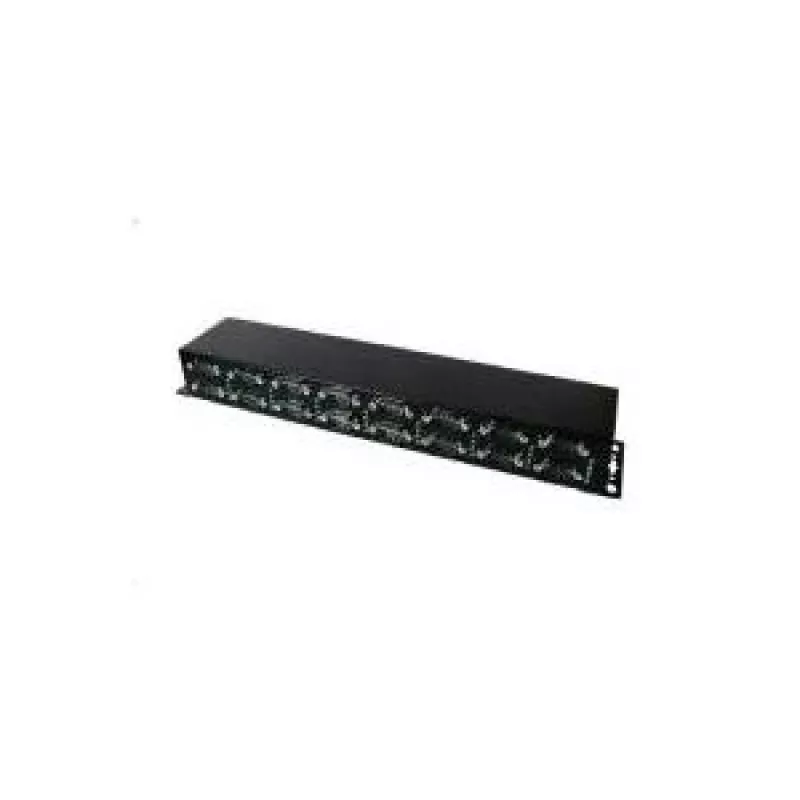

EXSYS EX-1316HMV 16-port USB na RS-232 sériový adaptér, Rackmount, FTDI čipset, 921,6 Kbps, kovové puzdro

In industrial automation and server rooms, connecting multiple legacy RS-232 devices to a modern USB-equipped computer can be a challenge. The EXSYS EX-1316HMV solves this by providing 16 RS-232 serial ports through a single USB 2.0 connection. It features a robust 1U rackmount metal housing with 16 DB9 male connectors, making it ideal for managing serial consoles, barcode scanners, POS terminals, and industrial equipment from a central server or workstation.

Key specifications

• Host Interface: USB 2.0 (backward compatible with USB 1.1), USB Type B connector
• Serial Interface: RS-232, 16 ports, DB9 male connectors
• Data Transfer Rate: Up to 921.6 Kbps per port
• Chipset: FTDI for reliable, broad OS compatibility
• Supported Operating Systems: Windows XP/Vista/7/8/10/11, Windows Server, Linux, macOS
• Power Supply: External 12V DC (included)
• ESD Protection: 15 KV on all serial lines
• FIFO Buffer: 128-byte transmit, 256-byte receive per port
• Serial Parameters: Data bits 5/6/7/8, stop bits 1/1.5/2, parity none/even/odd/mark/space
• Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
• Form Factor: 19-inch rackmount, 1U height, metal housing
• LED Indicators: Tx/Rx activity per port
• Operating Temperature: 0°C to 55°C

Why choose it

The EX-1316HMV stands out with its high port density and industrial-grade build. The FTDI chipset ensures native drivers for all major operating systems, eliminating the need for complex installations. The included external power supply guarantees stable operation even when all 16 ports are active simultaneously, and the 15 KV ESD protection safeguards against electrical surges in demanding environments.

Ideal use cases

• Industrial automation: connect PLCs, sensors, and HMIs to a control PC
• Point-of-sale systems: manage multiple receipt printers, barcode scanners, and cash drawers
• Server administration: access serial consoles of network switches, routers, and servers
• Laboratory equipment: interface with analytical instruments and data loggers
• Legacy system integration: modernize older machinery with USB connectivity

Good to know

The adapter is rack-mountable for neat integration into server cabinets. It includes an external 12V DC power supply, and the metal housing ensures durability. The LED indicators per port provide quick visual feedback on data activity. The device is compatible with a wide range of operating systems, making it a versatile choice for mixed environments.
