Extralink optický patch kábel SC/APC na LC/UPC singlemode G.652D simplex 15 m FTTH žltý

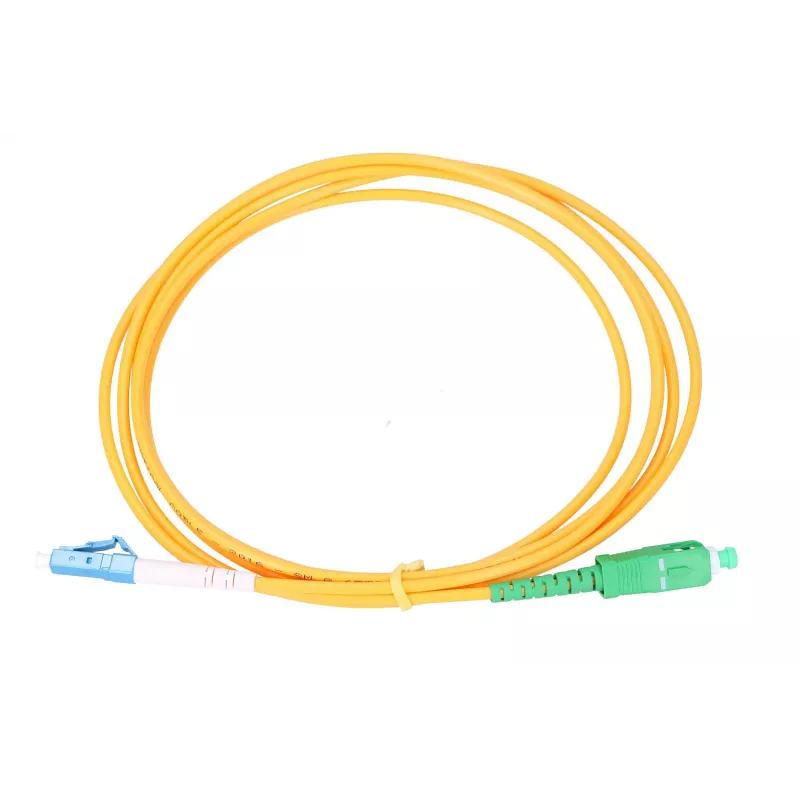

Extralink fiber patchcord SC/APC to LC/UPC singlemode G.652D simplex 15 m FTTH yellow is a singlemode optical jumper designed for connecting telecom and data equipment in FTTH and data center environments. The cable uses G.652D singlemode fibre in a simplex configuration with SC/APC on one end and LC/UPC on the other, presented in a 15-metre yellow jacket suitable for visible routing in installation closets and residential terminations. It is intended for optical links between ONT/ONU, OLT, optical switches, media converters and patch panels.

Advantages

This patchcord provides low insertion loss and stable singlemode transmission characteristics due to the G.652D fibre type. The mixed connectorization—SC/APC to LC/UPC—allows direct connection between devices with different port types without adapters, reducing signal reflection on APC-terminated ends. A 3 mm jacket diameter offers mechanical protection and easy handling during installation. The yellow outer sheath indicates singlemode fibre for quick identification in multi-fibre environments.

Suitable for

Key specifications

How to use

Ensure both connection points are clean and free from dust before connecting. Remove protective dust caps and align the SC/APC connector into the corresponding SC/APC port until it clicks, then insert the LC/UPC connector into the LC port with appropriate orientation. Avoid bending the cable beyond its minimum bend radius and do not pull on the connectors. After installation, secure the cable in routing clips or cable management channels to prevent strain and maintain signal integrity.

Recommendations

For optimal performance, clean connector endfaces with appropriate fibre cleaning tools before each connection and store unused patchcord ends with protective caps. Maintain bend radius recommendations and avoid tight ties; inspect connectors periodically in high-usage links to ensure low insertion loss and return loss stability.
