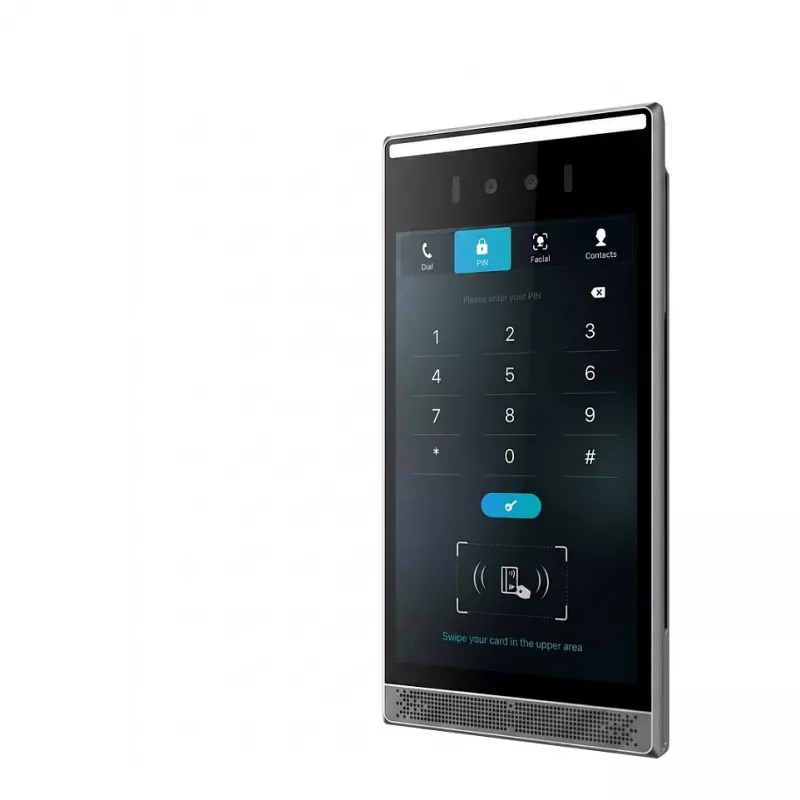

Fanvil i68 SIP audio a video ovládací terminál - PoE, IP65, RFID

The Fanvil i68 is a robust SIP audio and video control terminal designed for professional intercom and access control applications. Combining a 4.3-inch TFT LCD display, a 2MP CMOS camera with wide-angle lens, and full-duplex speakerphone, it delivers clear two-way communication. The device supports H.264 video encoding and multiple audio codecs (G.711a/u, G.722, G.726, G.729) for seamless integration with SIP-based systems.

Advantages

Built with an aluminum alloy housing and rated IP65 (dust-tight and water-jet protected) and IK07 (impact resistance), the i68 is ideal for outdoor or harsh environments. Power over Ethernet (PoE 802.3af) simplifies installation by eliminating the need for a separate power supply. Dual relay outputs and two alarm inputs allow integration with door locks, gates, or other external devices. The built-in RFID/IC card reader (13.56MHz & 125KHz) and numeric keypad provide flexible access control.

Suitable for

• Building entry intercom systems
• Secure access control for offices, warehouses, and industrial sites
• Video door phone for residential or commercial use
• Integration with SIP PBX or VoIP systems

Key specifications

• Display: 4.3-inch TFT LCD
• Camera: 2 Megapixel CMOS, 110° (H) x 60° (V) view angle
• Video Codec: H.264
• Audio Codecs: G.711a/u, G.722, G.726, G.729
• SIP Lines: 2
• Network: 1 x 10/100 Mbps Ethernet (RJ45) with PoE (802.3af)
• Access Control: RFID/IC card (13.56MHz & 125KHz), numeric keypad, DTMF
• Relays: 2 (short-circuit output)
• Inputs: 2 (short-circuit input)
• IP Rating: IP65
• IK Rating: IK07
• Housing: Aluminum alloy
• Installation: Wall-mounted (flush-mount optional)
• Operating Temperature: -20°C to 50°C
• Tamper Switch: Yes

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. The i68 is compatible with most SIP-based intercom systems and PBXs. Consider the flush-mount kit for a sleek, recessed installation.
