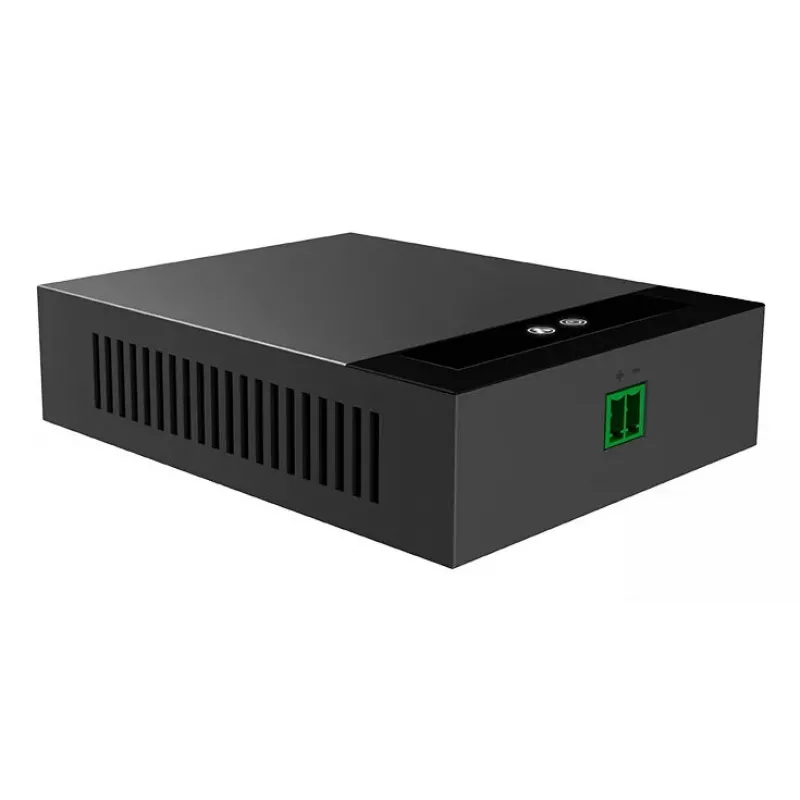

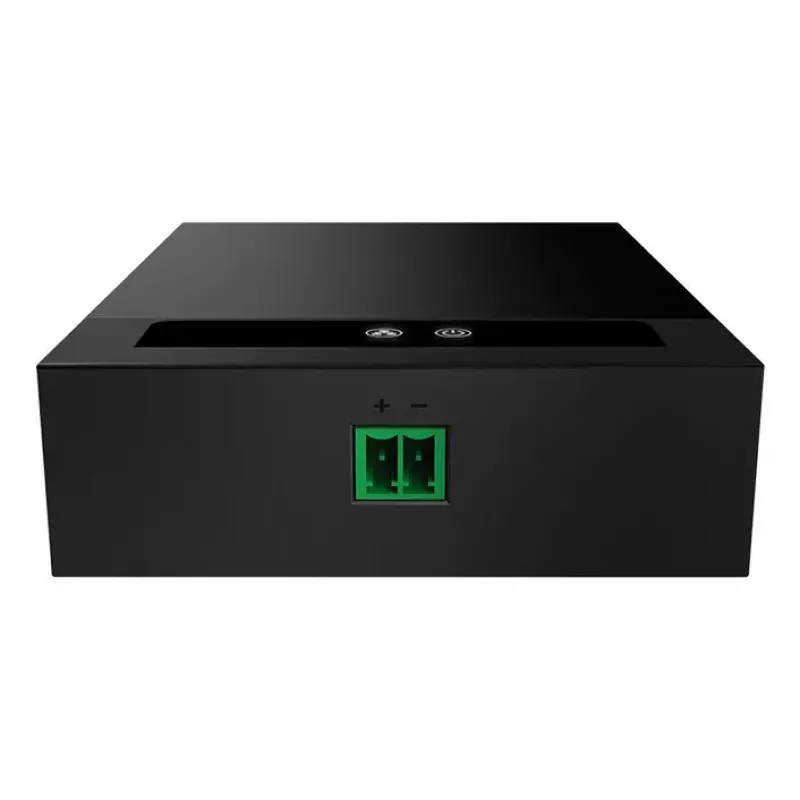

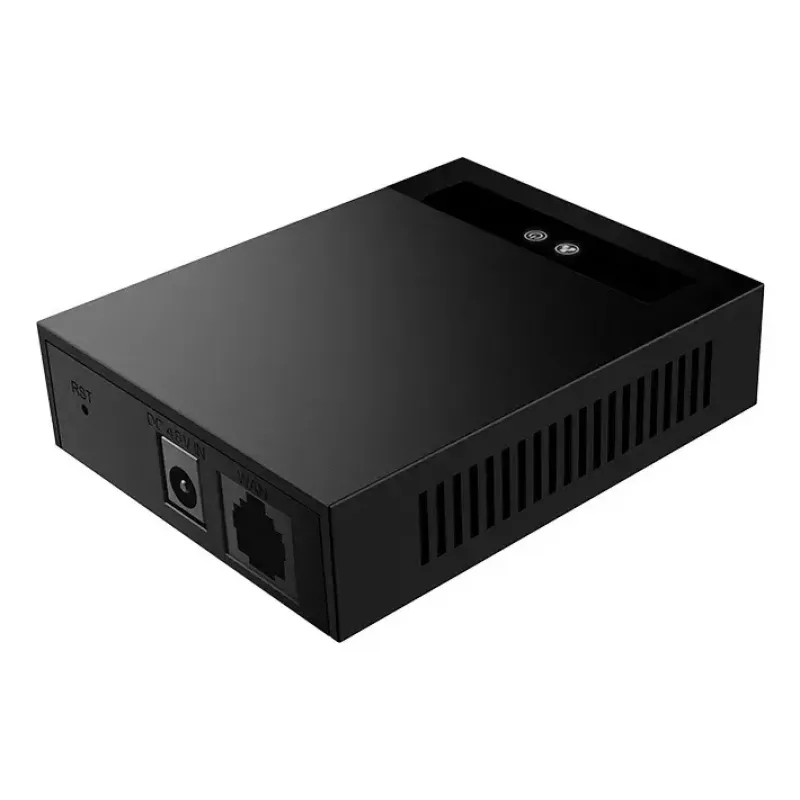

Fanvil PN1 sieťový media konvertor 100 Mbit/s čierny

The Fanvil PN1 Network Media Converter 100 Mbit/s Black is a 2-wire converter designed to extend Ethernet connections over long distances while reusing existing wiring. It supports a maximum data transfer rate of 100 Mbit/s and a transfer distance of up to 1600 m. The unit includes LED indicators for network and power status, is built in durable ABS material and accepts a wide input voltage range of 100–240 V.

Advantages

The PN1 requires no complex installation or additional cabling — simply plug it in to restore network connectivity over legacy two-wire lines, saving installation time and reducing wiring costs. Its compact, robust ABS housing and clear LED indicators provide straightforward status monitoring, and the device is suitable for use where a reliable, low-speed link over long distance is needed.

Suitable for

• Extending Ethernet to remote rooms or buildings over existing two-wire infrastructure
• Connecting IP devices where running new Ethernet cable is impractical
• Temporary network extensions and quick deployments

Key specifications

• Maximum data transfer rate: 100 Mbit/s
• Ethernet LAN (RJ-45) ports: 1
• Maximum transfer distance: 1600 m
• Product colour: Black
• Weight: 0.69 kg
• Housing material: ABS
• Input voltage range: 100–240 V

How to use

Connect the PN1 to the existing two-wire line and plug the Ethernet RJ-45 cable into the LAN port. Power the device from a suitable 100–240 V source. Verify link and power status using the LED indicators; once LEDs indicate an active connection, attached devices will be able to communicate over the converted link at up to 100 Mbit/s.

Recommendations

For stable performance keep cable runs within the specified maximum distance of 1600 m and use good quality two-wire lines. Position the unit in a ventilated, dry location and avoid exposure to extreme temperatures or moisture.
