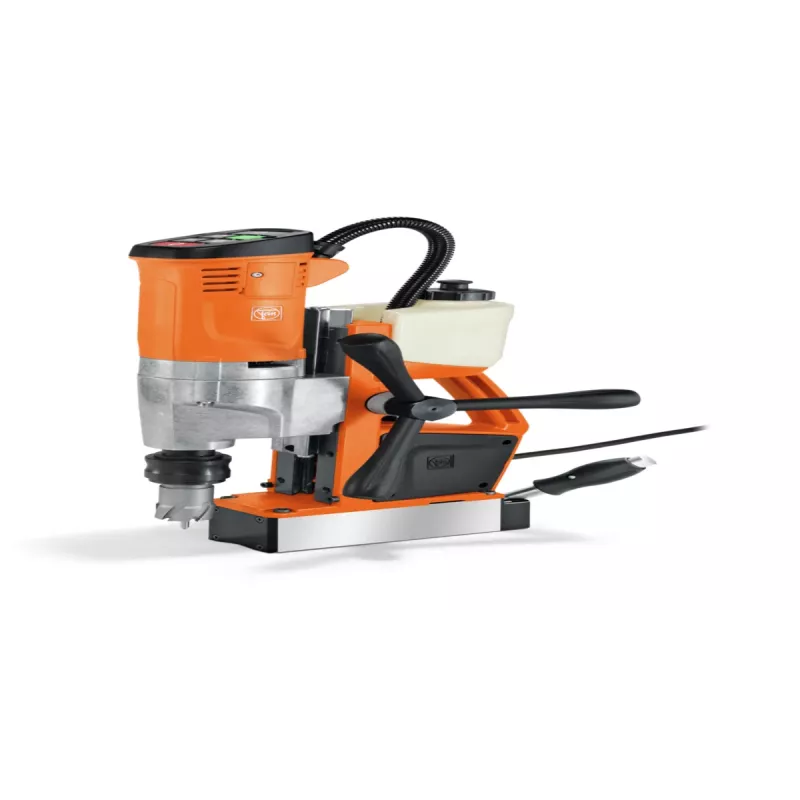

FEIN KBU 35 PQW jednorýchlostná magnetická jadrová vŕtačka 1010 W (72707261000)

The FEIN KBU 35 PQW stands apart from conventional magnetic drills by combining a compact 35 mm core drilling capacity with a robust 9000 N magnetic base and an exceptionally smooth single-speed gearbox. Unlike many machines in its class, it delivers precise, low-vibration drilling even in tight spaces, making it a reliable choice for steel construction, pipeline work, and industrial maintenance where accuracy and safety are non-negotiable.

Highlights

• Powerful 1010 W input motor with 550 W output for demanding drilling tasks
• Variable no-load speed from 130 to 520 rpm for optimal material adaptation
• High magnetic holding force of 9000 N ensures stable positioning on ferrous surfaces
• Weldon shank 19 mm (3/4") tool holder accepts a wide range of core bits and twist drills
• Integrated safety features: magnetic holding force display, tilt sensor, restart protection, and overload protection

In daily use

On the job site, the KBU 35 PQW proves its worth with a 135 mm stroke and a compact magnetic base measuring 170 x 80 mm, allowing access to confined areas. The 4 m cable provides ample reach, while the single gear stage simplifies operation and reduces maintenance. Whether drilling core holes up to 35 mm in diameter and 50 mm depth, using twist drills up to 16 mm, or tapping threads up to M12, this machine delivers consistent torque of 30 Nm under load. The intuitive controls and clear safety indicators help operators work confidently, even in overhead or vertical positions.

Full specifications

• Input power: 1010 W
• Output power: 550 W
• No-load speed: 130 - 520 rpm
• Max. core drill diameter: 35 mm
• Max. core drill depth: 50 mm
• Max. twist drill diameter: 16 mm
• Max. tapping diameter: M 12
• Tool holder: Weldon shaft 19 mm (3/4")
• Magnetic holding force: 9000 N
• Stroke: 135 mm
• Magnetic base dimensions: 170 x 80 mm
• Cable length: 4 m
• Voltage: 230 V
• Gear stages: 1
• Torque at load: 30 Nm

Final note

For professionals who demand a dependable magnetic core drill that balances power, precision, and safety, the FEIN KBU 35 PQW is an investment in long-term productivity and peace of mind.
