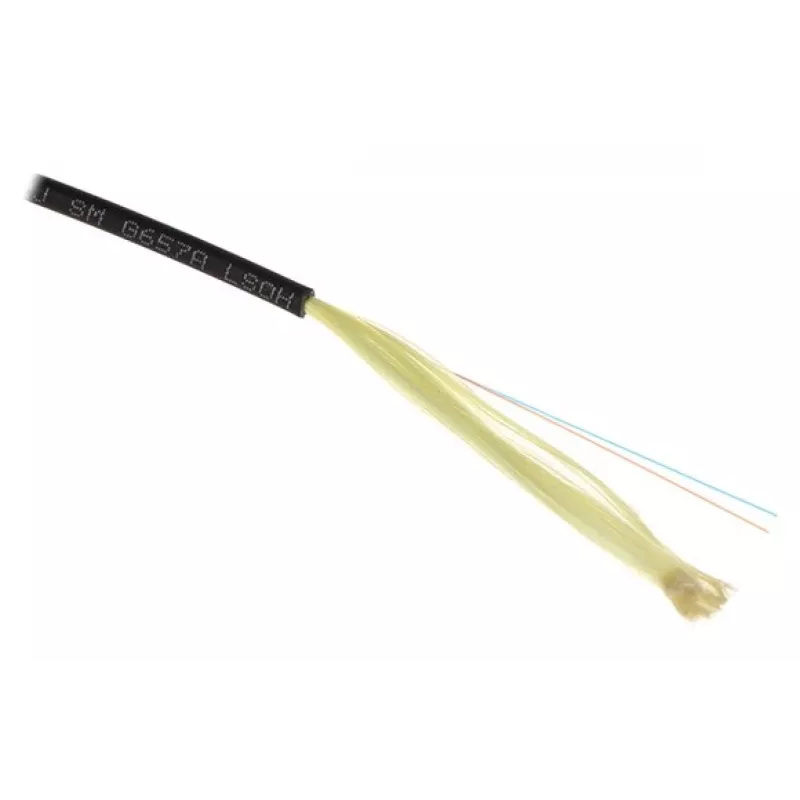

Fiber Optic Cable ULT FC E 2SM 1000 – 1000 m Single Mode OS2 Duplex FC/PC na FC/PC LSZH žltý

The ULT-FC.E-2SM/1000 is a high-performance fiber optic patch cable designed for reliable data transmission in telecommunications, data centers, LAN, and FTTx applications. This duplex single mode cable features two fibers with FC/PC connectors on both ends, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

This cable offers exceptional durability and performance with a LSZH (Low Smoke Zero Halogen) jacket, making it safe for use in confined spaces. The 9/125 µm core/cladding design complies with G.652D standard, supporting wavelengths of 1310 nm and 1550 nm with minimal attenuation. Its robust construction ensures stable operation in temperatures from -20°C to +70°C.

Suitable for

• Telecommunications networks
• Data center interconnects
• Local Area Networks (LAN)
• FTTx deployments
• High-speed data transmission requiring single mode fiber

Key specifications

• Cable Type: Fiber Optic Cable
• Fiber Type: Single Mode (OS2)
• Fiber Count: 2 (Duplex)
• Connector Type A: FC/PC
• Connector Type B: FC/PC
• Cable Length: 1000 m
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Jacket Material: LSZH
• Jacket Color: Yellow
• Wavelength Support: 1310 nm, 1550 nm
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 50 dB
• Fiber Standard: G.652D
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.22 dB/km
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure proper handling and installation to avoid bending beyond the minimum bend radius. This cable is ideal for long-distance, high-bandwidth applications where signal loss must be minimized.
