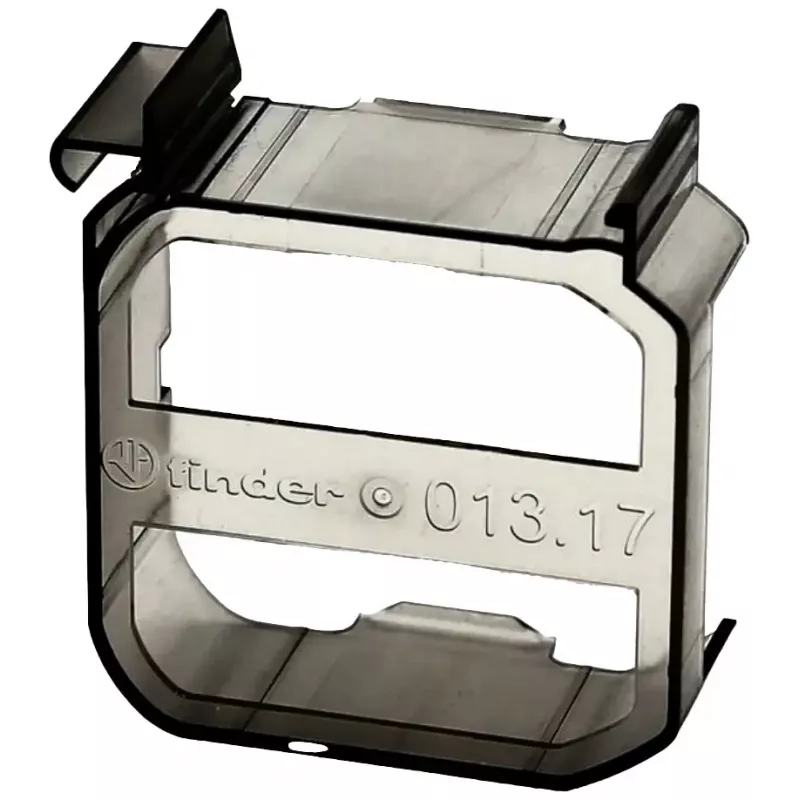

Finder 013.17 adaptér na DIN lištu pre Yesly spínacie a stmievačné aktory

The Finder 013.17 DIN rail adapter enables tool-free clip-on mounting of a single Yesly switching or dimming actuator onto a standard EN 60715 DIN rail, with a compact 1-module width of 17.5 mm.

Overview

Designed for residential, commercial, and industrial automation, this adapter bridges Yesly actuators to DIN rail installations. Its thermoplastic housing in light grey ensures durability, while the clip-on mechanism simplifies installation without additional tools.

What stands out

• Supports one Yesly switching or dimming actuator
• Tool-free clip-on mounting for quick installation
• Compact 1-module width (17.5 mm) saves rail space
• Operating temperature range from -20°C to +60°C
• Storage temperature range from -40°C to +85°C

Technical details

• Product type: DIN Rail Adapter
• Compatibility: Finder Yesly Switching and Dimming Actuators
• Mounting type: DIN Rail (EN 60715)
• Module width: 1 Module (17.5 mm)
• Material: Thermoplastic
• Colour: Light Grey
• Operating temperature: -20°C to +60°C
• Storage temperature: -40°C to +85°C
• Protection degree: IP20
• Height: 90 mm
• Depth from DIN rail: 60.8 mm

Our verdict

A straightforward and reliable mounting solution for integrating Yesly actuators into DIN rail setups, offering simple installation and robust temperature tolerance.
