Finder 100 W PTC vykurovanie rozvádzača na DIN lištu 230 V AC 7H.51.0.230.0100

100 W PTC heating element warms control cabinets fast, with double insulation and anodized aluminum housing for reliable convection heat.

Overview

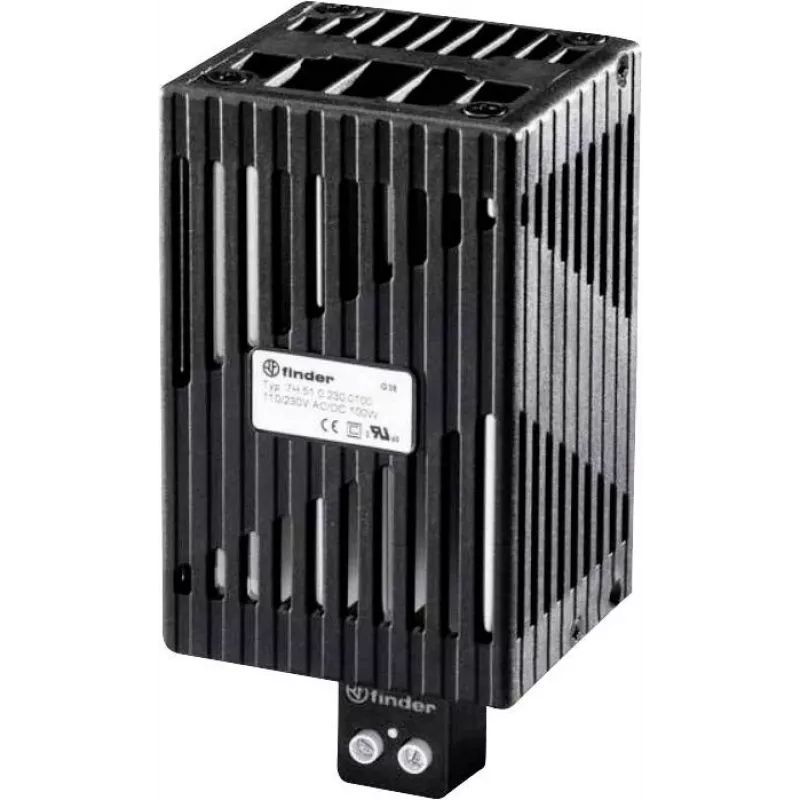

The Finder 7H.51.0.230.0100 is a 100 W enclosure heater for 35 mm DIN rail mounting. It operates on 230 V AC and uses a PTC heating element that self-regulates temperature for safe, efficient heating. The anodized aluminum profile promotes convection, distributing warmth evenly inside the cabinet to prevent condensation and low-temperature faults.

What stands out

• PTC element heats quickly and stabilizes without external control
• Double insulated for electrical safety
• Compact DIN rail mount fits standard control panels
• Anodized aluminum housing resists corrosion and improves heat transfer
• Wide operating range from -40 °C to +70 °C

Technical details

• Heating power: 100 W
• Operating voltage: 230 V AC
• Current consumption: 0.43 A
• Heating element: PTC
• Mounting: 35 mm DIN rail
• Connection: Screw terminals, max 2.5 mm²
• Housing material: Anodized aluminum profile
• Protection degree: IP20
• Operating temperature: -40 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Humidity: Max 90% RH non-condensing
• Minimum distance: 50 mm top/bottom, 20 mm sides
• Colour: Silver

Our verdict

A robust and efficient solution for maintaining stable temperatures in electrical enclosures, with the reliability of PTC self-regulation and a durable aluminum build.
