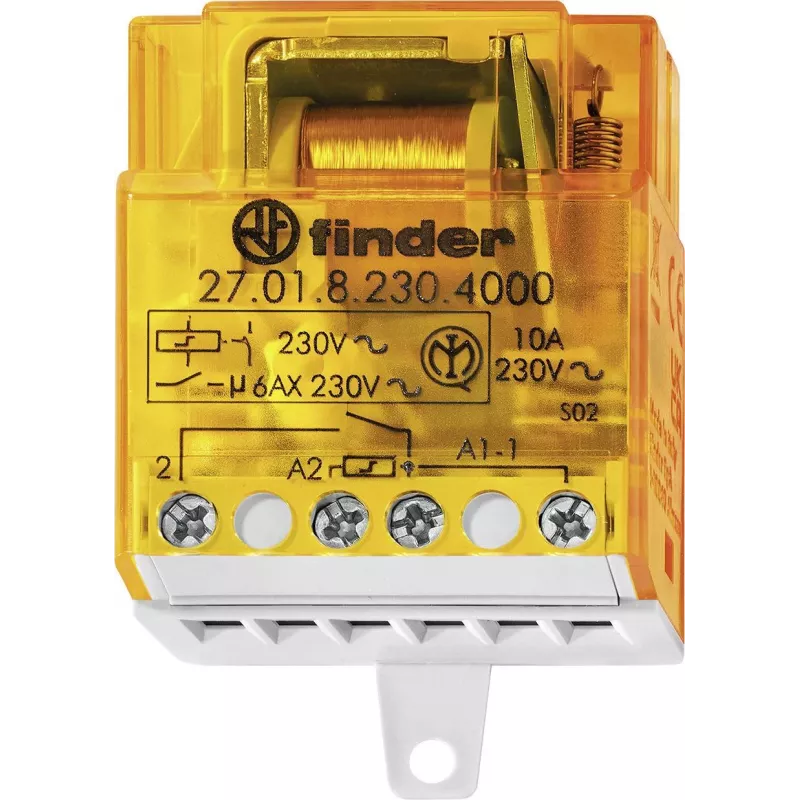

Finder 27 séria impulzné relé 1 NO 10 A 230 V AC DIN lišta 27.01.8.230.4000

Lighting circuits often need to be controlled from multiple points without complex wiring. The Finder 27.01.8.230.4000 impulse relay solves this by latching its 1 NO contact with each pulse from a pushbutton, so a single 230 V AC coil can switch a 10 A load on a DIN rail.

Who is it for

Electricians and panel builders who install stairwell lighting, corridor lighting, or any system where one or more pushbuttons must toggle a circuit from several locations.

Main features

• 1 NO contact rated 10 A / 250 V AC
• 230 V AC coil, 5 VA consumption
• DIN rail mounting (EN 60715), 17.5 mm wide
• Screw terminals for secure wiring
• AgNi contacts for long life

Specifications

• Contact configuration: 1 NO
• Rated current (AC1): 10 A
• Rated voltage: 250 V AC
• Coil voltage: 230 V AC
• Coil power: 5 VA
• Contact material: AgNi
• Mounting: DIN rail
• Module width: 17.5 mm
• Electrical life: 100,000 cycles
• Mechanical life: 1,000,000 cycles
• Operating temperature: -40 to +40 °C
• Terminal protection: IP20

Tips

Use with momentary pushbuttons; the relay toggles state on each pulse. Ensure coil voltage matches the control circuit.
