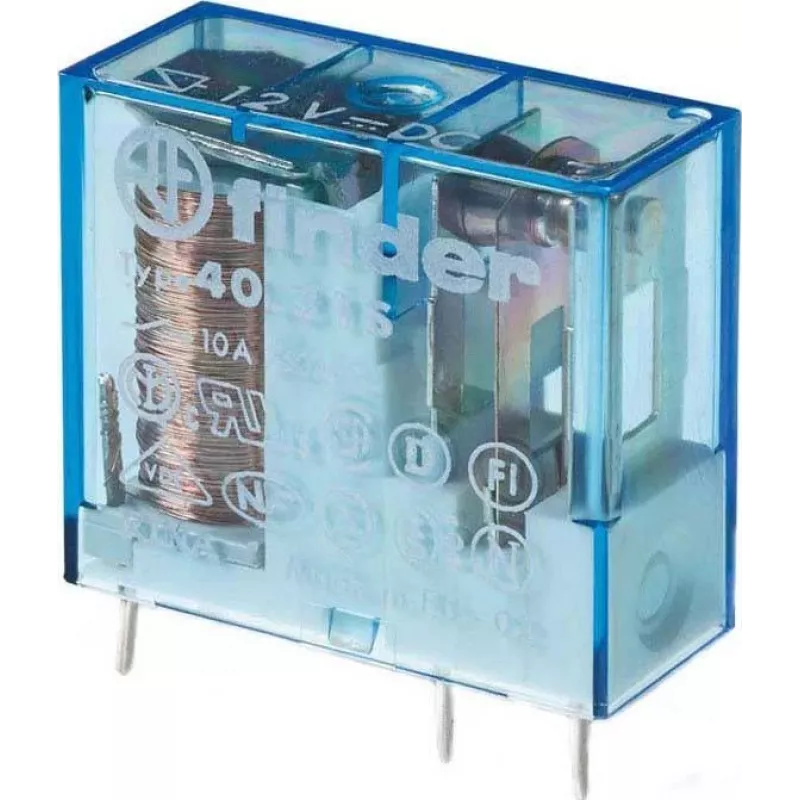

FINDER 40.31.9.048.0000 PCB/ zásuvné relé 48V AC 1 CO 10A

When a control system must switch a 10 A load with a 48 V AC coil, the FINDER 40.31.9.048.0000 delivers reliable single-pole changeover switching in a compact, flux-proof package. This relay fits both PCB and plug-in sockets, making it a flexible choice for industrial and building automation panels.

Who is it for

Panel builders and maintenance engineers who need a proven SPDT relay for general-purpose switching of resistive or inductive loads up to 2500 VA. Its 48 V AC coil suits control circuits with that voltage, while the AgNi contact material handles moderate inrush currents.

Main features

• 1 CO (SPDT) contact, rated 10 A / 250 V AC
• 48 V AC coil, 1.2 VA consumption
• PCB or plug-in mounting
• Flux-proof (RT I) construction
• Dielectric strength 5500 V AC between coil and contacts
• Operating temperature -40 to +85 °C

Specifications

• Contact configuration: 1 CO (SPDT)
• Rated current: 10 A
• Rated voltage: 250 V AC
• Coil voltage: 48 V AC
• Coil power: 1.2 VA
• Contact material: AgNi
• Mounting: PCB / plug-in
• Dielectric strength (coil-contact): 5500 V AC
• Dielectric strength (open contacts): 1000 V AC
• Operating temperature: -40 to +85 °C
• Mechanical life: 10 x 10^6 operations
• Electrical life: 100 x 10^3 operations at 10 A / 250 V AC
• Max switching power: 2500 VA
• Max switching voltage: 400 V AC
• Max switching current: 15 A peak
• Insulation resistance: 1000 MΩ

Tips

For plug-in use, pair with a compatible socket to simplify replacement. Ensure coil voltage matches the control circuit to avoid coil overheating or failure to operate.
