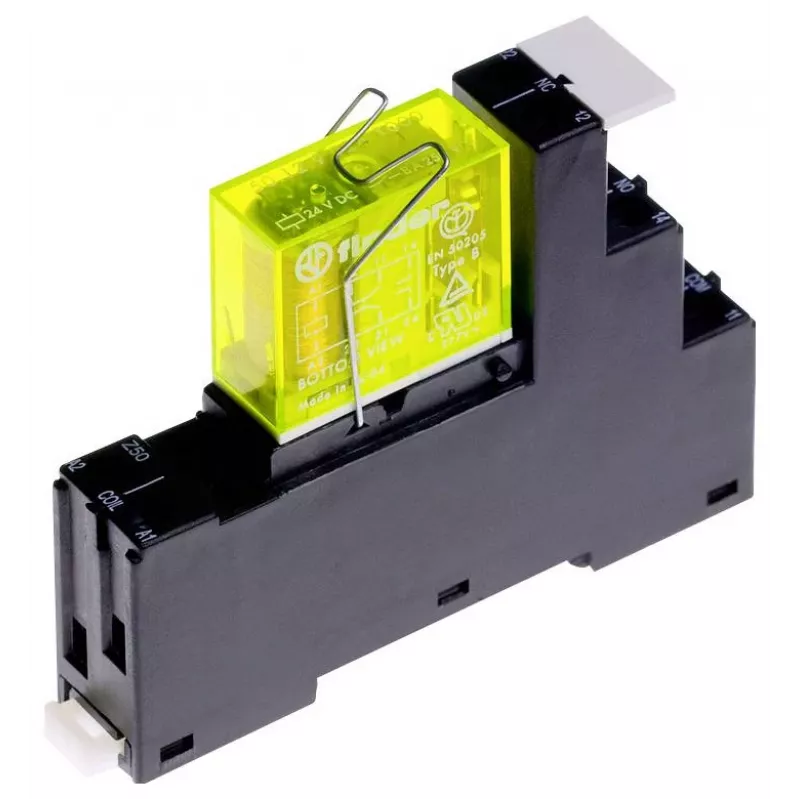

Finder 48.12.9.024.5050M relé 24V DC DPDT 8A zásuvné relé

In industrial control panels and automation systems, the Finder 48.12.9.024.5050M relay provides reliable switching for 24 V DC circuits. This plug-in relay features a DPDT (2 changeover) contact configuration and is rated for 8 A, making it suitable for controlling motors, valves, and other loads.

Key specifications

• Coil voltage: 24 V DC
• Contact configuration: DPDT (2 changeover)
• Rated current: 8 A
• Contact material: AgNi (silver nickel)
• Max switching voltage: 250 V AC
• Max switching power: 2000 VA (AC1), 240 W (DC1)
• Coil power consumption: 0.5 W
• Coil resistance: 1150 Ω
• Operating temperature: -40 to +70 °C
• Dielectric strength: 1000 V AC (coil-contacts, open contacts)
• Mechanical life: 10 x 10^6 operations
• Electrical life: 100 x 10^3 operations (rated load)
• Mounting: plug-in (for socket mounting)
• Protection degree: RT I (flux proof)

Why choose it

With its robust construction and high electrical endurance, this relay ensures long-term reliability in demanding environments. The flux-proof design protects against dust and flux ingress, extending service life.

Ideal use cases

• Industrial automation and control panels
• Switching of resistive and inductive loads
• Interface between PLCs and high-power circuits

Good to know

The relay is designed for plug-in mounting with a suitable socket (not included). It meets CE, VDE, UL, and CSA approvals.
