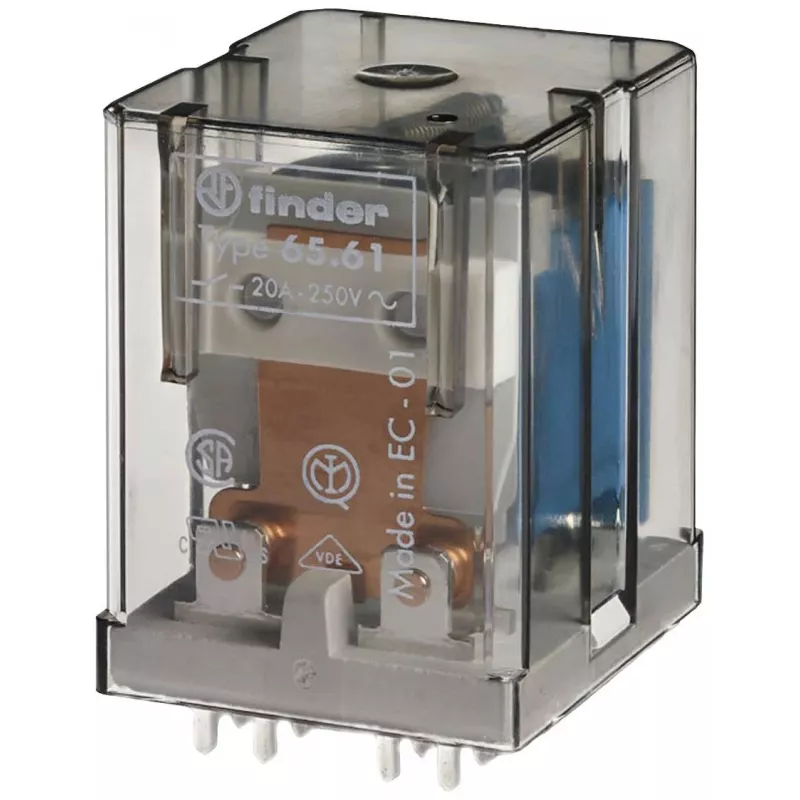

Finder 65.61.9.008.4300 výkonové PCB relé, 8 V DC cievka, 30 A, 1 NO

With a 30 A switching capability and a compact PCB-mount footprint, the Finder 65.61.9.008.4300 handles high-current loads up to 7500 VA while consuming just 0.9 W of coil power.

Overview

The Finder 65 Series Power PCB Relay offers a single normally open contact rated for 30 A at 250 V AC. Its 8 V DC coil makes it suitable for low-voltage control circuits in industrial and building automation applications. The AgSnO2 contact material ensures reliable switching under demanding conditions.

What stands out

• High switching capacity: 30 A at 250 V AC, up to 7500 VA
• Low coil consumption: only 0.9 W
• Dielectric strength of 4000 V AC between coil and contacts
• Wide operating temperature range: -40 to +70 °C
• Long mechanical life: 5 million operations

Technical details

• Coil voltage: 8 V DC
• Contact configuration: 1 NO (SPST-NO)
• Contact material: AgSnO2
• Max switching voltage: 400 V AC
• Dielectric strength (open contacts): 1000 V AC
• Electrical life at rated load: 100,000 operations
• Mounting: PCB through-hole
• Approvals: VDE, UL, CSA

Our verdict

A robust power relay for PCB designs requiring high current switching with low coil drive, backed by international approvals.
