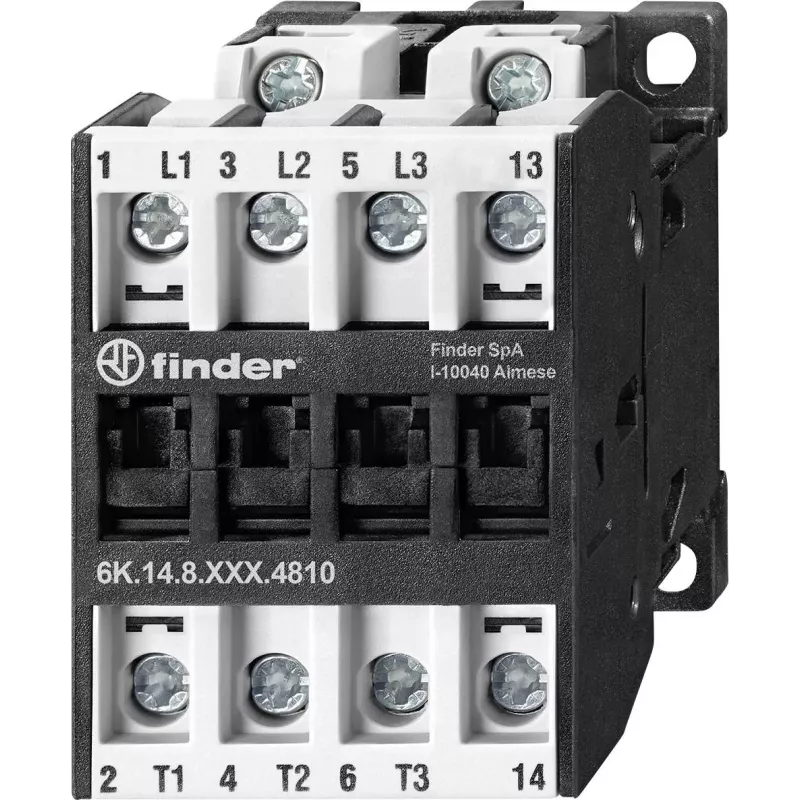

Finder 6K.14.8.230.4818 modulárny stýkač 4 NO 32 A 230 V AC

The Finder 6K.14.8.230.4818 modular contactor stands out with its four normally open contacts and 32 A rated current in a compact 2-module DIN rail housing. It handles AC-1 loads reliably, making it a solid choice for switching lighting, heating, and other resistive circuits in residential and commercial installations.

Highlights

• 4 NO contacts, 32 A rated current (AC-1)
• 230 V AC coil, 4.5 VA consumption
• DIN rail mount, 35 mm width (2 modules)
• Screw terminals, IP20 protection
• Mechanical life 1,000,000 cycles

In daily use

Installation is straightforward on a standard DIN rail. The screw terminals accept solid or stranded conductors, and the coil terminals are clearly marked. The contactor operates quietly and switches quickly, with no audible hum under normal load. It is suited for control circuits where a compact, high-current switching device is needed.

Full specifications

• Contact configuration: 4 NO
• Rated current (AC-1): 32 A
• Coil voltage: 230 V AC
• Number of poles: 4
• Module width: 2 modules (35 mm)
• Electrical life (AC-1): 100,000 cycles
• Mechanical life: 1,000,000 cycles
• Operating temperature range: -25 to +55 °C
• Degree of protection: IP20 (terminals), IP40 (housing)
• Rated insulation voltage (Ui): 400 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Power consumption (coil): 4.5 VA
• Terminal type: Screw terminals
• Standards: EN 61095, IEC 61095

Final note

This contactor is a reliable choice for modular switching applications where a 32 A, 4-pole NO device is required.
