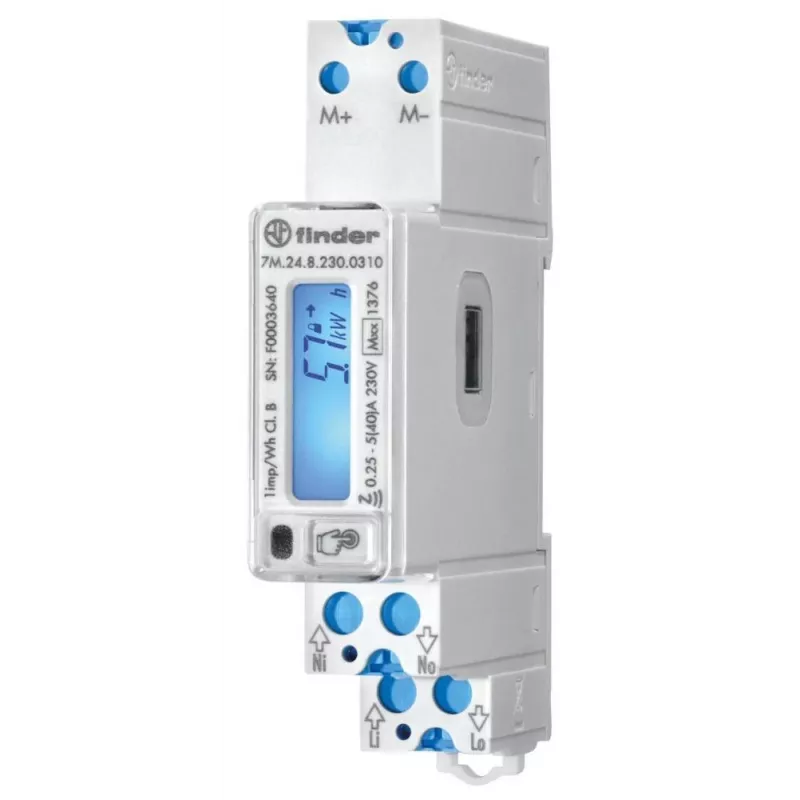

Finder 7M.24.8.230.0310 Jednofázový digitálny striedavý elektromer 40 A MID vyhovujúci

Single-phase digital AC energy meter for direct connection up to 40 A, with MID compliance and S0 pulse output for remote monitoring.

Advantages

MID compliant (Module B + D) for billing applications, Class B accuracy, clear LCD with blue backlight, compact 1-DIN module design.

Suitable for

• Sub-metering in residential and commercial buildings
• Energy monitoring in distribution boards
• Billing applications requiring MID certification

Key specifications

• Nominal voltage: 230 V AC
• Frequency: 50/60 Hz
• Max current: 40 A
• Accuracy class: B (EN 50470-1/3)
• Display: LCD, 6+1 digits, blue backlight
• Output: S0 pulse, configurable rate
• Mounting: DIN rail, 1 module
• Operating temperature: -25 to +55 °C
• Front protection: IP51; terminals: IP20

Recommendations

Ideal for energy management systems requiring reliable, MID-approved single-phase metering with pulse output.
