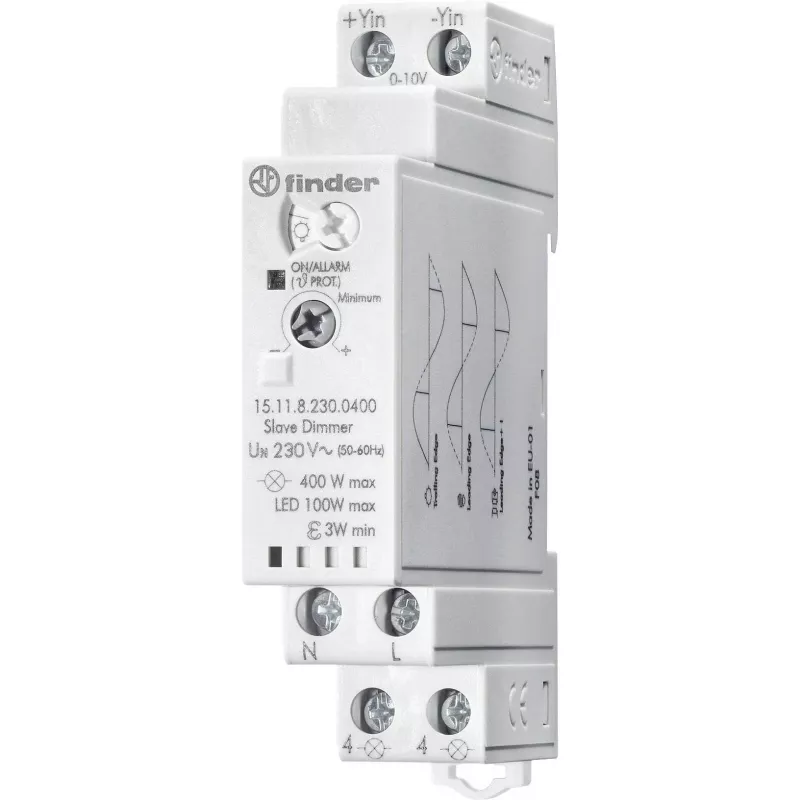

Finder elektronický stmievač slave jednotka 230V AC 400W 15.11.8.230.0400

Capable of handling up to 400W of resistive load, the Finder 15.11.8.230.0400 is a slave dimmer unit designed for integration with a master dimmer in flush-mount installations. It operates on 230V AC at 50/60Hz and supports resistive, inductive, capacitive, and dimmable LED loads with automatic phase-cut detection.

Overview

This electronic dimmer slave unit provides a single channel of dimming control for a wide range of load types. It requires an external master dimmer for operation and is intended for in-wall flush mounting. Screw terminals ensure secure wiring connections.

What stands out

• Supports dimmable LED loads from 3W to 400W
• Automatic detection of leading or trailing edge phase-cut dimming
• Built-in overload, short-circuit, and thermal protection
• Halogen-free thermoplastic housing

Technical details

• Operating voltage: 230V AC, 50/60Hz
• Maximum load: 400W (resistive), 400VA (inductive/capacitive), 400W (dimmable LED)
• Minimum dimmable LED load: 3W
• Control type: Slave unit (requires external master dimmer)
• Mounting: Flush mounting (in-wall box)
• Connection: Screw terminals
• Number of channels: 1
• Operating temperature: -10 to +50 °C
• Protection degree: IP20
• Housing material: Thermoplastic, halogen-free

Our verdict

A reliable slave dimmer for professional installations, offering versatile load compatibility and robust protection in a compact flush-mount design.
