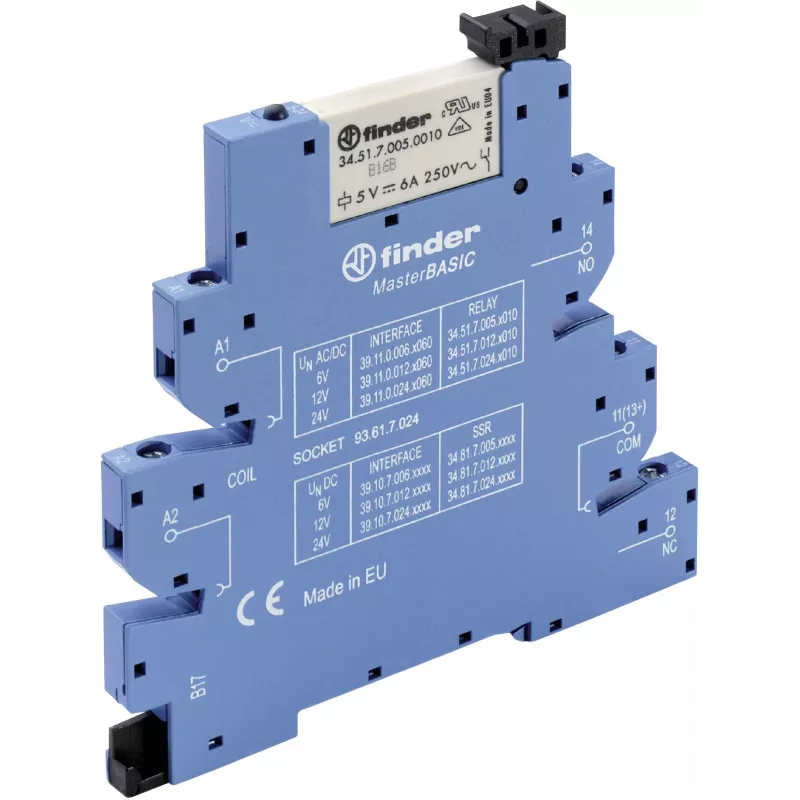

Finder EMR Koppel relé 39.11.0.024.0060 Master BASIC 24 V DC 1 CO 6 A

The Finder EMR-Koppelrelais 39.11.0.024.0060 Master BASIC is a high-quality electromechanical interface relay from the renowned Finder Series 39. Designed for reliable switching in industrial and building automation applications, this relay offers a compact plug-in solution with reinforced insulation and a 6 kV surge withstand capability.

Advantages

This relay provides excellent electrical isolation between coil and contacts, ensuring safe operation in sensitive circuits. Its low coil power consumption of only 0.3 W makes it energy-efficient, while the silver nickel (AgNi) contacts guarantee long electrical life even under frequent switching. The flux-proof protection (RT II) allows for use in demanding environments.

Suitable for

• Industrial control panels
• Building automation systems
• PLC interface applications
• HVAC control
• Lighting control systems

Key specifications

• Relay type: Electromechanical interface relay
• Coil voltage: 24 V DC
• Contact configuration: 1 CO (SPDT)
• Rated current: 6 A
• Rated voltage (AC): 250 V AC
• Contact material: AgNi (Silver Nickel)
• Dielectric strength (coil-contact): 6 kV (1.2/50 µs)
• Operating temperature: -40 to +70 °C
• Coil power consumption: 0.3 W
• Protection degree: RT II (Flux proof)
• Electrical life (at rated load): 100,000 cycles
• Mechanical life: 10,000,000 cycles
• Mounting type: Plug-in (for 93 Series sockets)
• Approvals: CE, cURus, VDE, RINA, EAC, IMQ, GOST
• Insulation type: Reinforced insulation
• Ambient humidity: 5 to 85% RH (no condensation)
• Max. switching power (AC1): 1500 VA
• Min. switching load: 300 mW (5V/5mA)
• Terminal type: Plug-in pins

Recommendations

For optimal performance, pair this relay with Finder 93 Series sockets. Ensure the coil voltage matches your control signal (24 V DC). Suitable for use in circuits requiring reinforced insulation and high surge immunity.
