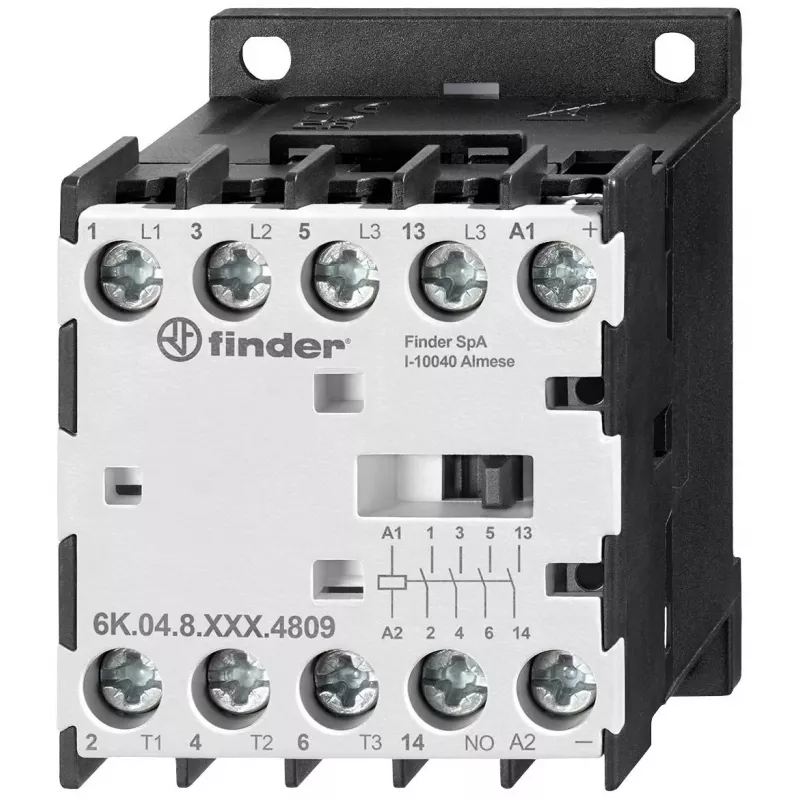

Finder mini stýkač pre priemysel 5,5kW cievka 230V AC (6K.04.8.230.4312)

This Finder 6K series mini industrial contactor delivers a compact switching solution for motor loads up to 5.5 kW, with four normally open main poles and a 230 V AC coil. Its 35 mm DIN rail or screw mounting and screw terminals simplify installation in control panels where space is limited.

Highlights

• Rated operational power of 5.5 kW at 400 V AC (AC-3) for reliable motor control
• Four main poles (4 NO) with a rated operational current of 9 A at AC-3, 400 V AC
• Coil voltage: 230 V AC, 50/60 Hz, with low power consumption of 2.5 VA
• Mechanical life of 10 million operations and electrical life of 100,000 operations (AC-3)
• Compact design for DIN rail or screw mounting, IP20 protection

In daily use

The contactor handles switching of three-phase motors and other loads with a rated operational current of 20 A in AC-1 duty. Its screw terminals accept a range of conductor sizes, and the operating temperature range from -25 to +70 °C ensures performance in demanding environments.

Full specifications

• Number of main poles: 4
• Main contact configuration: 4 NO
• Rated operational power (AC-3, 400 V AC): 5.5 kW
• Rated operational power (AC-3, 230 V AC): 4 kW
• Rated operational current (AC-3, 400 V AC): 9 A
• Rated operational current (AC-1, 400 V AC): 20 A
• Coil voltage: 230 V AC
• Coil frequency: 50/60 Hz
• Coil power consumption: 2.5 VA
• Mounting type: 35 mm DIN rail / screw
• Terminal type: screw terminals
• Electrical life (AC-3): 100,000 operations
• Mechanical life: 10,000,000 operations
• Operating temperature range: -25 to +70 °C
• Protection degree: IP20

Final note

With its high mechanical endurance and compact footprint, this contactor is a dependable choice for industrial automation and building control applications.
