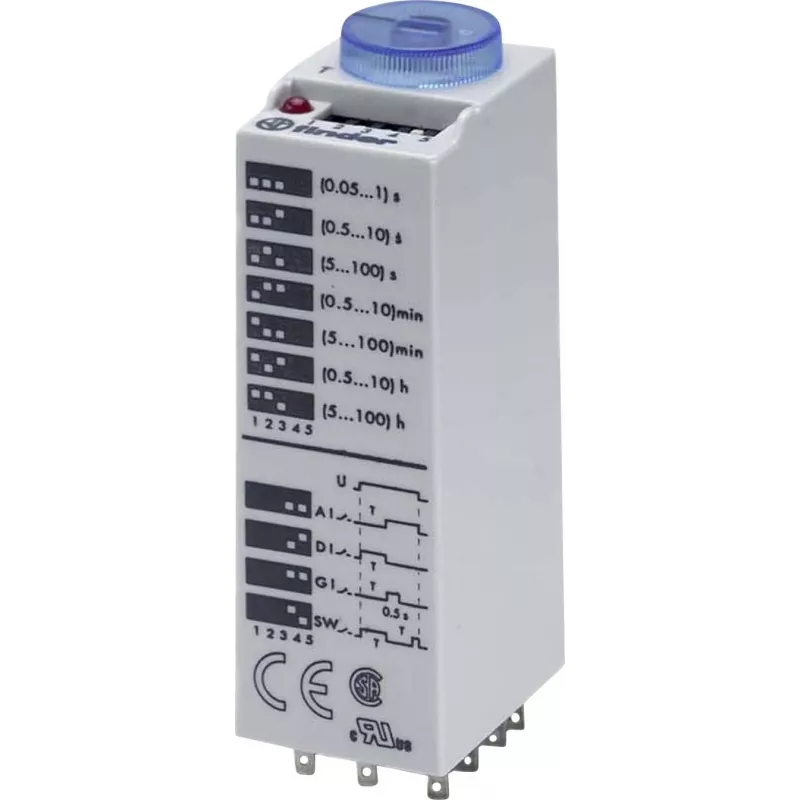

Finder multifunkčné časové relé 85.03.0.024.0000, 24V AC/DC, 3 CO, 16 funkcií, DIN lišta

Multifunction timer relay with 16 selectable functions and 3 changeover contacts, designed for industrial automation and control applications. The 85.03.0.024.0000 offers a wide time range from 0.05 seconds to 100 hours across 8 selectable scales, making it suitable for precise timing control in various circuits.

Advantages

Compact 35 mm width (2 modules) saves space on DIN rail. LED indicators provide clear status of supply voltage and output. High contact rating of 10 A / 250 V AC allows direct switching of moderate loads. Wide supply voltage of 24 V AC/DC ensures compatibility with common control systems.

Suitable for

• Industrial automation timing functions
• HVAC control systems
• Lighting control
• Motor control panels
• Process control equipment

Key specifications

• Product type: Multifunction timer relay
• Number of functions: 16
• Time range: 0.05 s to 100 h
• Time scales: 8 (0.05s-1s, 0.5s-10s, 5s-100s, 0.5min-10min, 5min-100min, 0.5h-10h, 5h-100h, 0.5d-10d)
• Supply voltage: 24 V AC/DC
• Output configuration: 3 changeover contacts (3 CO / 3 SPDT)
• Contact rating (resistive): 10 A / 250 V AC
• Mounting type: 35 mm DIN rail
• Width: 35 mm (2 modules)
• Operating temperature: -20 °C to +50 °C
• Protection degree (terminals): IP20
• Protection degree (front panel): IP40
• Power consumption (AC): 1.5 VA
• Power consumption (DC): 1.5 W
• Electrical life (rated load): 100,000 cycles
• Mechanical life: 10,000,000 cycles
• Terminal type: Screw terminals
• Indicators: LED for supply voltage and output status
• Approvals: CE, cURus, EAC, RINA, IMQ, VDE

Recommendations

Ideal for applications requiring reliable, multi-function timing control with high switching capacity in a compact DIN rail module.
