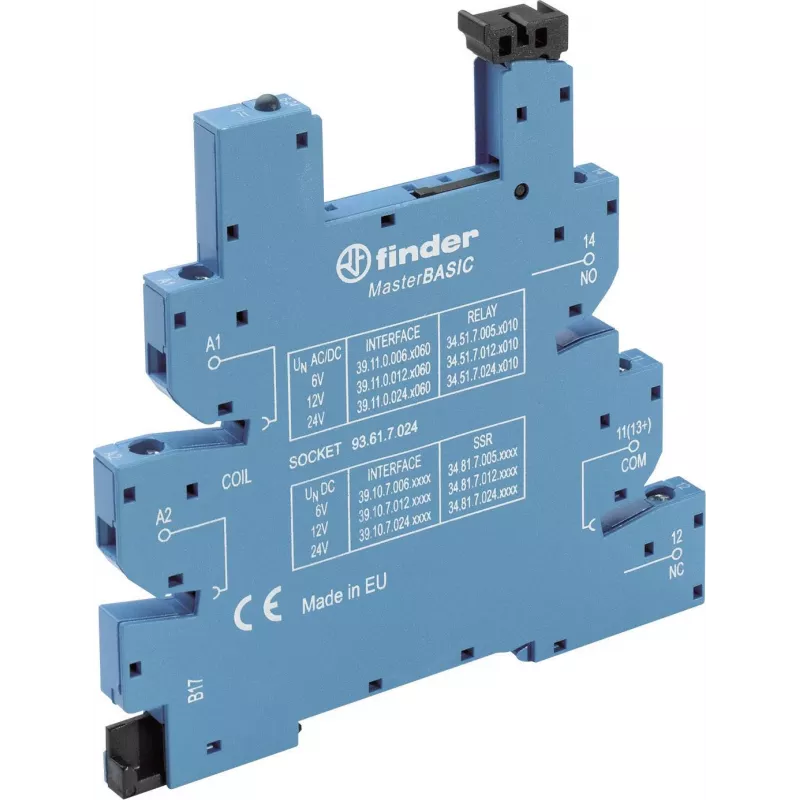

Finder reléová pätica s pridržiavacou sponou, LED a EMC potlačením, 93.61.7.024

The Finder 93.61.7.024 relay socket stands out by integrating a retaining clip, LED status indicator, and EMC suppression circuit directly into the socket, simplifying wiring and reducing panel clutter compared to separate components. Designed for Finder 60 Series relays with 3 CO contacts and 11 pins, it ensures a secure and reliable connection in industrial control applications.

Highlights

• Integrated LED indicator for quick status monitoring
• Built-in EMC suppression circuit (diode for DC / varistor for AC) to protect against voltage spikes
• Metal retaining clip secures the relay, preventing accidental disconnection
• Versatile mounting: DIN rail (EN 60715) or panel mount
• Screw terminals accept solid or stranded wires up to 2.5 mm²
• Wide operating temperature range: -40 to +70 °C

In daily use

This socket streamlines installation and maintenance. The LED provides immediate visual confirmation of coil energization, while the suppression circuit absorbs transients, extending relay life. The retaining clip holds the relay firmly even in high-vibration environments. With a 10 A rated current and 6 kV dielectric strength, it handles demanding loads safely.

Full specifications

• Product Type: Relay Socket
• Compatible Relay Series: Finder 60 Series (e.g., 60.12, 60.13)
• Number of Poles: 3-pole (3 CO contacts)
• Number of Pins: 11 pins
• Mounting Type: DIN Rail (EN 60715) or Panel Mount
• Terminal Type: Screw Terminals
• Integrated Features: LED Indicator, EMC Suppression Circuit
• Suppression Circuit Type: Diode (for DC coils) / Varistor (for AC coils)
• Nominal Voltage for Suppression: 24 V (AC/DC)
• Max Rated Current: 10 A
• Dielectric Strength (Coil-Contacts): 6 kV (1.2/50 µs)
• Operating Temperature Range: -40 to +70 °C
• Protection Degree: IP20
• Housing Material: Thermoplastic
• Retaining Clip: Included (Metal)
• Wire Size (Solid): 1 x 0.5 to 2.5 mm² / 2 x 0.5 to 1.5 mm²
• Wire Size (Stranded): 1 x 0.5 to 2.5 mm² / 2 x 0.5 to 1.5 mm²
• Torque for Screw Terminals: 0.5 Nm
• Approvals: CE, UL, CSA, VDE

Final note

The Finder 93.61.7.024 is a reliable choice for control panels requiring robust relay mounting with integrated protection and diagnostics.
