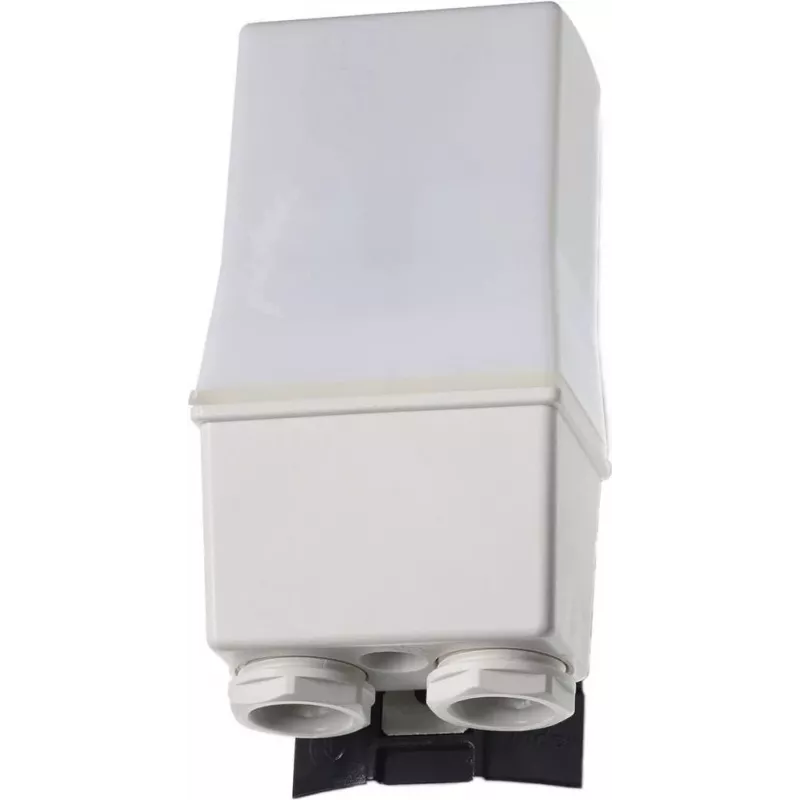

Finder súmrakový spínač Compact 150 lx 1 NO 12 A 230 V AC IP54 séria 10 104182300000

With a fixed 150 lux switching threshold and a 12 A relay output, this compact twilight switch handles up to 3000 VA of lighting load directly from a 230 V AC supply.

Overview

The Finder Series 10 twilight switch automatically turns connected lighting on at dusk and off at dawn. Its integrated light sensor measures ambient brightness and triggers the built-in 1 NO contact when the level falls below 150 lux. The device is designed for wall or surface mounting and connects via screw terminals.

What stands out

• Fixed 150 lux switching threshold for reliable dusk-to-dawn operation
• 12 A / 3000 VA switching capacity for direct control of lighting circuits
• IP54 protection for outdoor or damp locations
• Wide operating temperature range from -30°C to +70°C
• UV resistant thermoplastic housing for long-term durability

Technical details

• Supply voltage: 230 V AC (50/60 Hz)
• Contact configuration: 1 NO
• Rated current (AC1): 12 A
• Switching threshold: 150 lux (fixed)
• Switching delay: 15-30 seconds (ON/OFF)
• Power consumption: 1 VA
• Dielectric strength: 2 kV AC (between coil and contacts)
• Mounting: wall / surface
• Connection: screw terminals
• Protection degree: IP54
• Operating temperature: -30°C to +70°C
• Housing material: UV resistant thermoplastic

Our verdict

A robust and straightforward twilight switch for automatic lighting control, with a fixed 150 lux threshold and high switching capacity in a compact, weather-resistant housing.
