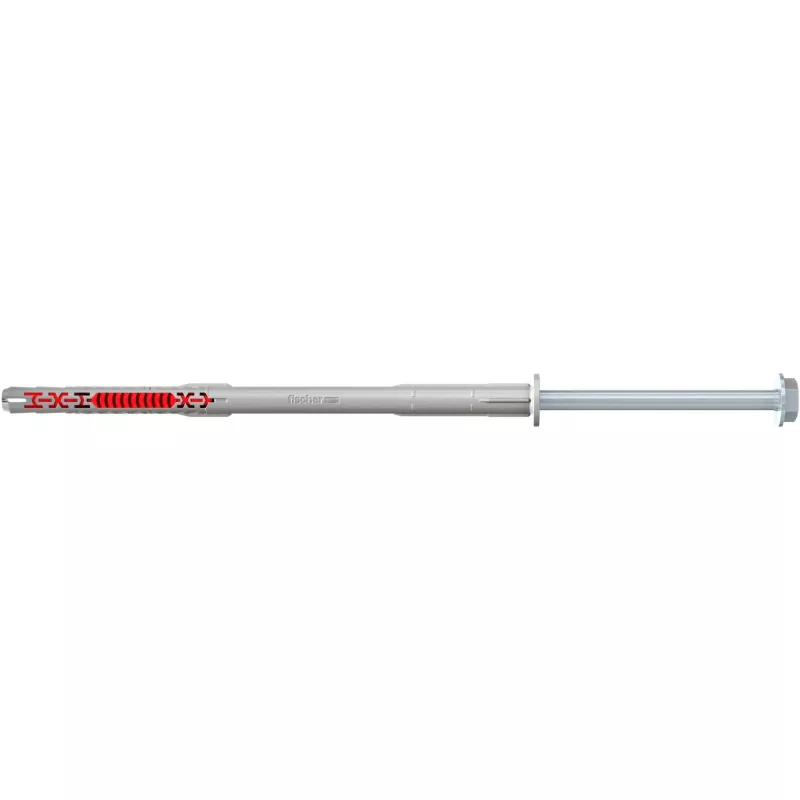

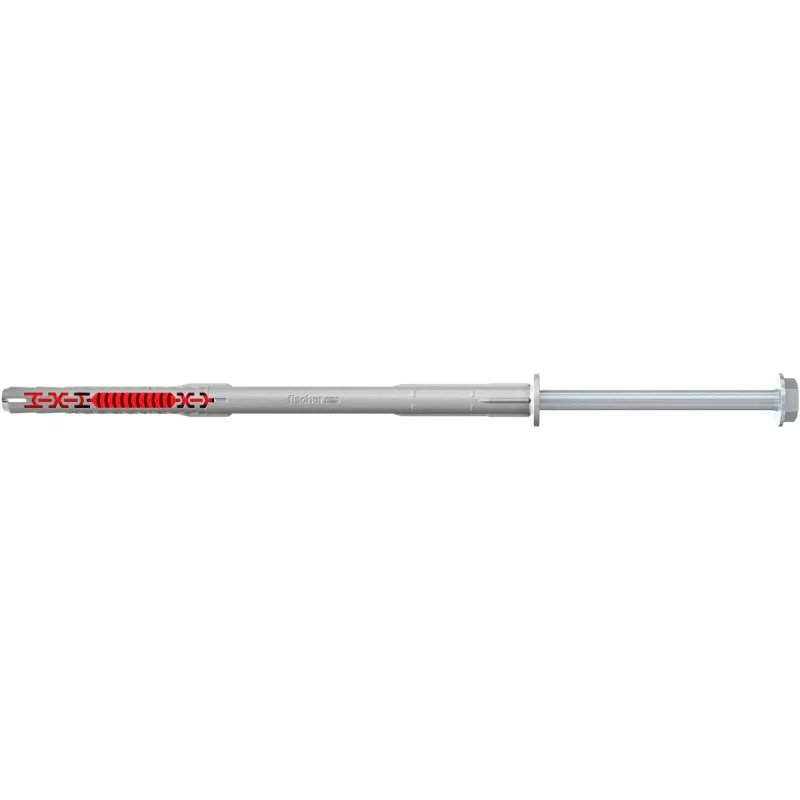

Fischer DuoXpand 10x230 FUS 50 ks

The Fischer DuoXpand 10x230 FUS is a high-performance multi-zone expansion plug designed for through-fixing of window and door frames, squared timbers, and facade substructures. With a plug diameter of 10 mm and a length of 230 mm, this set includes 50 pieces, making it ideal for professional and DIY applications. The plug is made of high-quality nylon, while the screw is zinc-plated steel with a Torx T40 drive and countersunk head. Suitable for concrete, solid brick, perforated brick, aerated concrete, and lightweight concrete, it offers reliable anchoring with ETA approval.

Advantages

The DuoXpand technology ensures multi-zone expansion for secure hold in various building materials. The zinc-plated steel screw provides corrosion protection, and the plug is temperature resistant from -40°C to +80°C. The through-fixing installation method allows for easy and precise mounting.

Suitable for

• Window and door frames
• Squared timbers
• Facade substructures
• Concrete, solid brick, perforated brick, aerated concrete, lightweight concrete

Key specifications

• Plug diameter: 10 mm
• Plug length: 230 mm
• Screw head type: Countersunk head
• Screw drive type: Torx T40
• Plug material: High-quality nylon
• Screw material: Zinc-plated steel
• Min. drill hole depth: 240 mm
• Min. anchorage depth: 70 mm
• Max. usable length: 160 mm
• Drill bit diameter: 10 mm

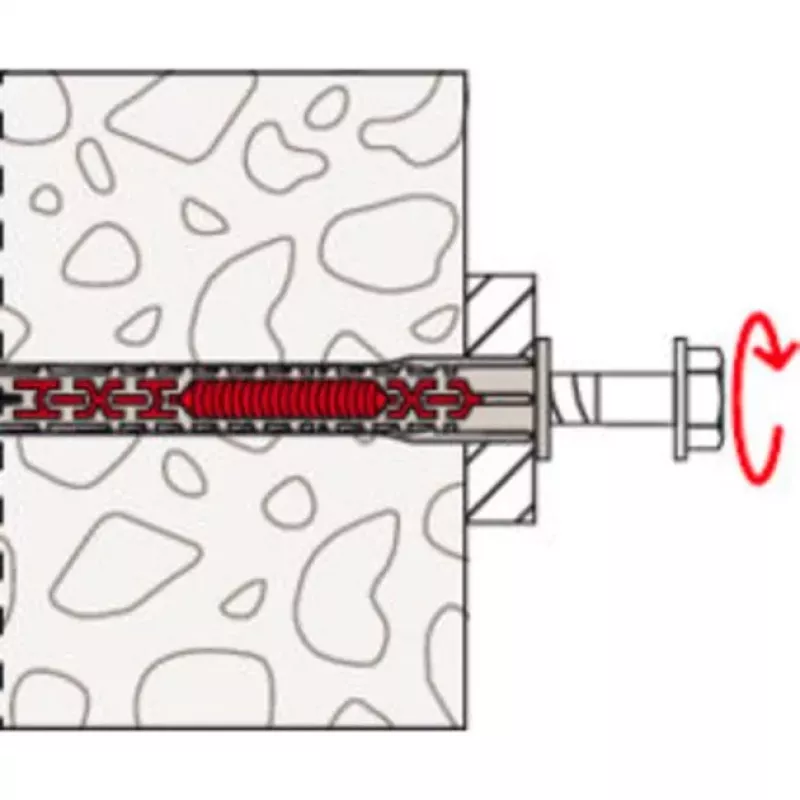

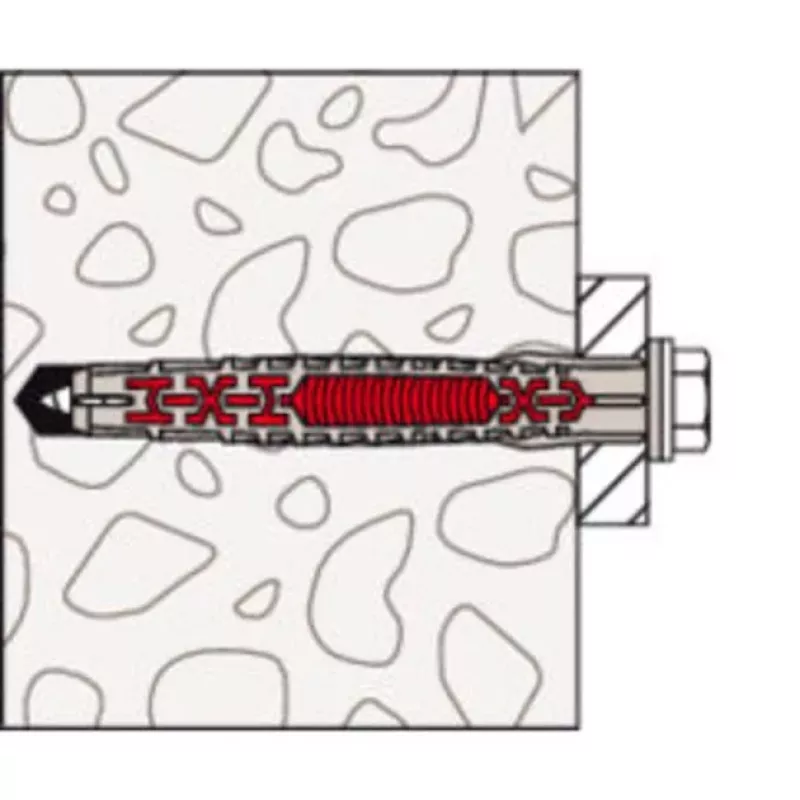

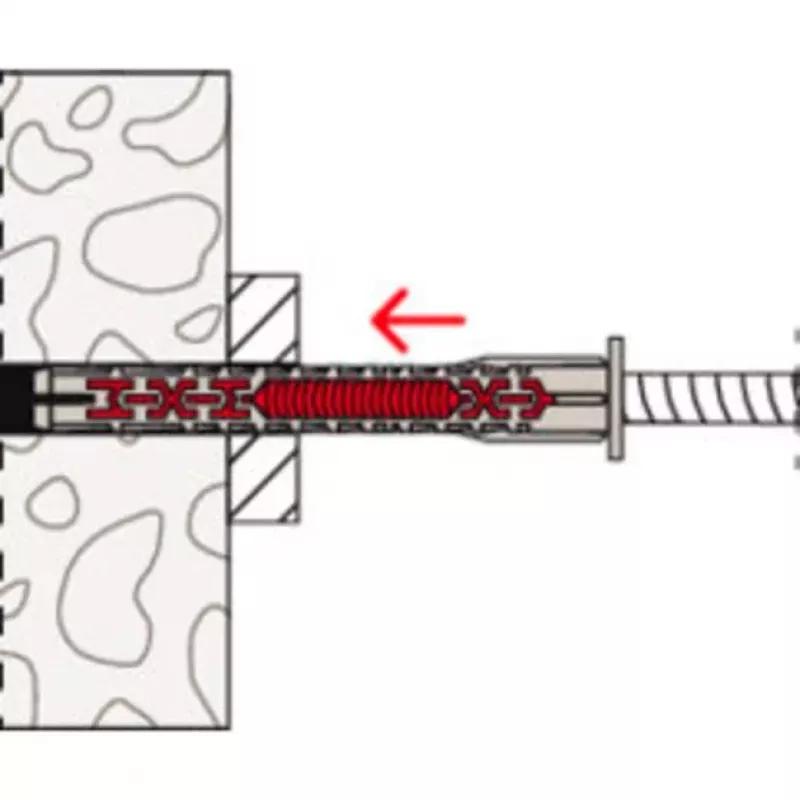

• Installation method: Through-fixing
• Approvals: ETA (European Technical Assessment)
• Expansion technology: DuoXpand (multi-zone expansion)
• Corrosion protection: Zinc-plated
• Temperature resistance: -40°C to +80°C
• Pack quantity: 50 pieces

Recommendations

For optimal performance, ensure the drill hole depth is at least 240 mm and anchorage depth is at least 70 mm. Use a 10 mm drill bit. Suitable for use in concrete and masonry.
