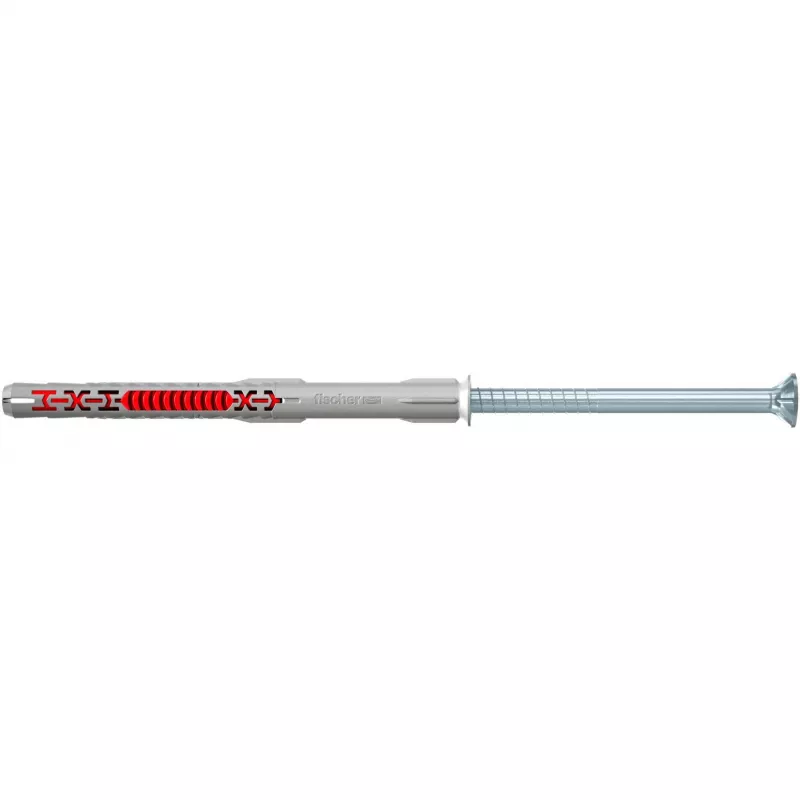

Fischer DuoXpand 8x120 T 50 ks rámové upevňovacie hmoždinky

The Fischer DuoXpand 8x120 T is a high-performance frame fixing plug designed for through-fixing applications. With its innovative two-zone expansion technology, it ensures secure anchoring in solid and perforated building materials. This pack contains 50 pieces, ideal for professional installers and DIY enthusiasts.

Advantages

DuoXpand technology provides two expansion zones for optimal load distribution and secure hold in both solid and hollow substrates. The plug is made from high-quality nylon (PA6) offering excellent durability and temperature resistance from -40°C to +80°C. Suitable for pre-positioned and through-fixing mounting methods, it simplifies installation and saves time.

Suitable for

• Concrete
• Solid brick
• Perforated brick
• Aerated concrete
• Sand-lime brick
• Natural stone

Key specifications

• Plug diameter: 8 mm
• Plug length: 120 mm
• Drill hole diameter: 8 mm
• Minimum drill hole depth: 130 mm
• Max. usable length (t_fix): 70 mm
• Screw diameter: 5.0 - 6.0 mm
• Material: Nylon (Polyamide PA6)
• Colour: Grey
• Quantity per pack: 50 pieces
• Approvals: ETA-19/0503

Recommendations

For best results, use with wood or chipboard screws. Ensure drill hole depth meets minimum requirement. Suitable for window and door frames, squared timbers, and facade substructures.
