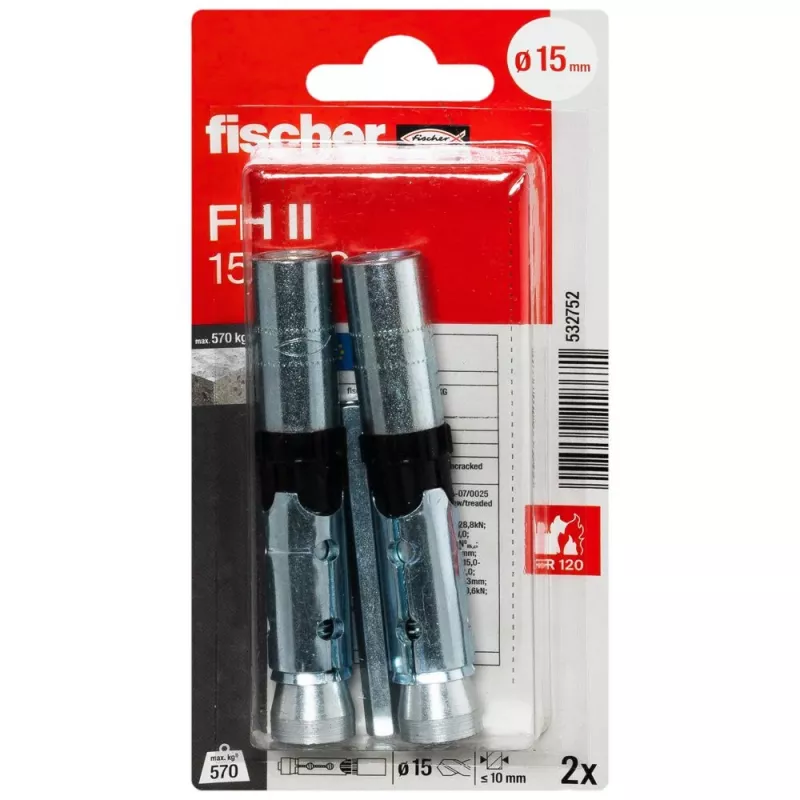

Fischer FH II 15/M10 I K NV vysokovýkonná kotva, 1 sada (532752)

Heavy-duty fastening in cracked or non-cracked concrete demands an anchor that resists high loads and corrosion. The Fischer FH II 15/M10 I K NV highbond anchor with internal thread and countersunk sleeve delivers that reliability, even in demanding environments.

Who is it for

This anchor is built for structural connections, railings, machinery, and consoles where a flush, high-strength fixing is required. It suits professionals working with concrete grades C20/25 to C50/60 who need a fire-resistant and corrosion-resistant solution.

Main features

• Internal thread M10 with countersunk sleeve for flush mounting
• Stainless steel A4 (1.4401 / AISI 316) for high corrosion resistance
• Approved for cracked and non-cracked concrete
• Fire resistance rating R 120
• Pre-positioned installation
• European Technical Assessment ETA-10/0352

Specifications

• Anchor type: Highbond anchor, internal thread, countersunk sleeve
• Material: Stainless steel A4
• Thread size: M10
• Drill hole diameter: 15 mm
• Minimum drill hole depth: 70 mm
• Minimum anchorage depth: 60 mm
• Anchor length: 60 mm
• Wrench size: 17 mm
• Quantity per pack: 1 piece

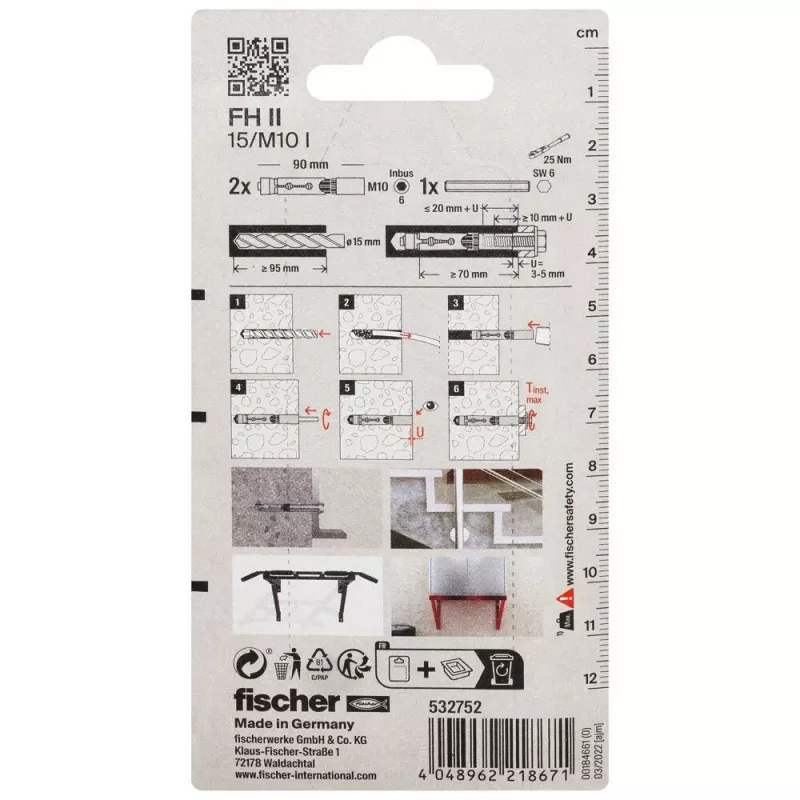

Tips

Use a drill bit with a diameter of 15 mm and ensure the hole depth is at least 70 mm. The anchor is installed pre-positioned; follow the ETA guidelines for torque settings and edge distances to achieve the full load capacity.
