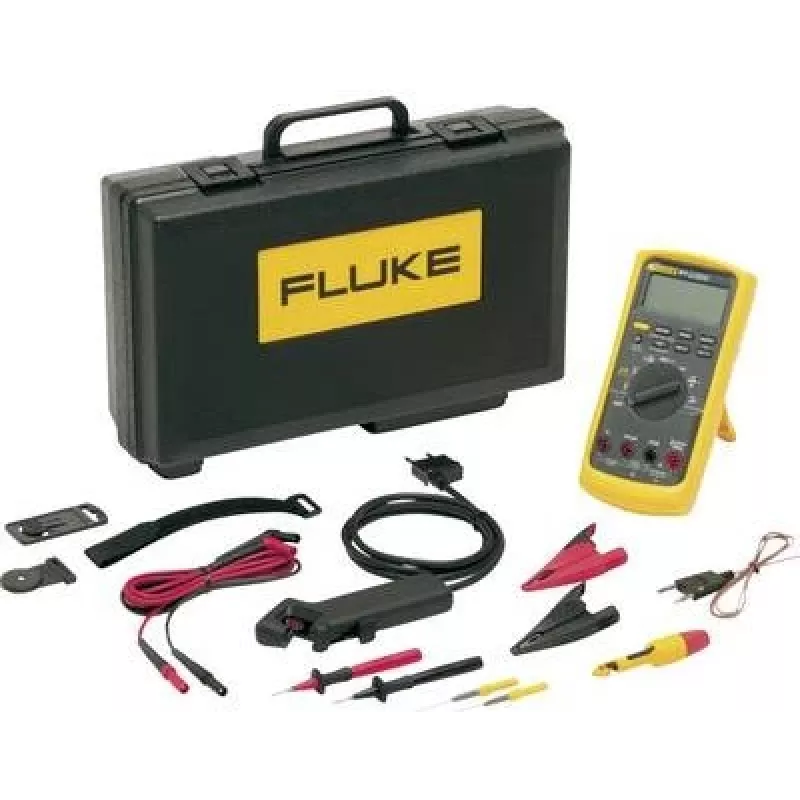

Fluke 88V/A automobilový multimeter, CAT III 1000 V, CAT IV 600 V, 20 000 counts 2117440

The Fluke 88V/A digital multimeter is built for automotive diagnostics, combining True RMS AC voltage and current measurement with dedicated functions like RPM, pulse width, dwell angle, and duty cycle. Its 20,000-count display and 0.1% basic DC accuracy deliver precise readings in demanding environments.

Advantages

Rated CAT III 1000 V and CAT IV 600 V, this meter handles high-energy circuits safely. The backlit display and Min/Max/Average with 250 µs peak capture help you catch intermittent faults. A 9 V battery provides up to 400 hours of operation.

Suitable for

• Automotive electrical system troubleshooting
• Hybrid and electric vehicle safety checks
• Industrial maintenance and field service

Key specifications

• Display: 20,000 counts, backlit
• DC voltage: 0.1 mV to 1000 V (±0.1% basic accuracy)
• AC voltage: 0.1 mV to 1000 V, True RMS
• DC/AC current: 0.01 mA to 10 A (20 A for 30 s)
• Resistance: 0.1 Ω to 50 MΩ
• Capacitance: 1 nF to 9999 µF
• Frequency: 0.5 Hz to 200 kHz
• Temperature: -200 °C to 1090 °C (K-type thermocouple)
• Automotive functions: RPM, ms pulse width, duty cycle, dwell angle
• Safety: CAT III 1000 V, CAT IV 600 V
• Power: 9 V battery (NEDA 1604A / IEC 6LR61), up to 400 h

Recommendations

Pair with a K-type thermocouple for temperature measurements and use the Min/Max/Average function to monitor signals over time.
