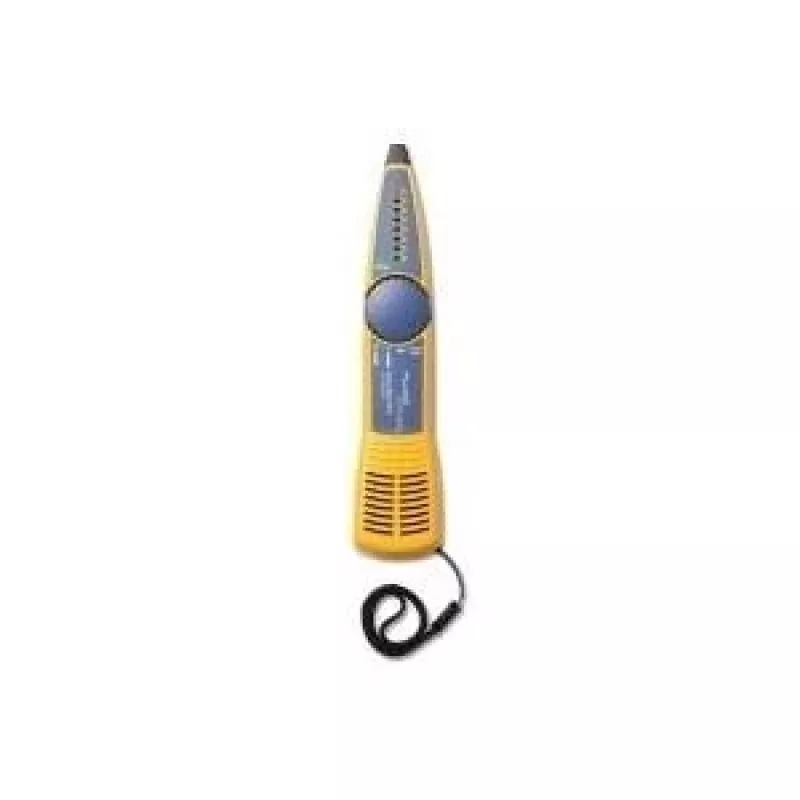

Fluke Networks MT-8200-63A IntelliTone 200 sonda - tester káblov

Locating and isolating cables in a busy network environment can be time-consuming and error-prone. The Fluke Networks MT-8200-63A IntelliTone 200 Probe solves this by combining digital and analog toning technologies to precisely identify cable runs, detect faults, and verify network service.

Who is it for

Network technicians, installers, and IT professionals who need to trace and troubleshoot twisted pair and coaxial cabling in offices, data centers, or industrial settings.

Main features

• IntelliTone digital toning for clear signal identification on active networks
• SmartTone analog toning for traditional tone and probe workflows
• Supports twisted pair (Cat 3 to Cat 7) and coaxial cables
• RJ45 and F-connector interfaces for versatile connectivity
• Detects 10/100/1000 Base-T Ethernet link presence
• Identifies opens, shorts, reversed pairs, and split pairs
• LED signal strength indicators and audible tone with headphone jack
• Powered by a single 9V alkaline battery

Specifications

• Toning technology: IntelliTone digital, SmartTone analog
• Cable types: Twisted pair (Cat 3/4/5/5e/6/6a/7), coaxial
• Connectors: RJ45, coaxial F-connector
• Network services detection: 10/100/1000 Base-T Ethernet link
• Cable fault detection: Opens, shorts, reversed pairs, split pairs
• Cable map testing: Yes (RJ45 and RJ11)
• Visual indicator: Signal strength LEDs
• Audio indicator: Built-in speaker, headphone jack
• Power source: 1 x 9V alkaline battery
• Battery life: Approx. 20 hours (digital), 6 hours (analog)
• Operating temperature: 0°C to 45°C (32°F to 113°F)
• Storage temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 90% (10°C to 35°C), 75% (35°C to 45°C) non-condensing
• Safety compliance: EN 61010-1 2nd Edition
• EMC compliance: EN 61326-1
• Compatibility: Fluke Networks IntelliTone Pro 200 Toner

Tips

For best results, pair the probe with the IntelliTone Pro 200 Toner (sold separately). Use digital mode on live networks to avoid disruption, and analog mode for unshielded twisted pair or coaxial runs.
