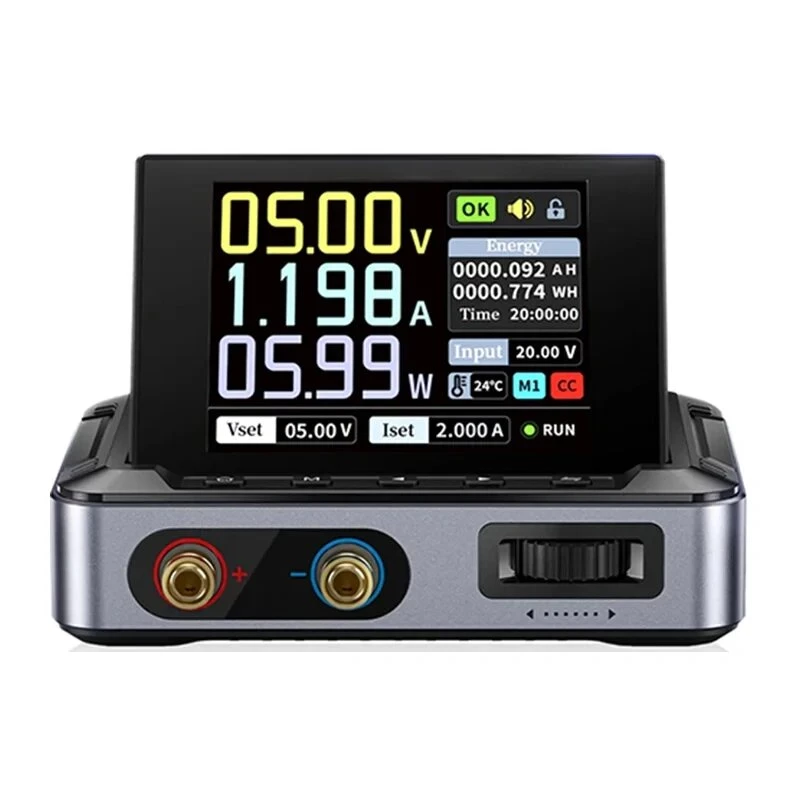

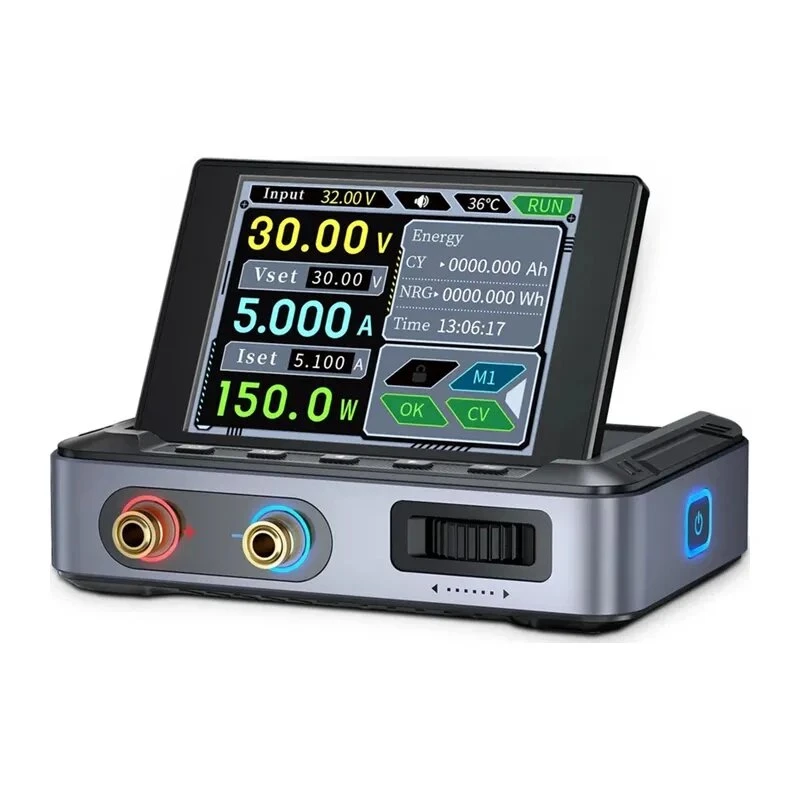

FNIRSI DPS150 PD nastaviteľný zdroj napájania

The FNIRSI DPS150 PD is an adjustable power supply offering an output voltage of up to 30 V, current up to 5 A, and power up to 150 W. It provides adjustment accuracy of 0.01 V and 0.001 A, supports constant voltage (CV) and constant current (CC) modes, and features a ripple level not exceeding 20 mV with no voltage overshoot during parameter changes.

Key features

• Adjustable output voltage up to 30 V, current up to 5 A, power up to 150 W
• Adjustment accuracy of 0.01 V and 0.001 A
• Constant voltage (CV) and constant current (CC) modes
• Ripple level not exceeding 20 mV
• No voltage overshoot during parameter changes
• Power delivery via PD, QC, and DC interfaces
• Programmable output
• Saves six predefined voltage and current profiles
• Records energy consumption and capacity
• Software updates supported
• Tracks parameter trends in graph form
• Real-time data display
• Interface language switchable between English and Chinese
• Two display styles
• 2.8-inch color IPS screen with four-digit display
• Screen tilt up to 90°
• Compatible with 4 mm banana plugs, U-type terminals, and copper wires
• Eight protective mechanisms including protection against excessive voltage and current, short circuits, and overheating
• Thermally conductive silicone with thermal conductivity of 3.0 W/m·K
• Aluminum housing
• Lightweight, compact design

Specifications

• Brand: Fnirsi
• MPN: DPS150 PD
• Model: DPS150 PD
• Display: 2.8” (320 x 240)
• Input: DC voltage 5.0 V–3
