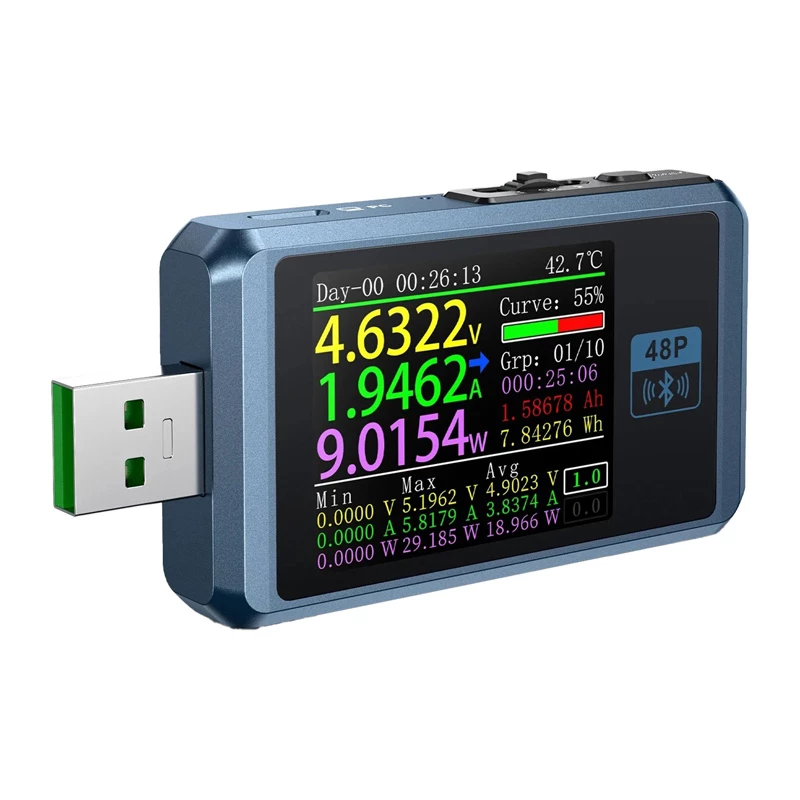

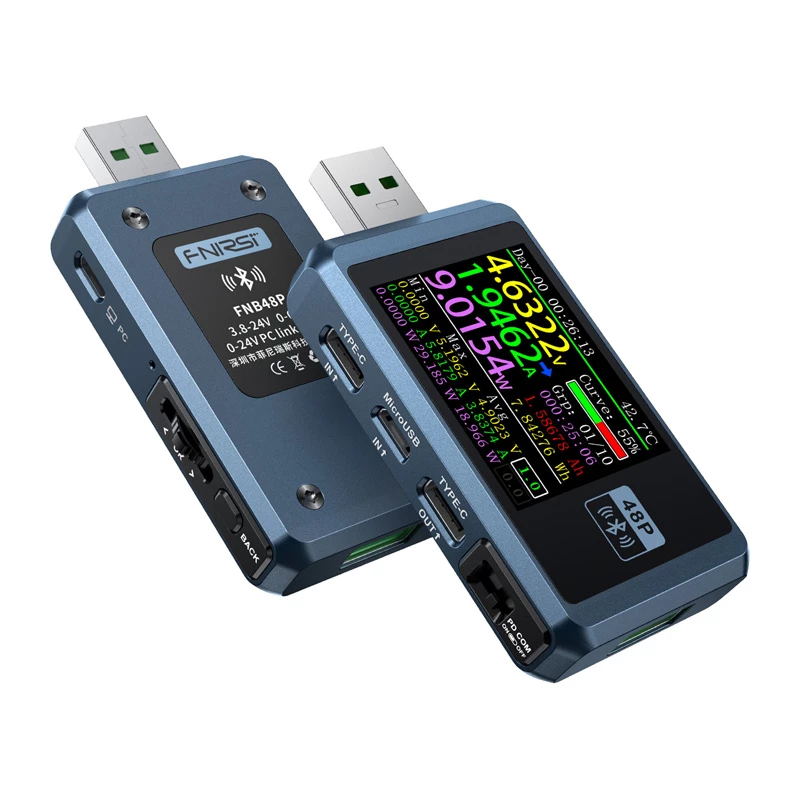

FNIRSI FNB48P BT tester USB portov s Bluetooth

The FNIRSI FNB48P BT is an advanced USB port tester with a Bluetooth module, designed for precise analysis of the charging process. It supports multiple interfaces and fast charging protocols, operates with high current, and allows for accurate monitoring of voltage, current, and power. The whole device is enclosed in a solid metal casing and powered by an efficient processor.

Key features

• Supports multiple interfaces: USB-A, USB-C, and Micro USB
• Operates with high current up to 6.5 A
• Works with input and output ports: USB-A in/out, USB-C in/out, Micro USB in, and a dedicated PD COM connector
• Recognizes and verifies fast charging protocols: Apple 2.4A, QC2.0, QC3.0, USB Power Delivery, Samsung AFC, Huawei FCP and SCP, OPPO VOOC, DASH, WARP, SuperVOOC, PE+ 1.1, and PE+ 2.0
• Detects PD e-marker cables with reading of data from the CC line and e-marker chip
• Identifies DASH cables with reading of data from their circuits
• Internal cable resistance measurement in a fast, two-step mode with constant current load
• Maximum resolution of 0.00001 for voltage, current, and power monitoring
• Six-digit high-precision readout
• 240 MHz operating frequency
• ARM MF processor
• 1.77-inch HD display
• Four graph modes: voltage and current relationship, DD voltage, offline recording, and power ripple using AC coupling
• Records up to ten groups of measurement data
• Built-in battery capacity calculation algorithms
• Built-in gravity sensor supports automatic 180° rotation of the interface, and in simple mode also 360°
• CNC-milled metal housing
• PC interface

Specifications

• Brand: Fnirsi
• MPN: FNB48 BT
• Model: FNB48P BT
• Bluetooth module: Yes
• Interfaces: USB-A, USB-C, Micro USB
• Maximum current: 6.5 A
• Ports: USB-A in/out, USB-C in/out, Micro USB in, PD COM
• Fast charging protocols: Apple 2.4A, QC2.0, QC3.0, USB Power Delivery, Samsung AFC, Huawei FCP and SCP, OPPO VOOC, DASH, WARP, SuperVOOC, PE+ 1.1, PE+ 2.0
• Maximum resolution: 0.00001
• Readout: six-digit
• Operating frequency: 240 MHz
• Processor: ARM MF
• Display: 1.77-inch HD
• Graph modes: voltage and current relationship, DD voltage, offline recording, power ripple using AC coupling
• Data recording: up to ten groups
• Battery capacity calculation algorithms: built-in
• Gravity sensor: automatic 180° rotation, 360° in simple mode
• Housing: CNC-milled metal
• PC interface: Yes
