RAID káblová sada FUJITSU PY-CBS119 pre PRIMERGY TX1330 – interná RAID/SAS kabelážna sada

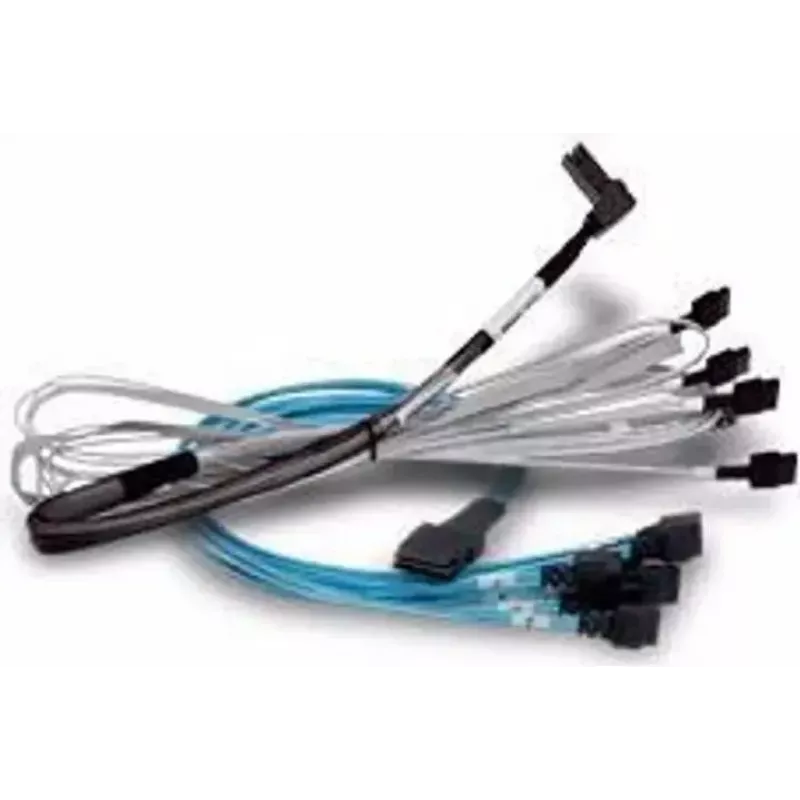

RAID Cable Kit FUJITSU PY-CBS119 for PRIMERGY TX1330 provides the internal cabling required to connect storage drives to a RAID or SAS controller in compatible Fujitsu PRIMERGY TX1330 server configurations. The kit is intended for use during server assembly, upgrades or component replacement to enable proper signal routing and power/data connections between the server’s controller and drive bays, supporting standard RAID arrays and SAS devices.

Advantages

The kit offers factory-matched cabling designed for physical and electrical compatibility with PRIMERGY TX1330 drive layouts. Cables are configured to minimize routing complexity inside the chassis and to support reliable data transmission for RAID and SAS topologies. Using purpose-designed cables reduces installation time and helps maintain orderly internal layout, which facilitates airflow and simplifies future maintenance.

Key specifications

• Compatibility: internal cabling tailored for PRIMERGY TX1330 server chassis and drive layout
• Interface type: internal RAID/SAS cabling suitable for controller-to-drive connections
• Cable arrangement: pre-configured lengths and connectors to match internal drive bay positioning
• Function: supports data transmission and power/data routing required for RAID and SAS storage arrays
• Physical characteristics: internal-grade sleeving and connector housings designed for server environments

How to use

Install the kit by powering down the server and following standard static-safe procedures. Remove the chassis cover to access the controller and drive bays, then route each cable from the controller port to the corresponding drive connector according to the PRIMERGY TX1330 service documentation. Ensure each connector is fully seated and latched, maintain clear airflow paths, and secure cables with existing clips or ties to prevent interference with moving parts. After installation, power on the server and verify drive detection in system firmware or RAID controller management tools.

Recommendations

Use the kit as part of routine maintenance and upgrades for PRIMERGY TX1330 servers; always follow Fujitsu service manuals for connector identification, cable routing, and electrostatic discharge precautions to ensure correct installation and long-term reliability.
