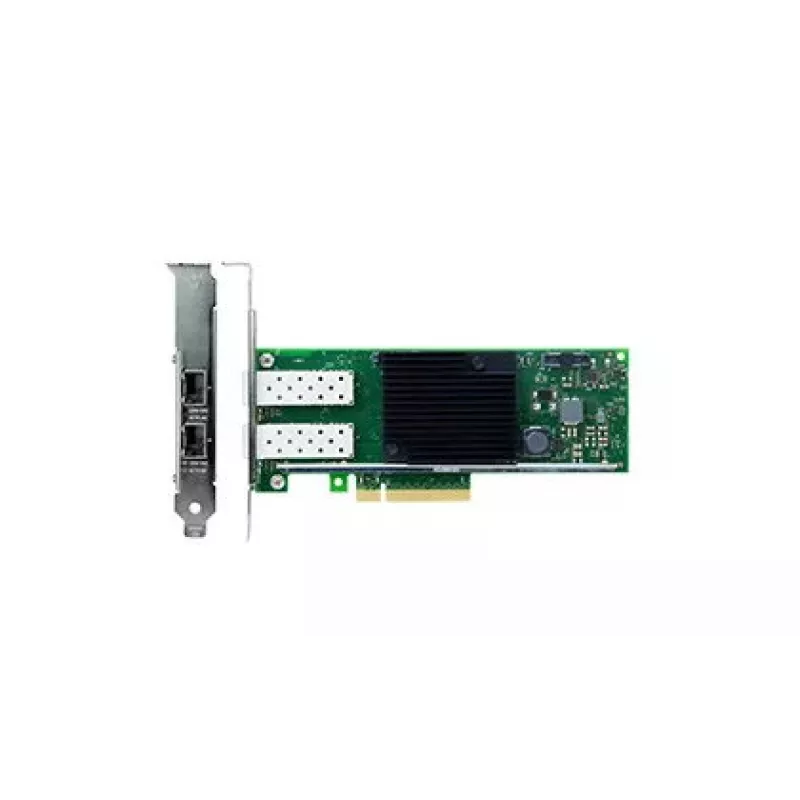

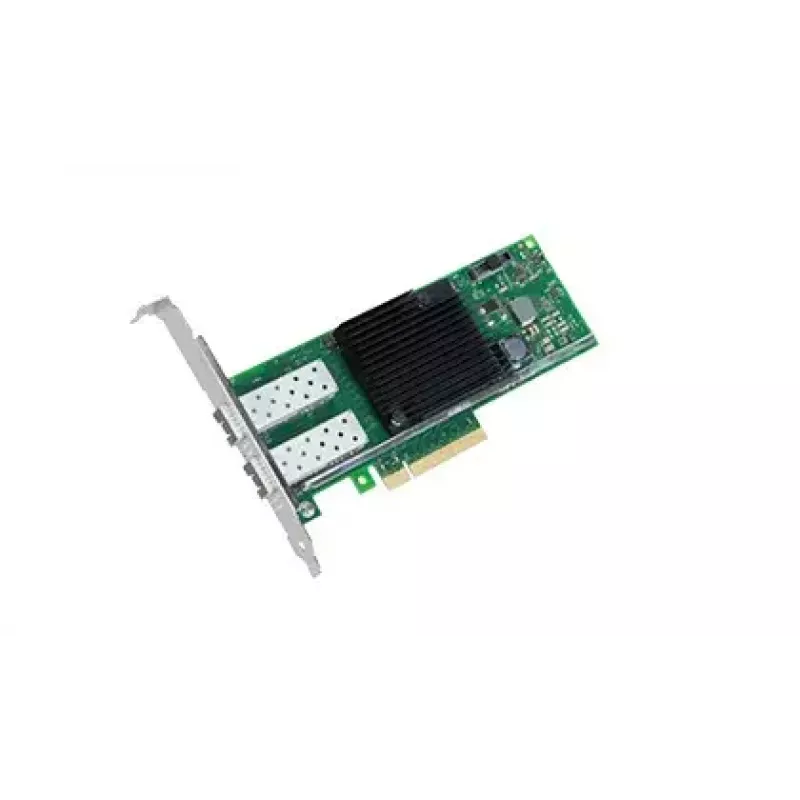

Fujitsu PLAN EP Intel X710-DA2 2x10GbE SFP+ interné optické vlákno 10000 Mbit/s

The Fujitsu PLAN EP Intel X710-DA2 2x10GbE SFP+ is a high-performance server network adapter designed for modern data center and enterprise environments. It provides two 10 Gigabit SFP+ ports, PCI Express host interface and supports wired fiber connectivity for high-bandwidth, low-latency network traffic up to 10000 Mbit/s. The adapter is built to support LAN and SAN deployments and to integrate with server and network virtualization platforms.

Advantages

The adapter delivers scalable 10GbE connectivity with proven reliability and support for advanced Ethernet standards such as IEEE 802.3ae, 802.3az and 802.1Q. Its PCI Express interface ensures direct host connectivity and efficient data throughput, while the dual SFP+ ports enable flexible fiber-based networking topologies. The Fujitsu PLAN EP Intel X710-DA2 offers features that address both server and network virtualization needs and is suitable for high-density rack deployments.

Suitable for

• Data center servers requiring 10GbE connectivity
• Enterprise virtualization hosts and hyper-converged infrastructure
• LAN and SAN fiber networks
• High-bandwidth applications such as storage, backup and virtualization traffic

Key specifications

• Brand: FUJITSU
• Model: PLAN EP Intel X710-DA2 (S26361-F3640-L502)
• Ports: 2 x 10GbE SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Host interface: PCI Express
• Connectivity technology: Wired (fiber)
• Supported standards: IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p, IEEE 802.1as, IEEE 802.1Qaz, IEEE 802.1Q
• EAN: 4057185630948

How to use

Install the Fujitsu PLAN EP Intel X710-DA2 into an available PCI Express slot on a compatible server following the server and adapter installation guides. Populate SFP+ transceivers appropriate for your fiber type and connect fiber optic cables to the SFP+ ports. Configure network settings and link aggregation, VLANs or virtualization features through the host operating system or management tools. Ensure that drivers and firmware recommended by Fujitsu are installed and up to date.

Recommendations

Use manufacturer-approved SFP+ transceivers and fiber cabling to ensure optimal signal integrity. Keep firmware and NIC drivers current and follow data center best practices for grounding, airflow and rack density when deploying multiple adapters.
