GACIA PR8NM 2P 25A 30mA AC RCCB prúdový chránič 6kA 2 moduly

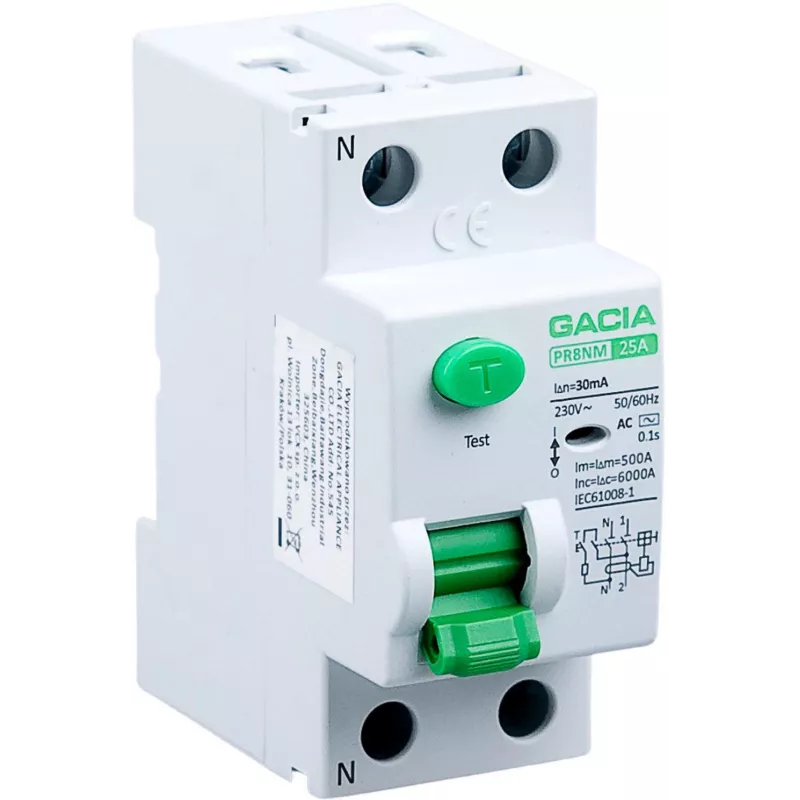

The GACIA PR8NM is a high-quality Residual Current Circuit Breaker (RCCB) designed for reliable protection against electrical hazards. With 2 poles, a rated current of 25A, and a rated residual operating current of 30mA, this device ensures safety in residential and commercial installations. Compliant with IEC/EN 61008-1 standards, it offers a short-circuit breaking capacity of 6kA and is type AC for sinusoidal AC residual currents.

Advantages

This RCCB provides protection against indirect contact and additional protection against direct contact. Its compact 2-module design (36mm) fits standard DIN rail enclosures, saving space. The clear ON/OFF and trip indicators allow for easy status monitoring. Screw terminals ensure secure and reliable connections.

Suitable for

• Residential electrical panels
• Commercial buildings
• Industrial control cabinets
• Lighting and socket circuits

Key specifications

• Device Type: Residual Current Circuit Breaker (RCCB)
• Number of Poles: 2P
• Rated Current (In): 25 A
• Rated Residual Operating Current (IΔn): 30 mA
• Rated Short-Circuit Breaking Capacity (Icn): 6 kA
• RCD Type: AC
• Rated Voltage (Un): 230 V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Standards Compliance: IEC/EN 61008-1
• Tripping Characteristic: Instantaneous
• Connection Type: Screw terminals
• Module Width: 2 Modules (approx. 36 mm)
• Protection Function: Protection against indirect contact, additional protection against direct contact
• Indication: ON/OFF position indicator, Trip indicator
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Ambient Operating Temperature: -25°C to +40°C
• Terminal Capacity: 1-25 mm² (Solid), 1-16 mm² (Flexible)

Recommendations

For optimal safety, pair this RCCB with a compatible MCB or RCBO. Ensure correct wiring and periodic testing of the trip mechanism. Suitable for use in TN, TT, and IT systems.
