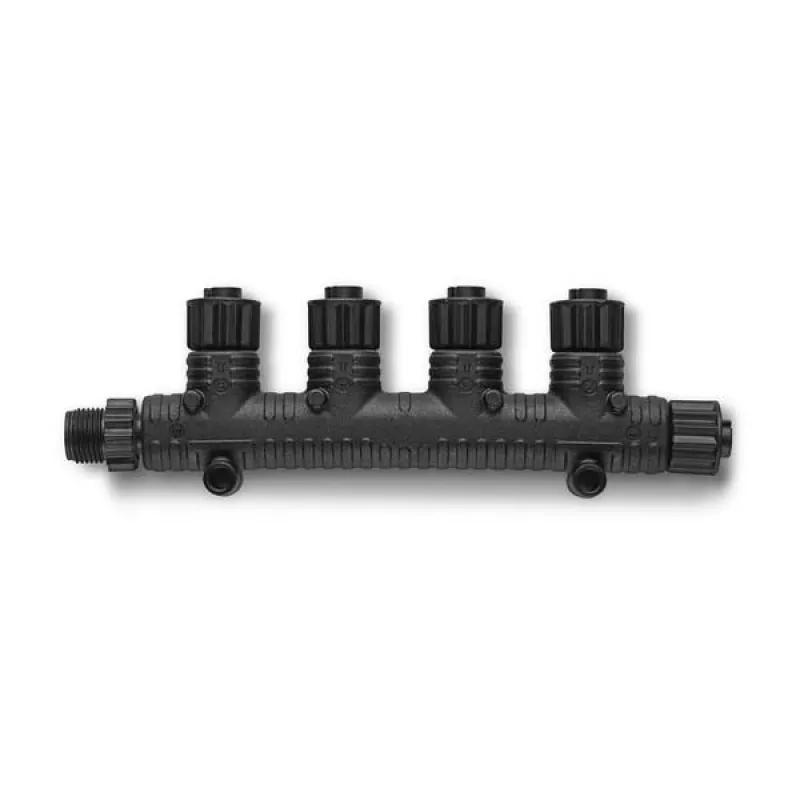

Garmin NMEA 2000 multiport T-konektor 010-11078-01

Consolidate up to four NMEA 2000 devices onto a single backbone node with the Garmin NMEA 2000 Multiport T-Connector. This marine-grade hub eliminates the need for daisy-chaining multiple T-connectors, reducing clutter and simplifying network expansion. With an IPX7 waterproof rating and corrosion-resistant composite construction, it ensures reliable performance in harsh marine environments.

Overview

The Garmin NMEA 2000 Multiport T-Connector (010-11078-01) is a plug-and-play network hub designed for marine electronics. It provides four drop ports for connecting NMEA 2000 devices such as chartplotters, sensors, autopilots, and instruments, plus two backbone connections (one male, one female) to integrate seamlessly into an existing NMEA 2000 backbone. The connector supports the standard NMEA 2000 data rate of 250 kbps and operates within the 9–16 VDC range, distributing power from the backbone to connected devices.

What stands out

• Four drop ports reduce cable clutter and simplify network expansion.
• IPX7 waterproof rating ensures reliable operation in wet marine environments.
• Marine-grade composite construction resists corrosion and UV damage.
• Plug-and-play installation with standard NMEA 2000 Micro-C connectors.
• Optional surface mounting for secure, permanent installation.

Technical details

• Network Standard: NMEA 2000
• Connector Type: Micro-C
• Drop Ports: 4
• Backbone Connections: 2 (1 male, 1 female)
• Total Connections: 6
• Data Rate: 250 kbps
• Operating Voltage: 9–16 VDC
• Environmental Protection: IPX7
• Material: Marine-grade composite
• Color: Black
• Mounting: Optional surface mount

Our verdict

A robust and efficient solution for expanding your NMEA 2000 network without the hassle of multiple connectors, the Garmin Multiport T-Connector delivers reliable performance and easy installation for any marine electronics setup.
