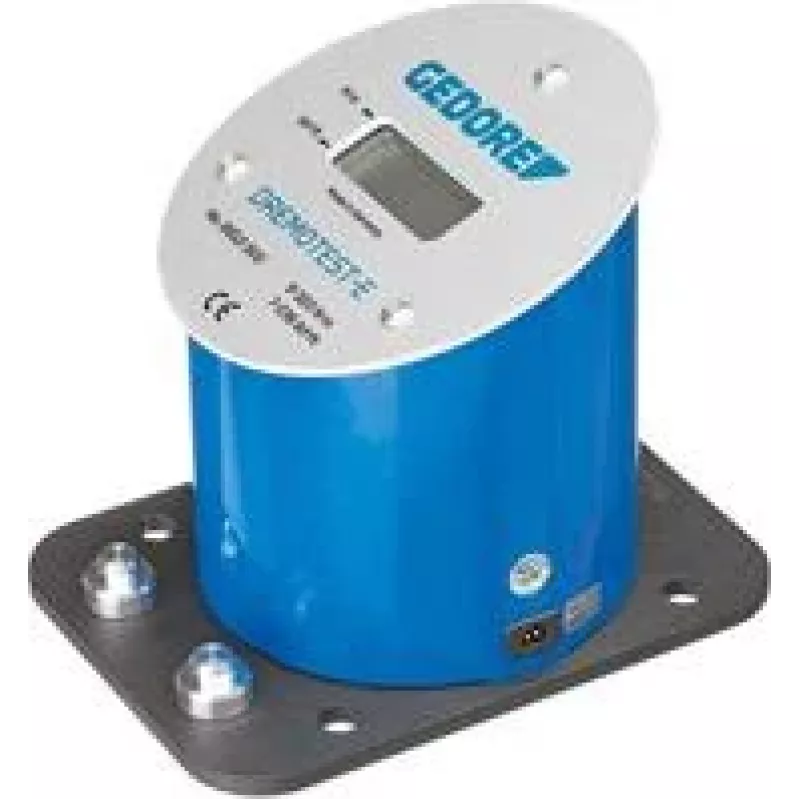

GEDORE elektronický tester krútiaceho momentu 9-320 Nm (1856111)

In a busy workshop or calibration lab, verifying torque wrench accuracy is a daily necessity. The GEDORE Electronic Torque Tester 1856111 provides a reliable way to test and adjust torque wrenches and screwdrivers across a range of 9 to 320 Nm. Its digital LCD display shows readings in Nm, lbf·ft, or lbf·in, and the peak hold and track modes let you capture maximum torque or monitor live torque during tightening. The robust metal housing withstands workshop conditions, while the acoustic and visual signals alert you when the set torque is reached. Powered by two AAA batteries, it offers approximately 100 hours of continuous operation and includes automatic power off to conserve battery life.

Key specifications

• Torque measuring range: 9 - 320 Nm
• Measurement accuracy: ± 1% of indicated value
• Supported units: Nm, lbf·ft, lbf·in
• Drive connection: 1/2" square drive
• Display type: Digital LCD
• Operating modes: Peak Hold, Track Mode
• Power supply: 2x AAA batteries
• Battery life: Approx. 100 hours (continuous operation)
• Automatic power off: Yes
• Operating temperature range: +5°C to +40°C
• Storage temperature range: -20°C to +50°C
• Humidity: 20% to 80% non-condensing
• Housing material: Robust metal
• Calibration standard: VDI/VDE 2646
• Key features: Battery status indicator, acoustic and visual signals

Why choose it

This torque tester offers high accuracy and a wide measuring range, making it suitable for professional torque tool calibration. Its robust construction and clear digital display ensure reliable performance in demanding environments.

Ideal use cases

• Calibration of torque wrenches in automotive workshops
• Testing torque screwdrivers in electronics manufacturing
• Quality control in assembly lines
• Laboratory verification of torque tools

Good to know

The device is designed for testing and adjusting torque wrenches and screwdrivers. It operates with two AAA batteries (not specified if included) and features automatic power off. The operating temperature range is +5°C to +40°C, and storage temperature range is -20°C to +50°C.
