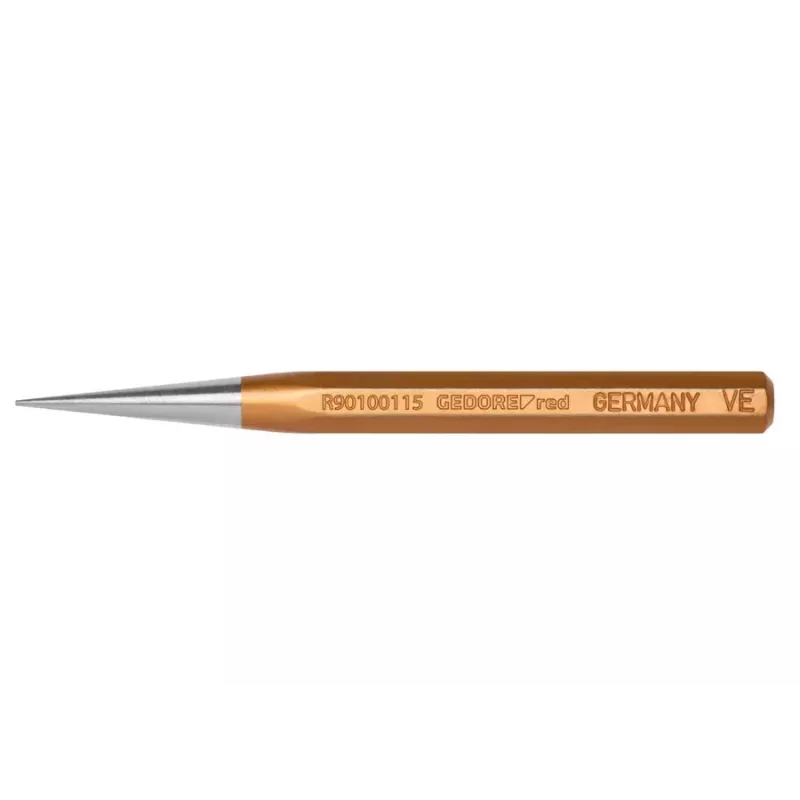

Gedore RED priebojník, 8-hranný, 120 x 10 x 1 mm (3300816)

Hardened to 58-60 HRC at the tip, this drift punch drives out pins and aligns holes with precision. The octagonal shank provides a secure grip, while the striking head is tempered to 38-46 HRC to withstand heavy blows without chipping.

Overview

The Gedore RED 3300816 is a professional-grade drift punch forged from chrome vanadium steel (31CrV3). It features a 6 mm tip diameter and a 150 mm overall length, conforming to DIN 6450 Form C. The octagonal shank prevents rolling and improves control during use.

What stands out

• Octagonal shank for secure grip and anti-roll stability
• Tip hardened to 58-60 HRC for durability
• Striking head tempered to 38-46 HRC to absorb impact
• Forged from chrome vanadium steel for high strength
• Conforms to DIN 6450 Form C

Technical details

• Punch type: Drift punch
• Tip diameter: 6 mm
• Shank width across flats: 10 mm
• Total length: 150 mm
• Material: Chrome vanadium steel (31CrV3)
• Tip hardness: 58-60 HRC
• Striking head hardness: 38-46 HRC
• Finish: Polished and hardened
• Standard: DIN 6450 Form C
• Application: Driving out pins, aligning holes, general assembly work
• Manufacturing process: Forged
• Product line: Gedore RED

Our verdict

A reliable drift punch for everyday workshop use, with a well-balanced hardness profile and a comfortable octagonal grip.
