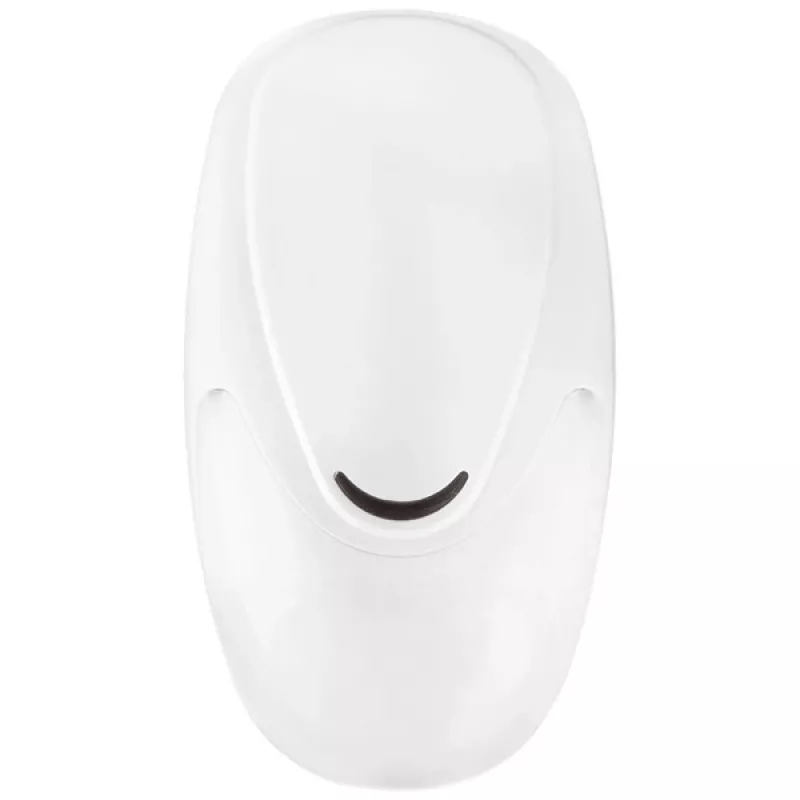

Genevo EVOPIR Bezdrôtový PIR detektor pohybu 868 MHz

The Genevo EVOPIR is a high-performance wireless Passive Infrared (PIR) motion detector designed for use with Genevo PRiMA alarm systems. Featuring digital signal processing and automatic temperature compensation, it provides reliable detection while minimizing false alarms. With a detection range of 12 x 12 meters and a 90° angle, it is ideal for indoor security applications.

Advantages

Pet immunity up to 25 kg reduces nuisance alarms. Front and rear tamper protection ensures security against sabotage. Long battery life of up to 3 years from a single CR123A lithium battery. Easy wall mounting at recommended height of 2.2–2.5 meters.

Suitable for

• Indoor security in homes and offices
• Integration with Genevo PRiMA alarm systems
• Areas requiring pet-friendly motion detection

Key specifications

• Detection method: Passive Infrared (PIR)
• Wireless frequency: 868 MHz
• Detection range: 12 x 12 m
• Detection angle: 90°
• Power supply: 1x CR123A 3V Lithium battery
• Battery life: Up to 3 years
• Pet immunity: Up to 25 kg
• Tamper protection: Front and rear cover
• Operating temperature: -10°C to +55°C
• Wireless transmission range: Up to 500 m (open field)
• Mounting type: Wall-mounted
• Housing material: ABS plastic

Recommendations

For optimal performance, install the detector at the recommended height and avoid placing near heat sources or direct sunlight. Test the wireless range before final installation.
