GESIPA slepý nit oceľ/oceľ 4x8mm plochá hlava rozsah upnutia 2,5-4,5mm (6310443)

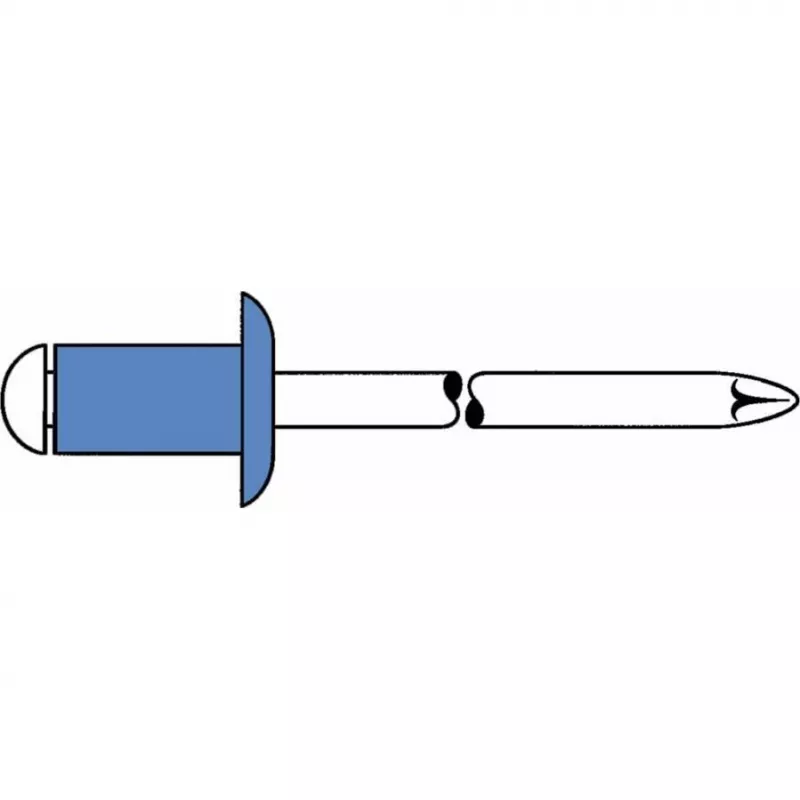

Blind rivet for permanent fastening in metalworking and sheet metal applications. The steel body and steel mandrel provide high shear and tensile strength for load-bearing joints. The dome head (Flachrundkopf) sits flush on the material surface and distributes clamping force evenly. With a grip range of 2.5 to 4.5 mm, this rivet covers a wide range of material thicknesses in a single size, reducing the need for multiple rivet lengths on a job.

Advantages

Steel/steel construction offers excellent vibration resistance and prevents loosening in dynamic applications. The dome head profile is suitable for both functional and visible joints. Installation is quick with any standard blind riveting tool, and the rivet creates a vibration-proof, tamper-resistant connection.

Suitable for

• Sheet metal fabrication and enclosures
• Automotive body and chassis components
• HVAC ductwork and ventilation systems
• General metalworking and maintenance

Key specifications

• Rivet type: Blind rivet
• Head type: Dome head (Flachrundkopf)
• Rivet body material: Steel
• Mandrel material: Steel
• Rivet diameter: 4 mm
• Rivet length: 8 mm
• Grip range: 2.5 - 4.5 mm
• Recommended drill hole diameter: 4.1 mm
• Finish: Plain steel
• Colour: Metallic grey

Recommendations

For best results, drill a 4.1 mm hole and use a rivet tool with the correct nosepiece for 4 mm rivets. Ensure the total material thickness falls within the grip range. For outdoor or corrosive environments, consider a stainless steel rivet variant.
