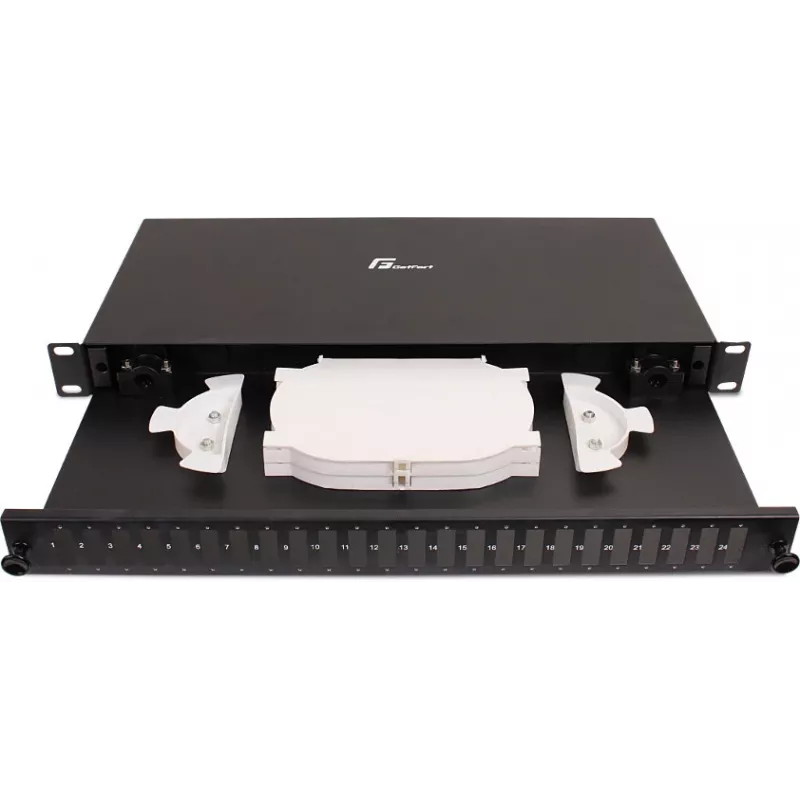

GETFORT GF-FO04-DX 1U 19" 24xSC duplex pevný optický patch panel

The GETFORT GF-FO04-DX is a high-quality 1U 19-inch fiber optic patch panel designed for efficient cable management in telecommunication networks, LAN, FTTx, and data centers. With 24 SC Duplex ports supporting up to 48 fibers, this fixed panel offers reliable performance for both single-mode and multi-mode applications. Constructed from cold-rolled steel with a black RAL9005 finish, it ensures durability and easy integration into standard 19-inch racks.

Advantages

This patch panel provides a robust and organized solution for fiber optic connections. Its fixed design ensures stability, while multiple rear cable entry points simplify installation. The panel accommodates up to 2 standard splice trays, making it versatile for various fiber management needs. Compliance with RoHS and CE standards guarantees safety and environmental responsibility.

Suitable for

• Telecommunication networks
• Local Area Networks (LAN)
• FTTx deployments
• Data centers

Key specifications

• Rack Unit Size: 1U
• Rack Width: 19 inch
• Connector Type: SC Duplex
• Port Count: 24 ports
• Fiber Capacity: 48 fibers
• Panel Type: Fixed (Non-sliding)
• Material: Cold-rolled Steel
• Color: Black (RAL9005)
• Mounting Type: Rack Mount
• Cable Entry: Multiple rear cable entry points

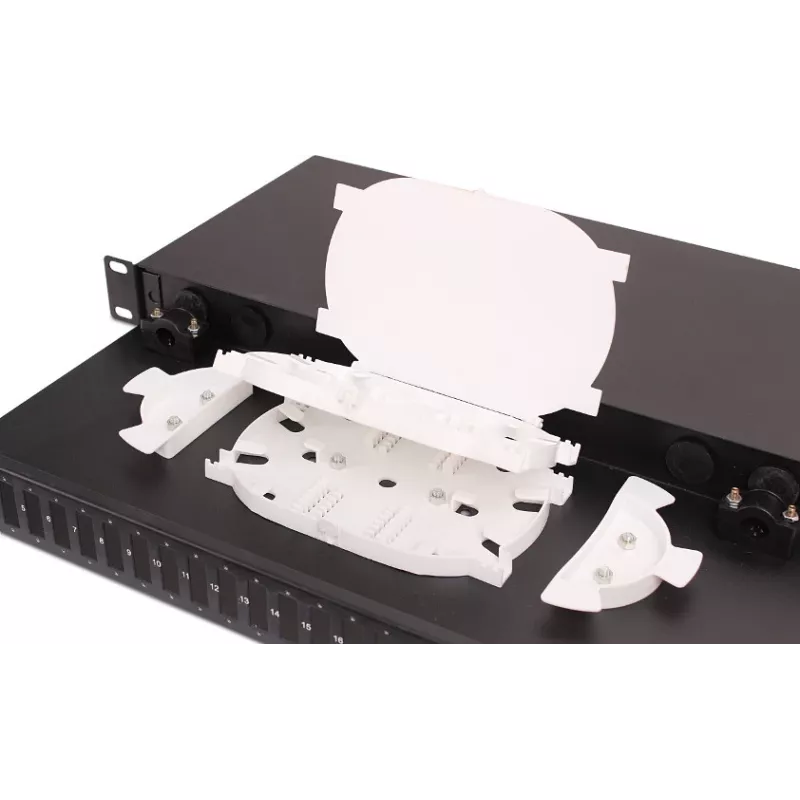

• Splice Tray Accommodation: Up to 2 standard splice trays
• Fiber Compatibility: Single-mode (SM) and Multi-mode (MM)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 0% to 95% non-condensing
• Standards Compliance: RoHS, CE

Recommendations

For optimal performance, use with high-quality SC Duplex connectors and ensure proper cable management. This panel is ideal for structured cabling environments requiring reliable fiber termination and organization.
