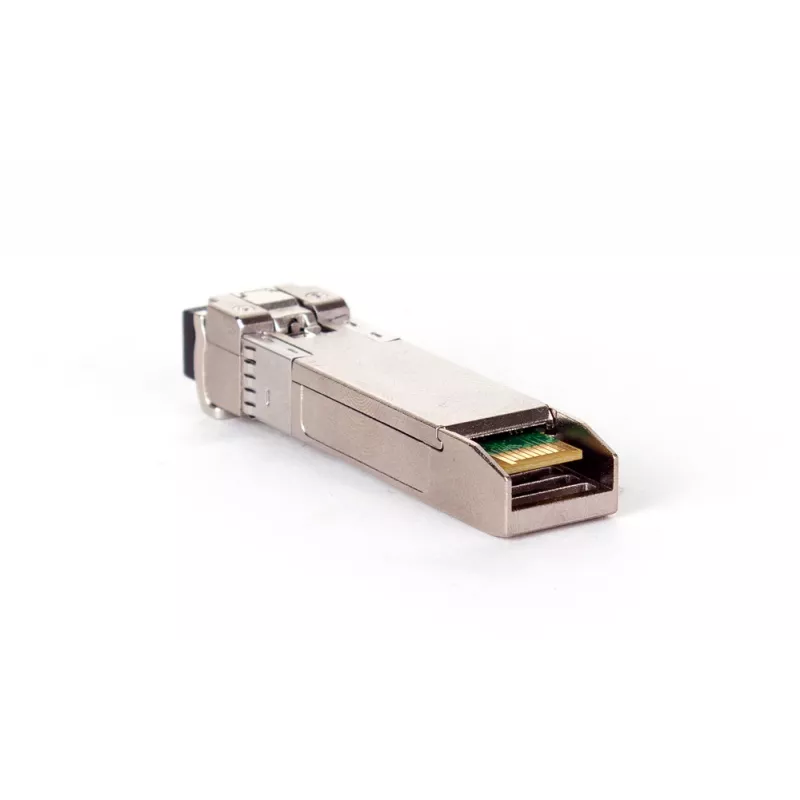

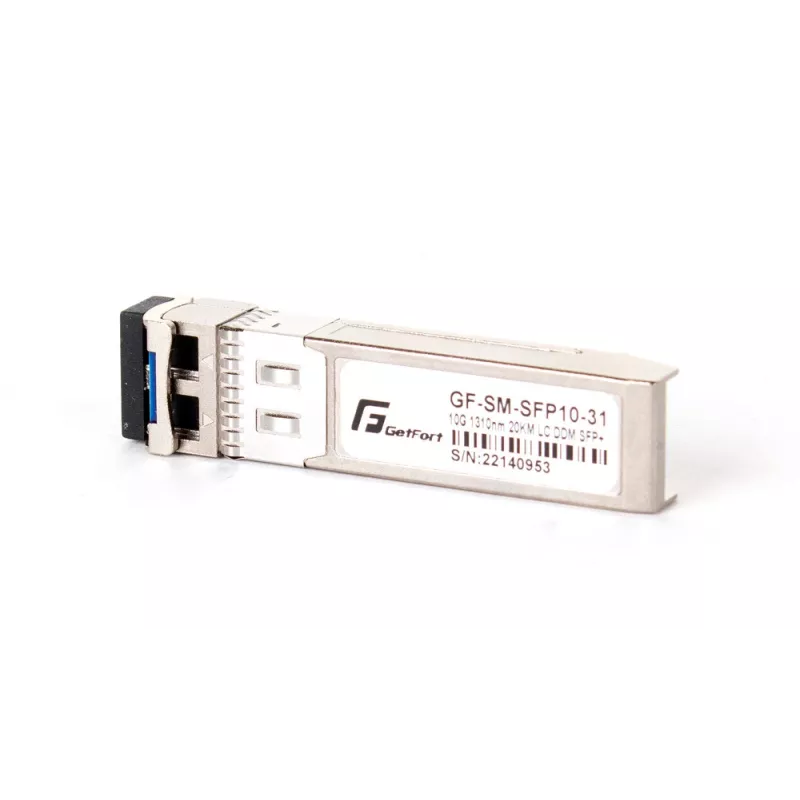

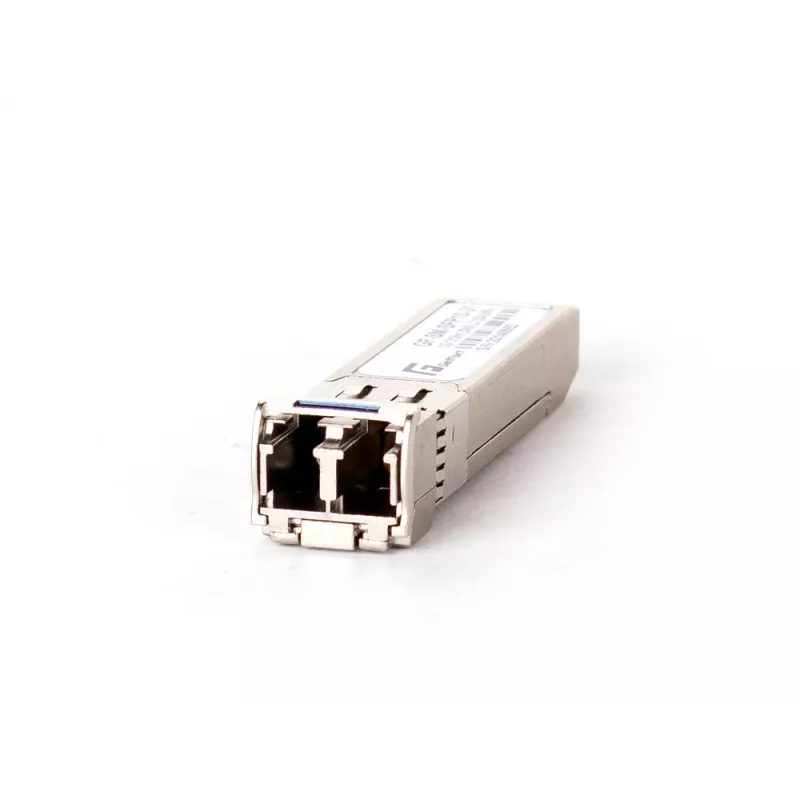

GETFORT GF-SM-SFP10-31 SFP+ 10Gbps 20km LC SM transceiver

The GETFORT GF-SM-SFP10-31 is a high-performance SFP+ transceiver module designed for 10 Gigabit Ethernet applications over single-mode fiber. It supports data rates up to 10 Gbps and transmission distances up to 20 km, making it ideal for long-reach network connections in enterprise and data center environments.

Advantages

This module offers reliable, hot-pluggable connectivity with low power consumption (<1.0W) and advanced DDM/DOM support for real-time monitoring of optical parameters. Its rugged metal enclosure ensures EMI protection and durability.

Suitable for

• 10 Gigabit Ethernet links (10GBASE-LR/ER)
• Fiber Channel applications
• Metro and access networks
• Interconnecting switches, routers, and servers

Key specifications

• Transceiver Type: SFP+
• Data Rate: 10 Gbps
• Max Distance: 20 km
• Fiber Type: Single-Mode (OS2)
• Connector: LC Duplex
• Wavelength: 1310 nm
• DDM/DOM: Yes
• Power Consumption: <1.0W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3ae, SFF-8431, SFF-8432

Recommendations

For optimal performance, use with single-mode fiber patch cables (OS2) and ensure compatibility with your networking equipment. This module is multi-vendor compatible and tested for interoperability with major brands.
