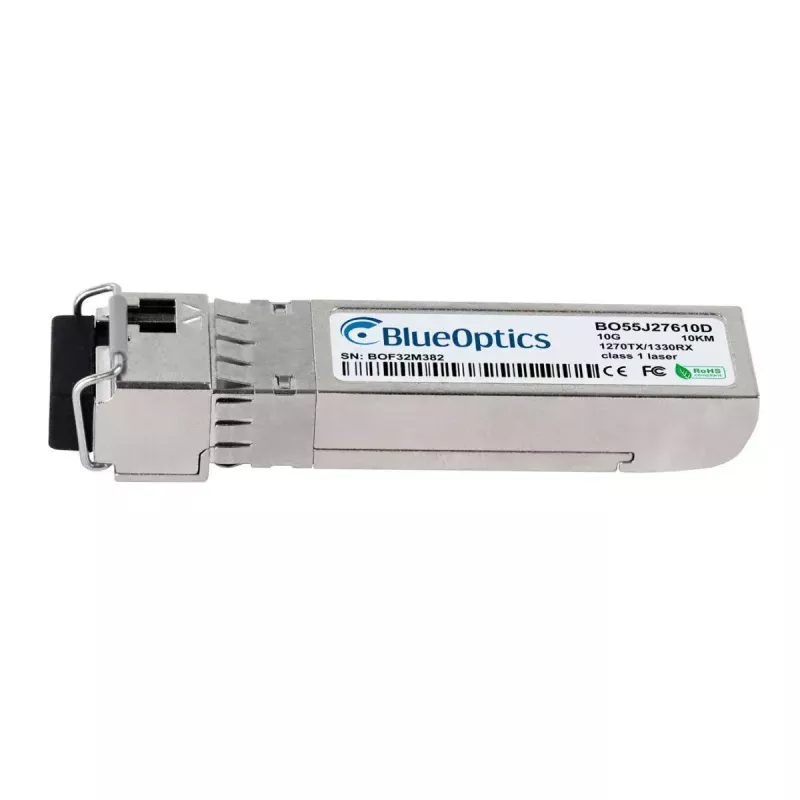

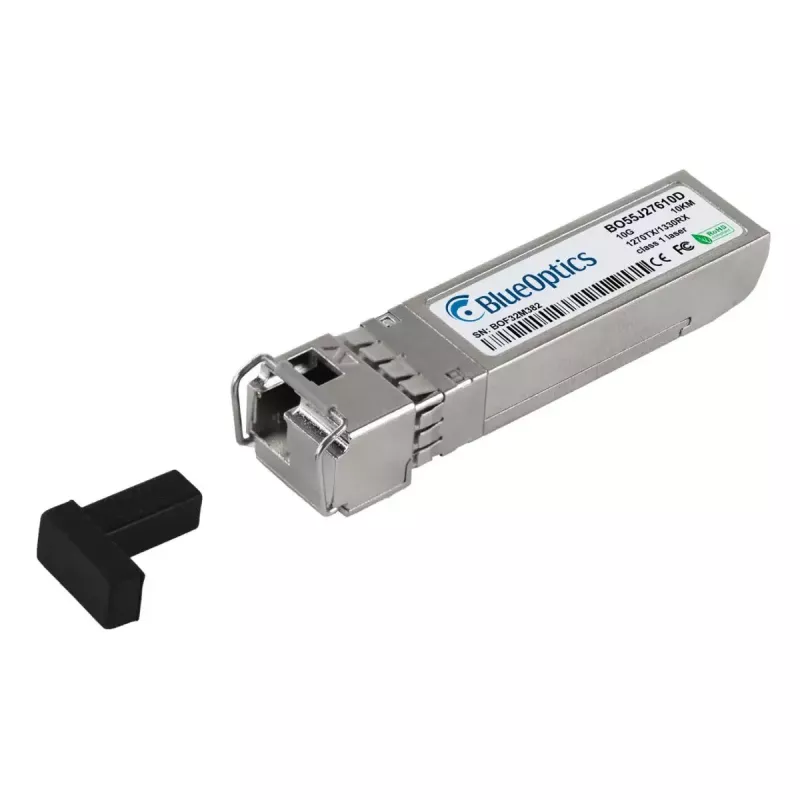

SFP transceiver modul BlueOptics SFPP-S12-10-BO optický 10000 Mbit/s

The BlueOptics SFPP-S12-10-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s optical links. Housed in a metal casing and weighing approximately 3 g, the module operates at a 3.3 V supply and uses an LC simplex connector for single-mode fiber connections. It supports 10GBASE-BX-U style transmission with separate transmit and receive wavelengths for point-to-point links over longer distances, and implements industry MSA-compliant form factor and electrical interface for wide compatibility with network equipment that accepts SFP+ modules.

Advantages

The module provides a compact, low-weight metal housing that helps with heat dissipation and mechanical stability while maintaining the SFP+ standard electrical interface. Designed for single-mode fiber, it supports 10 Gbit/s data throughput and is compatible with common network platforms that accept SFP+ transceivers. Built to MSA guidelines, it enables straightforward replacement or upgrade of existing SFP+ ports without modifying host hardware or firmware, and its simple form factor simplifies installation and cabling.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFPP-S12-10-BO into a compatible SFP+ port of your switch, router or storage device following the host hardware manufacturer’s hot-swap or installation procedure. Connect an appropriate single-mode LC simplex fiber patch cable between this transceiver and the remote transceiver. Ensure the host device supports 10G SFP+ modules and the specific optical interface (single-mode LC, BX wavelengths) used by the transceiver. If available, enable or verify Digital Diagnostics (DDM/DOM) support in the host to monitor optical parameters during operation.

Recommendations

Verify compatibility with the target hardware and confirm that the system firmware supports third‑party SFP+ modules. Use single-mode LC simplex fiber and quality patch cords to achieve the specified reach and signal integrity. If remote monitoring of optical parameters is required, ensure the host device supports DDM/DOM access. Handle the transceiver with care to avoid contamination of fiber endfaces and store unused modules in protective packaging when not installed.
