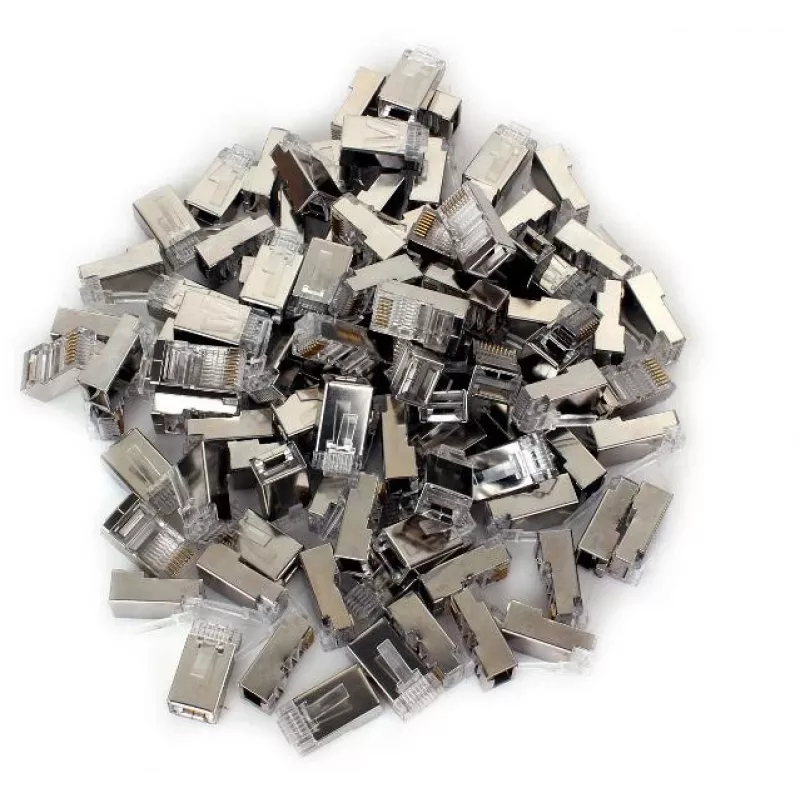

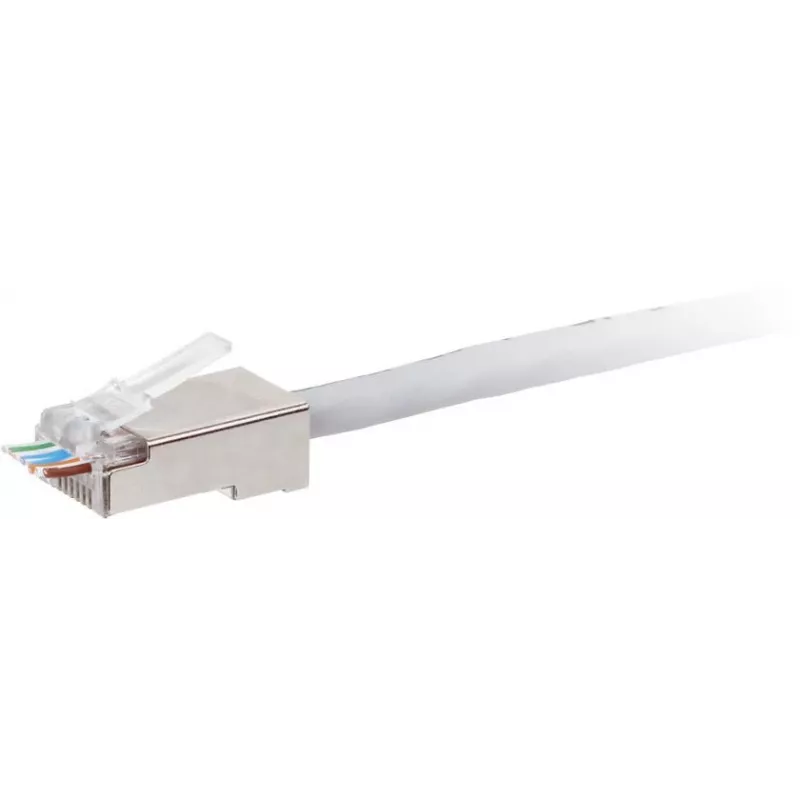

GETFORT RJ45 Cat.5e tienený priechodný konektor 8P8C 100 ks

The GETFORT GF-RJ45P-5FTP-100 is a high-quality RJ45 pass-through connector designed for Cat.5e Ethernet networks. This shielded (STP/FTP compatible) connector ensures reliable data transmission up to 1000 Mbps (Gigabit Ethernet) with a bandwidth of 100 MHz. The pack contains 100 pieces, making it ideal for bulk cabling projects.

Advantages

These connectors feature a pass-through design for easy cable insertion and verification of wire order before crimping. The 50 micron gold-plated contacts provide excellent conductivity and corrosion resistance, ensuring long-term performance. The transparent housing allows for visual inspection of the termination.

Suitable for

• Ethernet network cabling (Cat.5e)
• Structured cabling in offices, data centers, and homes
• Terminating solid and stranded conductors (23-26 AWG)

Key specifications

• Connector Type: RJ45
• Category: Cat.5e
• Pin Configuration: 8P8C
• Shielding: Shielded (STP/FTP compatible)
• Style: Pass-Through (EZ-RJ45)
• Quantity: 100 pieces
• Contact Plating: 50 micron gold
• Housing Material: High-impact polycarbonate
• Conductor Gauge: 23-26 AWG
• Data Transfer Rate: Up to 1000 Mbps
• Bandwidth: Up to 100 MHz
• Termination: Crimp (requires RJ45 crimp tool)
• Color: Transparent
• Compliance: RoHS
• Durability: 750 mating cycles
• Operating Temperature: -40°C to 85°C

Recommendations

Use with a compatible RJ45 crimp tool for pass-through connectors. Ensure proper cable preparation and wire order (T568A or T568B) for optimal performance.
