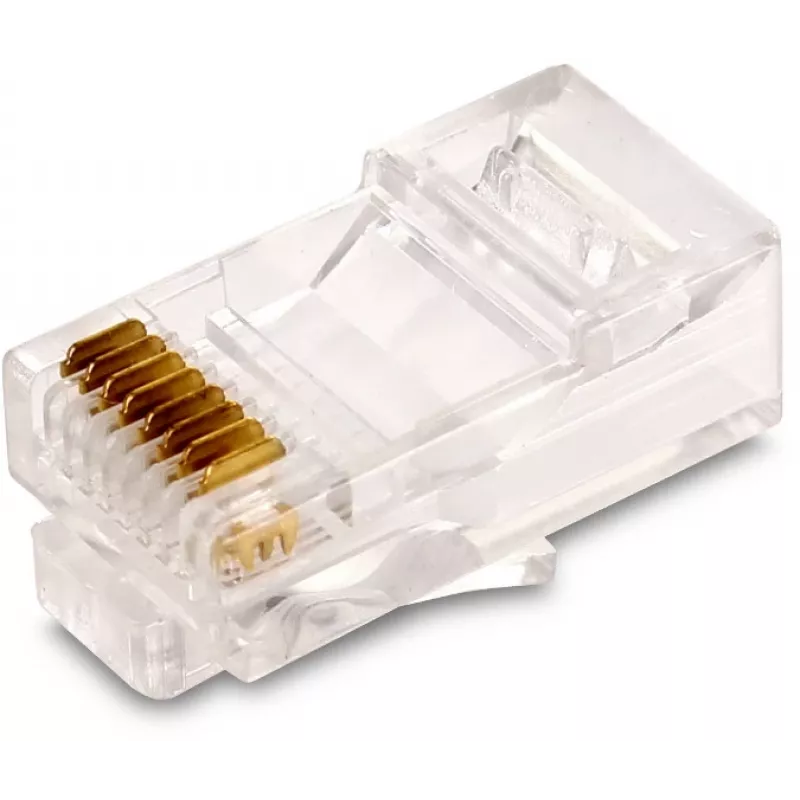

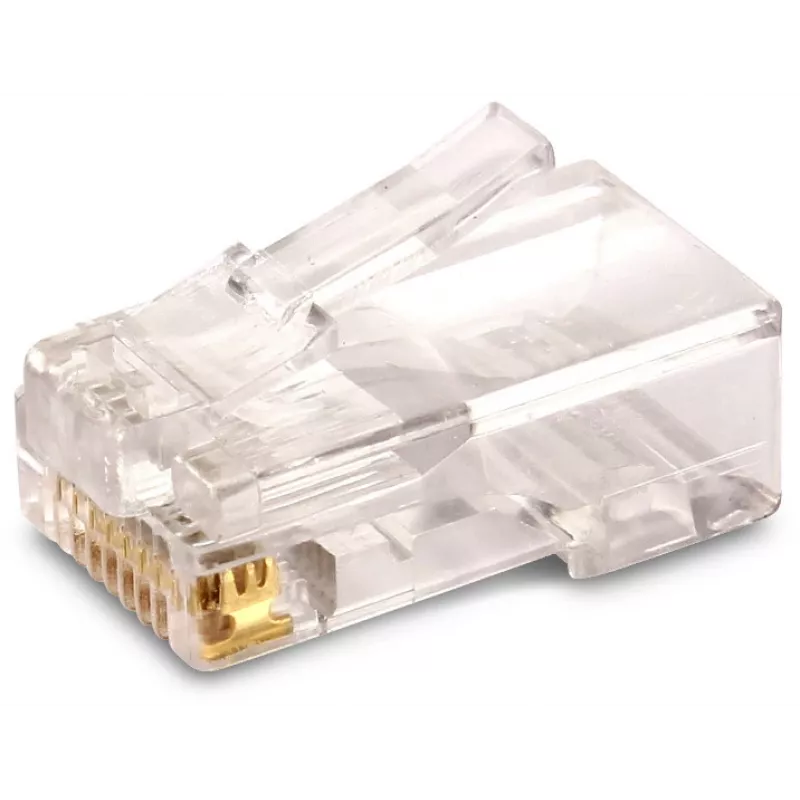

GETFORT RJ45 Cat.5e UTP 8P8C sieťový konektor samec 100 kusov

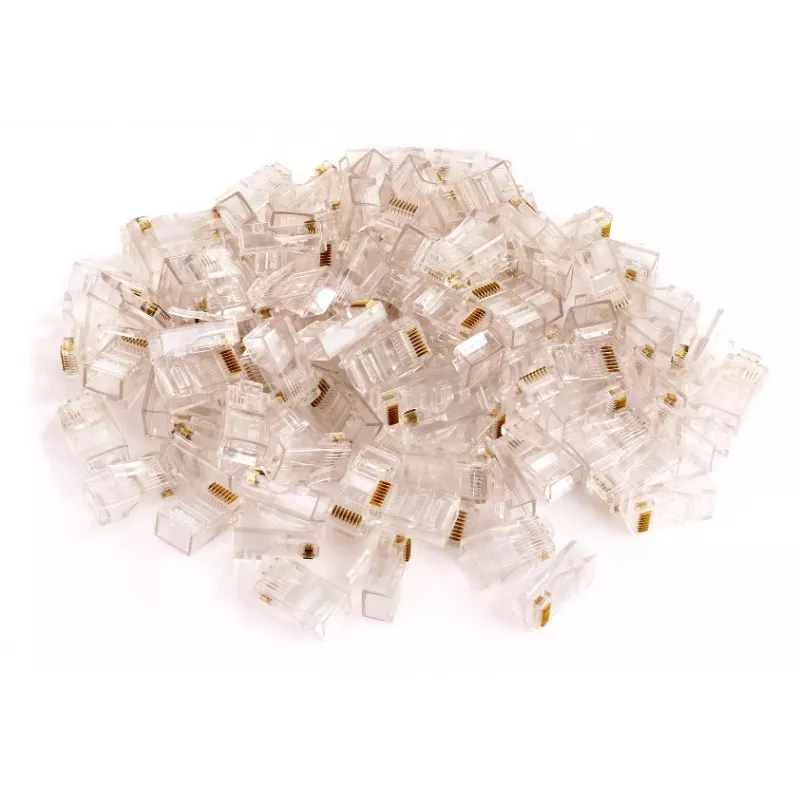

The GETFORT GF-RJ45-5UTP-100 is a high-quality RJ45 Cat.5e UTP connector, designed for reliable Ethernet networking. This pack contains 100 pieces, ideal for professional installers and network technicians. Each connector features gold-plated contacts (3µm) for optimal conductivity and corrosion resistance, ensuring stable data transmission up to 1000 Mbps (Gigabit Ethernet). The transparent polycarbonate housing allows for easy inspection of wire placement, and the connector supports both solid and stranded cables (24-26 AWG). Compliant with TIA/EIA-568-B.2 standards, these connectors are suitable for a wide range of networking applications.

Advantages

Gold-plated contacts ensure long-lasting performance and minimal signal loss. The transparent housing simplifies installation by allowing visual confirmation of proper wiring. With a durability of 750 mating cycles, these connectors are built for repeated use. The UTP design is ideal for standard Ethernet environments, offering cost-effective and reliable connectivity.

Suitable for

• Ethernet network installations (Cat.5e and lower categories)
• Structured cabling systems
• Patch panel and wall outlet terminations
• DIY and professional network projects

Key specifications

• Connector Type: RJ45
• Category: Cat.5e
• Pin Configuration: 8P8C
• Shielding: UTP (Unshielded Twisted Pair)
• Quantity: 100 pieces
• Contact Plating: Gold-plated, 3µm
• Housing Material: Polycarbonate (PC)
• Color: Transparent
• Cable Compatibility: Solid and Stranded
• Conductor Gauge: 24-26 AWG
• Termination Type: Crimp-on
• Standard Compliance: TIA/EIA-568-B.2
• Max Data Rate: 1000 Mbps
• Frequency Bandwidth: 100 MHz
• Operating Temperature: -10°C to 60°C
• Durability: 750 mating cycles
• Contact Material: Phosphor Bronze

Recommendations

For best results, use with a quality crimping tool designed for RJ45 connectors. Ensure proper cable stripping and wire alignment before crimping. These connectors are suitable for both home and office network installations.
