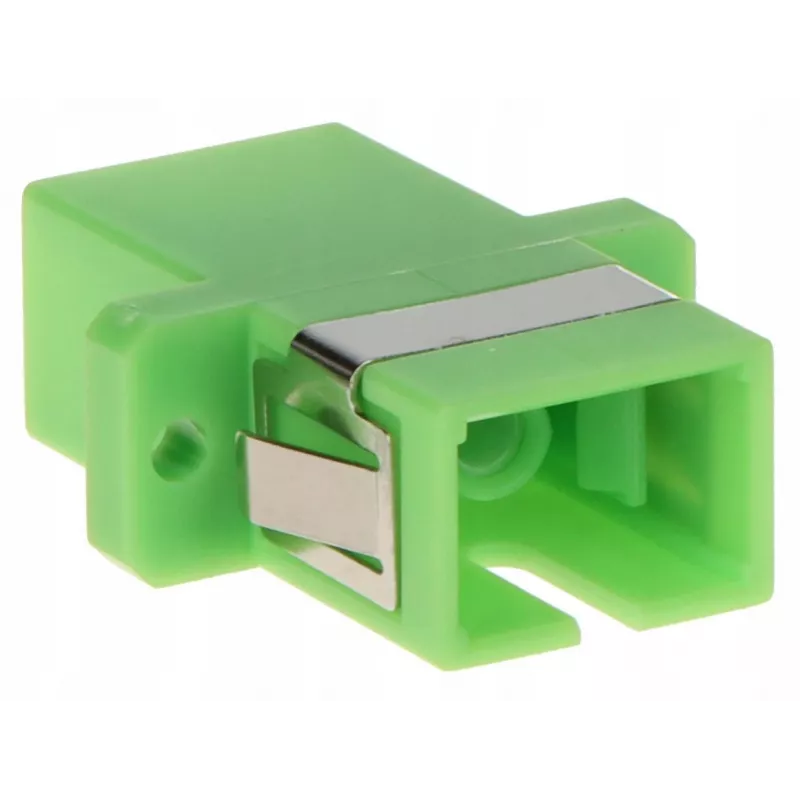

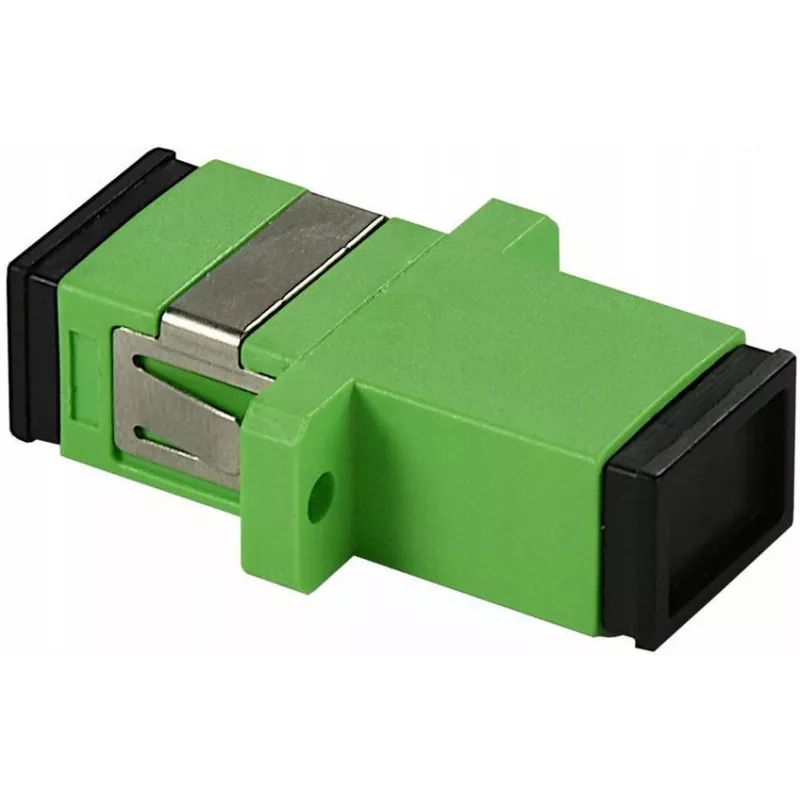

GETFORT SC/APC Simplex optický adaptér, Singlemode, zelený, prírubová montáž

In fiber optic networks, a reliable connection point is critical to maintaining signal integrity and minimizing downtime. The GETFORT SC/APC Simplex Adapter provides a precise, low-loss interface for joining SC/APC connectors in single-mode applications. Its angled physical contact (APC) polish reduces back reflections, ensuring stable performance in FTTH, LAN, telecommunication, and data center environments.

Who is it for

This adapter is ideal for network installers, telecom technicians, and data center managers who need a durable, high-performance coupling solution for SC/APC single-mode fiber links. It suits both new installations and upgrades in patch panels, wall outlets, and equipment interfaces.

Main features

• Simplex SC/APC to SC/APC female-to-female coupling
• Zirconia ceramic split sleeve for precise fiber alignment
• Low insertion loss ≤ 0.2 dB and high return loss ≥ 60 dB
• Flanged panel-mount design for secure installation
• Green ABS housing for easy identification of APC polish
• RoHS and REACH compliant, IEC 61754-4 standard

Specifications

• Adapter Type: Simplex
• Connector Type (Side A): SC/APC Female
• Connector Type (Side B): SC/APC Female
• Fiber Mode: Single-mode (SM)
• Ferrule Material: Zirconia Ceramic
• Insertion Loss: ≤ 0.2 dB
• Return Loss: ≥ 60 dB
• Durability: > 500 mating cycles
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C
• Housing Material: ABS Plastic
• Mounting Type: Flanged (Panel Mount)
• Colour: Green
• Compliance: RoHS, REACH
• Standard: IEC 61754-4
• Wavelength Range: 1260nm - 1650nm
• Sleeve Type: Split Sleeve
• Application: FTTH, LAN, Telecommunication Networks, Data Centers

Tips

For best performance, clean connector end faces before mating and use dust caps when not in use. The green housing indicates an APC polish—do not mix with UPC (blue) connectors to avoid damage and high loss.
