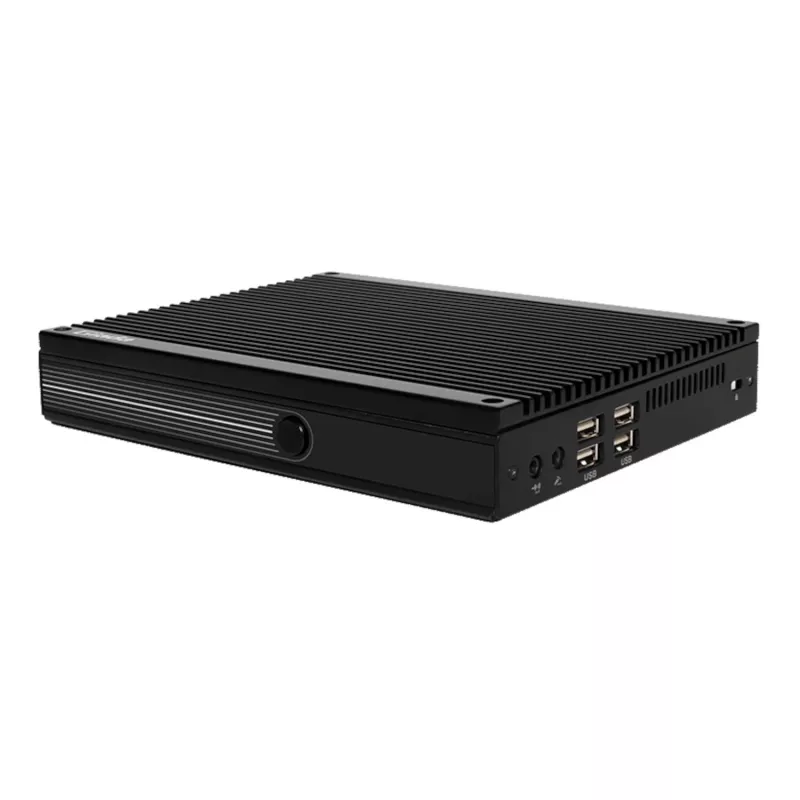

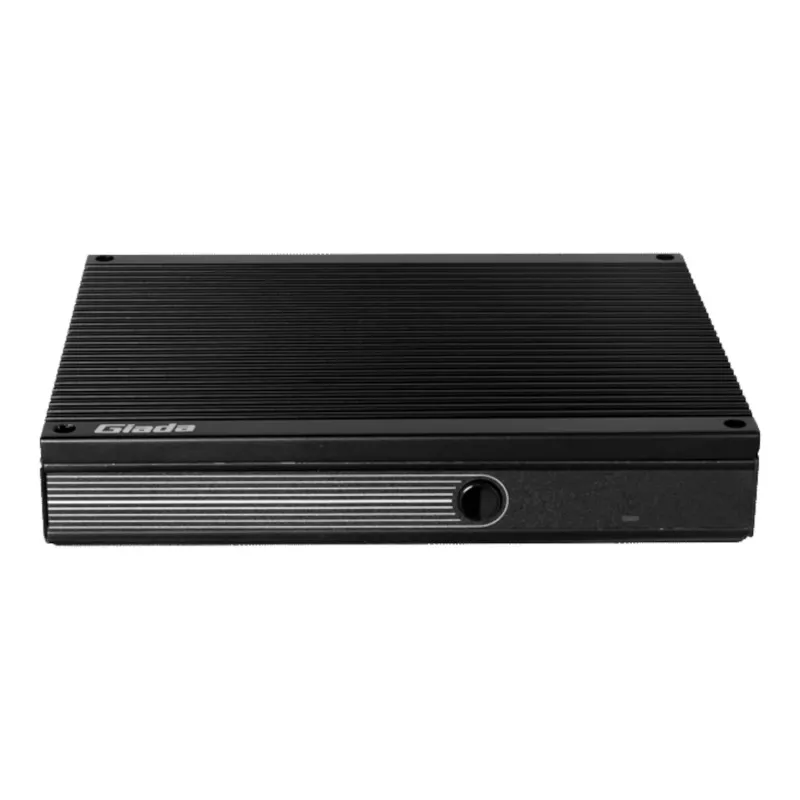

Giada F109D Embedded počítač bez ventilátora, procesor Intel Twin Lake

The Giada F109D is a fanless embedded computer built around an Intel Twin Lake processor, designed for industrial and commercial environments. Its fanless architecture and metal chassis support silent operation and 24/7 uptime, while rich I/O and dual LAN connectivity enable flexible integration.

Key features

• Fanless design for silent operation and improved reliability
• Intel Twin Lake processor
• Supports dual independent displays via HDMI and DisplayPort

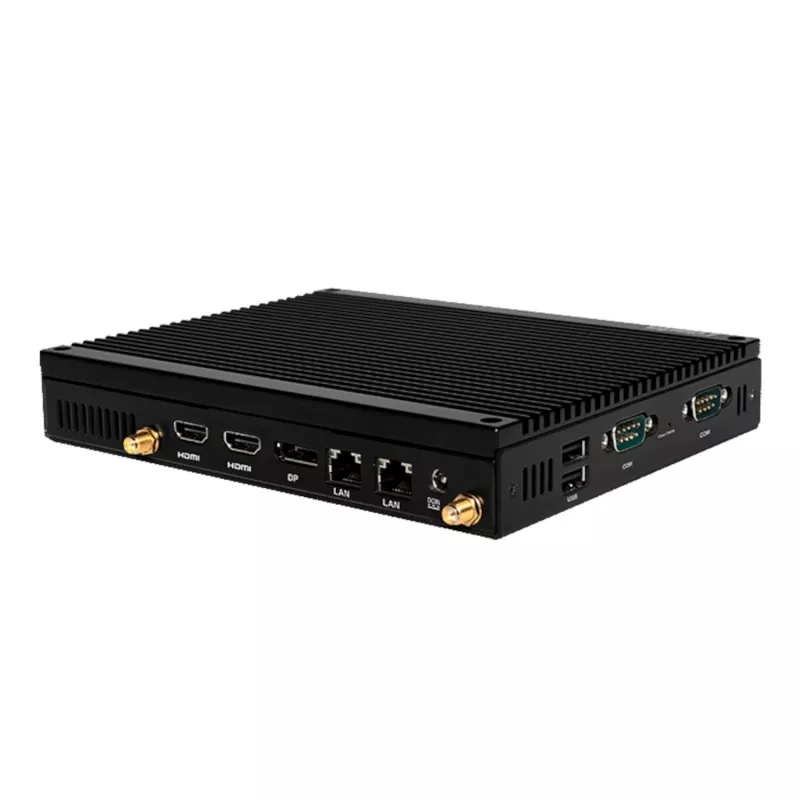

• Rich I/O: USB, COM, and dual LAN ports
• Expandable with optional Wi-Fi and 4G LTE modules
• Supports TPM for enhanced security
• Ideal for digital signage, retail terminals, kiosks, and edge computing

Specifications

• Brand: Giada
• MPN: F109D-V0-N9750E6G-GIA
• CPU: Intel Processor N97, Turbo Frequency 3.60 GHz
• Chipset: SoC
• Processing Units: 4 Cores
• TDP: 12 W
• System Memory: 8 GB / 16 GB, 1 x SO-DIMM DDR5-4800 MHz
• Storage: 1 x M-Key M.2 (2280) PCIe3.0 X4 for SSD
• Optional: 32GB / 64 GB onboard eMMC
• Watchdog Timer: Yes
• Auto Power On: Yes
• RTC: Set up independently every day, for a week, as a cycle
• Power Requirement: DC-IN, 19 V/2.37 A
• Dimensions: 189.6mm x 148.3mm x 31.7mm (7.46” x 5.83” x 1.25”)
• Construction: Metal, Black
• Operating System: Windows 11 (64-bit) / Linux Ubuntu (64-bit)
• Operating Temperature: 0°C ~45°C @0.7m/s Air Flow
• Certifications: CE, FCC Class B, UKCA
• Humidity: 95% @ 45°C (non-condensing)
• Network Controller: 2 x Realtek RTL 8111H Gigabit Ethernet
• Ethernet Interface: 2 x 1 GbE RJ45
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
• Mobile Network: 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
• GPU: Intel Graphics
• Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0
• Display Interface: 1 x DP (Max.4096 x 2160 @60Hz), 2 x HDMI (Max.4096 x 2160 @60Hz)
• USB: 2 x USB3.2 Gen2, 4 x USB2.0
• Serial Port: 2 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Button: 1 x Power on, 1 x CLR-CMOS
• Antenna: 2 x Connector for Wi-Fi/BT
