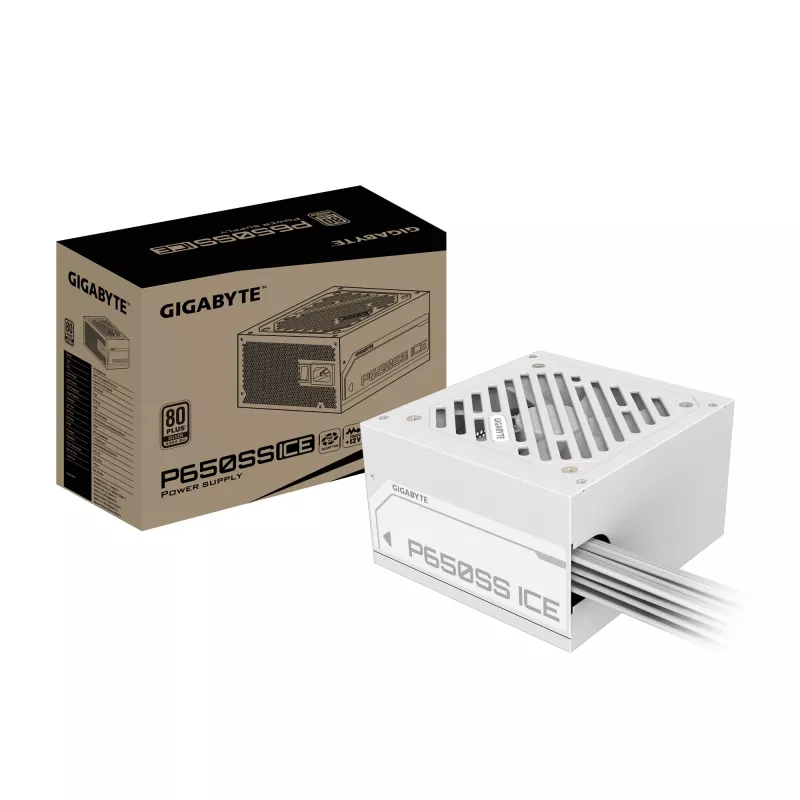

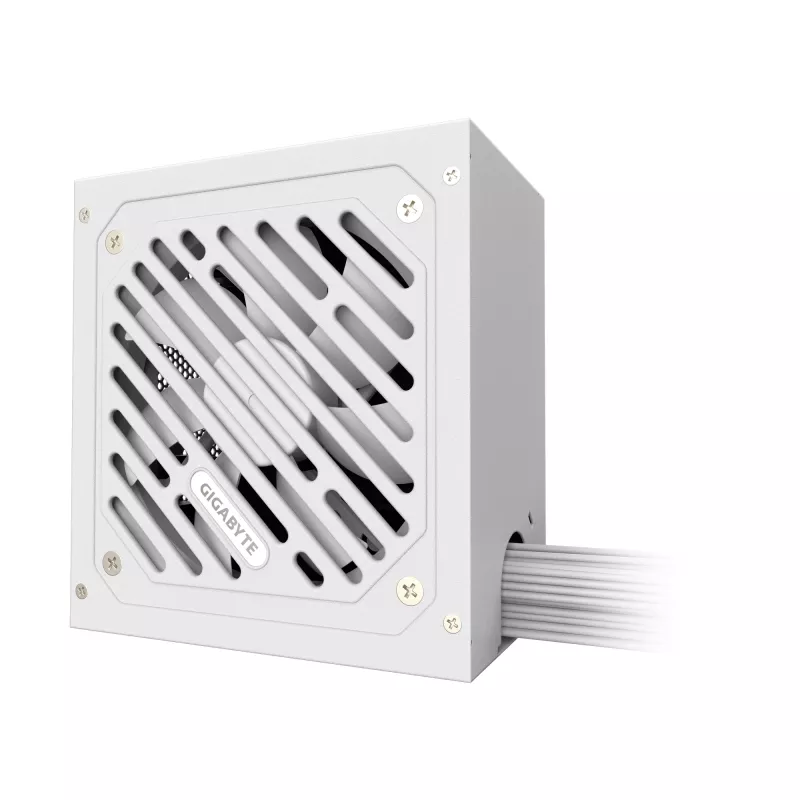

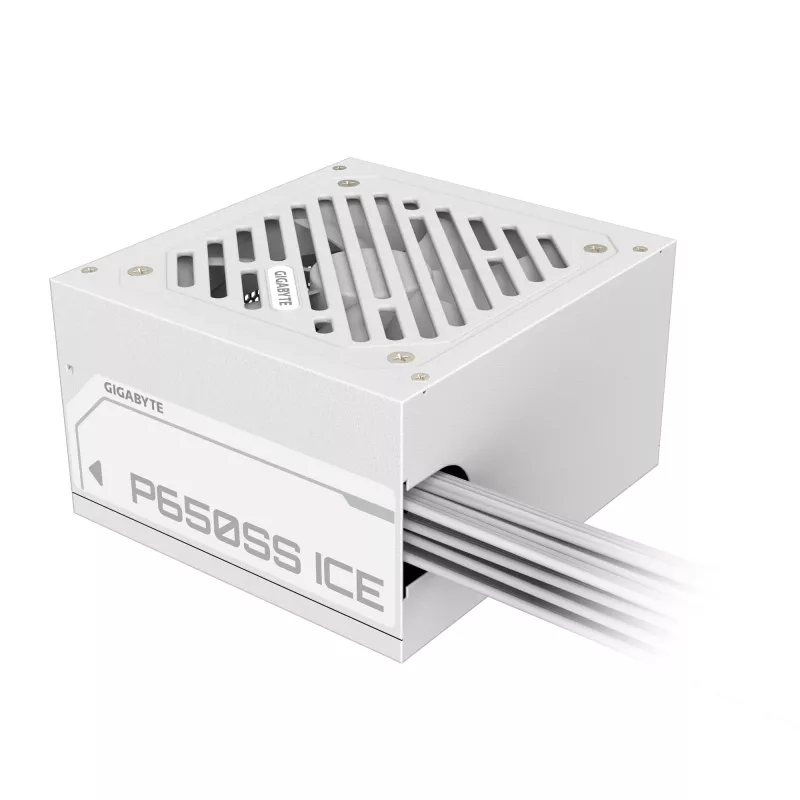

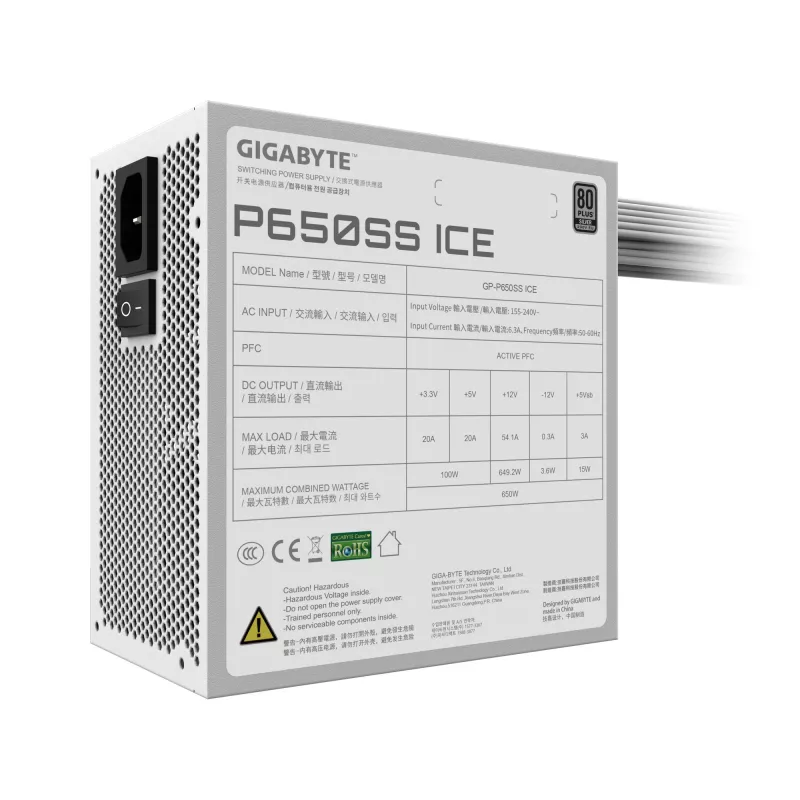

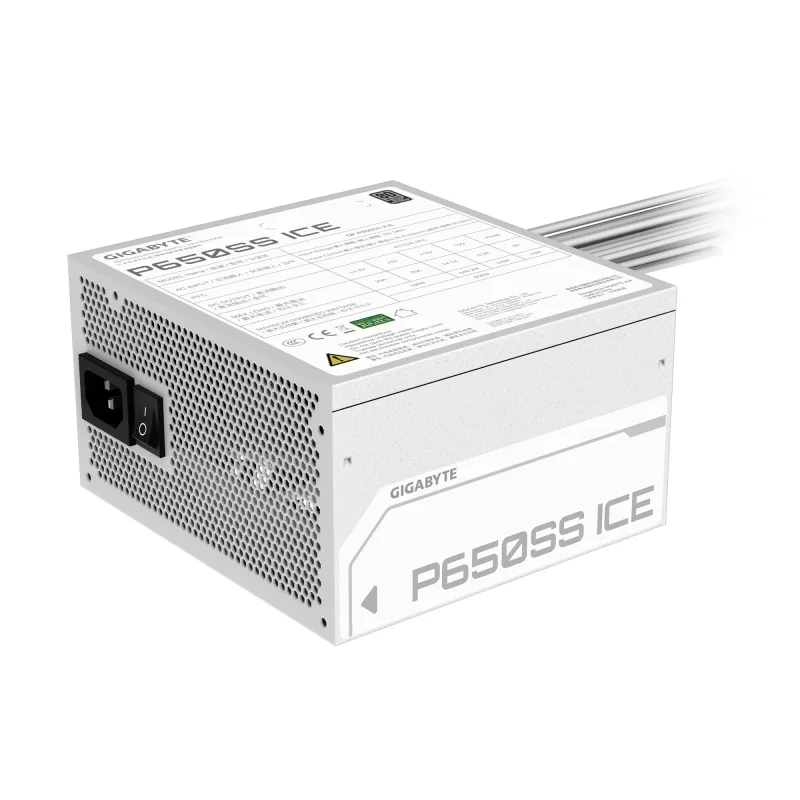

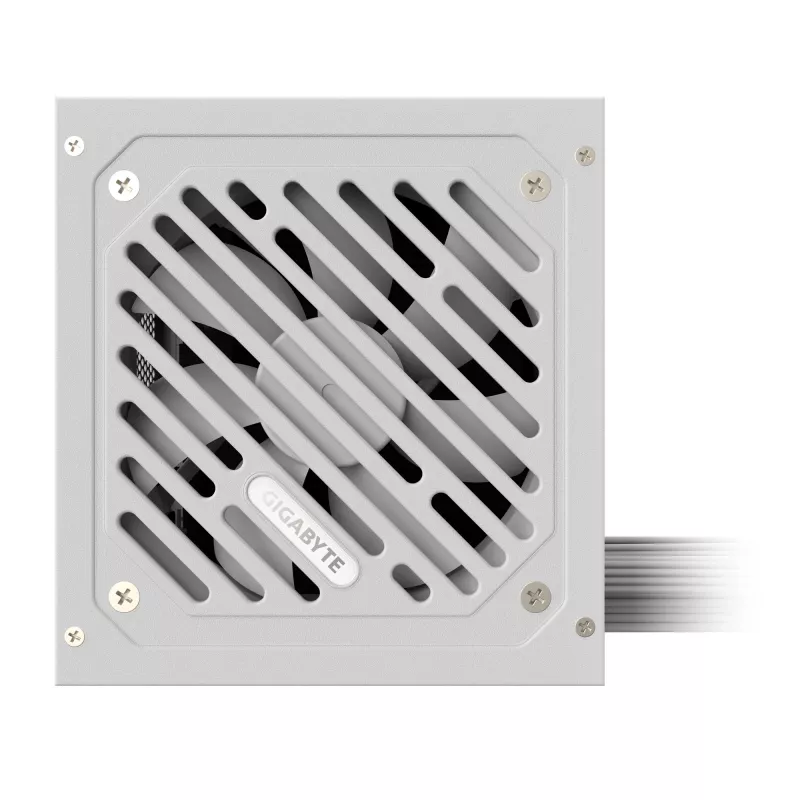

GIGABYTE P650SS ICE napájací zdroj - PCIe 5.0, 80 PLUS Silver, 120mm ventilátor, ATX 3.0 kompatibilný, EU konektor

The GIGABYTE P650SS ICE 650W is a fully modular ATX 3.0 power supply designed to deliver stable 650 W power for desktop PCs. Certified 80 PLUS Silver and supporting PCIe 5.0, this unit features a 120 mm active cooling fan, white housing, and compact dimensions (140 × 150 × 86 mm). It accepts AC input between 155–240 V at 50/60 Hz and includes standard connectors such as a 20+4 pin ATX motherboard cable and SATA power leads of 120 mm and 500 mm.

Advantages

The fully modular design simplifies cable management and system builds by allowing connection of only required cables. 80 PLUS Silver certification ensures improved energy efficiency compared with non-certified units. Compatibility with ATX 3.0 and PCIe 5.0 support makes the power supply suitable for modern components. A 120 mm fan provides active cooling while maintaining a compact form factor for typical desktop cases.

Suitable for (tasks / use cases)

• Home and office desktop PCs
• Mid-range gaming systems with PCIe 5.0 graphics cards
• System builders and PC upgrades requiring modular cabling
• Enclosures compatible with standard ATX power supplies

Key specifications

• Total power: 650 W
• Certification: 80 PLUS Silver
• Motherboard connector: 20+4 pin ATX
• Fan diameter: 120 mm
• AC input: 155–240 V, 50/60 Hz
• Dimensions (W×D×H): 140 × 150 × 86 mm
• Weight: 2.23 kg
• Color: White

How to use

Install the power supply into a compatible ATX case following the case and motherboard manufacturer instructions. Connect the 20+4 pin ATX cable to the motherboard and attach required PCIe, SATA, and peripheral cables as needed. Ensure AC mains voltage is within the stated 155–240 V range before powering on. Route modular cables to avoid obstructing airflow and secure all connections before starting the system.

Recommendations

For stable long-term operation, use a quality surge protector or UPS, verify compatibility of your graphics card(s) with PCIe 5.0 power requirements, and maintain case airflow by cleaning dust from the 120 mm fan and filters periodically.
