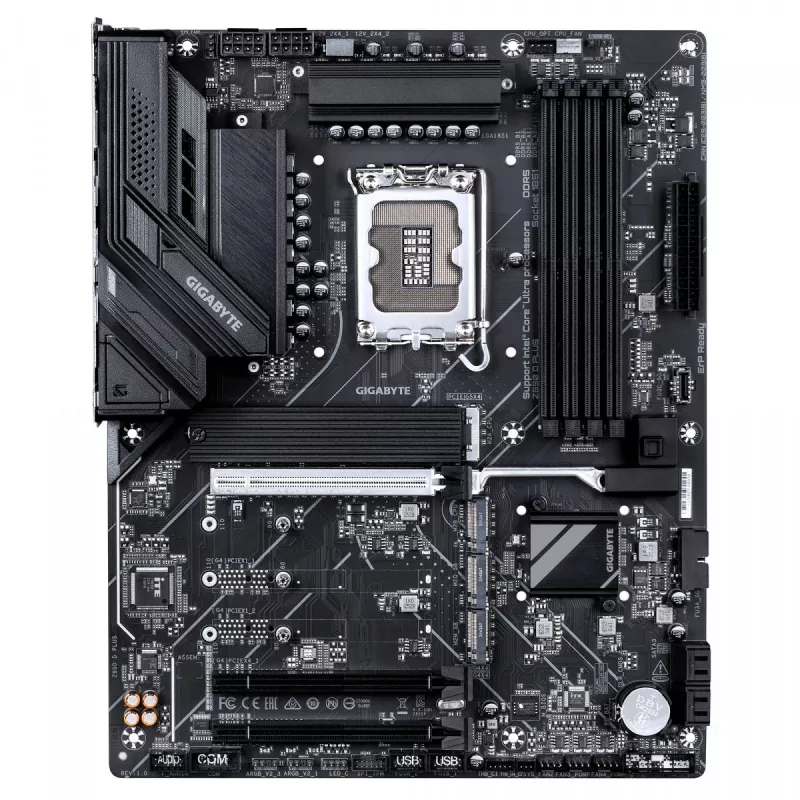

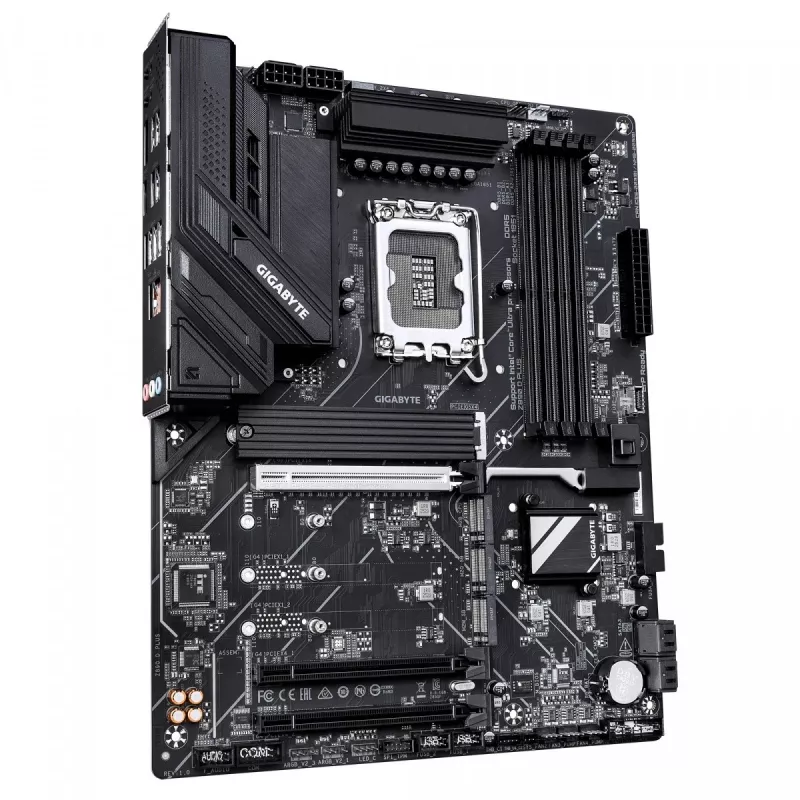

GIGABYTE Z890 D PLUS základná doska LGA1851 DDR5 ATX

The GIGABYTE Z890 D PLUS motherboard is designed for Intel Core Ultra processors (Series 2) with the LGA1851 socket. It features a robust 20+1+1 phase VRM solution, DDR5 memory support up to 8000+ MHz (OC), and advanced thermal design for stable performance. With PCIe 5.0 support, multiple M.2 slots, and 2.5GbE LAN, this motherboard is ideal for gaming, content creation, and high-performance computing.

Advantages

Unlock hidden performance with Ultra Turbo Mode. The digital twin 12+1+2 phases VRM solution ensures stable power delivery. D5 Bionic Corsa provides infinite memory performance. PCIe EZ-Latch Plus offers quick-release and screwless design for easy installation. Friendly UI with Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. New Power Monitor in HWinfo for real-time monitoring on CPU power phases.

Suitable for

• Intel Core Ultra processors (Series 2)
• High-end gaming and overclocking
• Content creation and multitasking
• Professional workstations

Key specifications

• CPU Socket: Intel LGA 1851
• Chipset: Intel Z890 Express
• Memory: 4 x DDR5 DIMM slots, up to 256 GB, supports DDR5 8000+ (OC)
• Form Factor: ATX
• PCIe Slots: 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1
• Storage: 4 x M.2 slots (1 x PCIe 5.0, 3 x PCIe 4.0), 6 x SATA3 6.0 Gb/s
• Ethernet: 2.5 Gigabit LAN (Realtek Dragon RTL8125BG)
• Wireless: Wi-Fi 7 (802.11be) + Bluetooth 5.4
• Audio: Realtek ALC4080 7.1 CH HD Audio, Nahimic Audio
• Rear USB: 1 x USB 3.2 Gen2x2 Type-C, 2 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Type-A
• Video Outputs: 1 x DisplayPort 1.4, 1 x HDMI 2.1
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS 12V

Recommendations

For optimal performance, pair with Intel Core Ultra processors and high-speed DDR5 memory. Ensure adequate cooling for overclocking. Compatible with Windows 11 64-bit.
