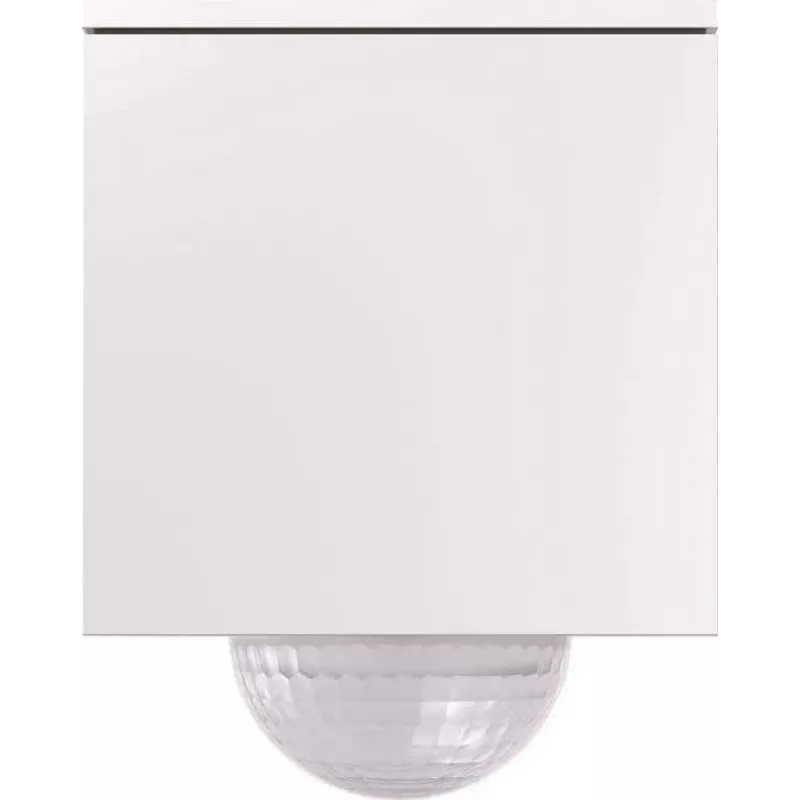

GIRA 240° pohybový senzor čistá biely podomietkový 244402

Lighting control often fails because standard motion detectors have a narrow field of view or cannot handle the load of modern LED lamps. The GIRA 240° Motion Detector in pure white solves this by combining a wide 240° detection angle with a robust 2300 W incandescent/halogen switching capacity, making it suitable for both residential and commercial spaces.

Who is it for

This flush-mounted motion detector is ideal for electricians, facility managers, and homeowners who need reliable automatic lighting in hallways, stairwells, offices, or outdoor covered areas. Its pure white finish blends seamlessly with GIRA switch ranges, and its high load rating supports large lighting circuits without additional relays.

Main features

• 240° detection angle with a range of approximately 12 m diameter at 2.5 m mounting height
• Adjustable twilight threshold from 1 to 1000 lux and time delay from 10 seconds to 30 minutes
• Supports incandescent/halogen loads up to 2300 W, electronic transformers up to 1200 W, LED up to 400 W, and fluorescent up to 1200 VA
• Flush-mounted design for discreet integration into walls or ceilings
• Additional functions: short-term operation, presence simulation, and teach-in function

Specifications

• Operating voltage: 230 V AC, 50/60 Hz
• Standby power consumption: approx. 0.5 W
• Protection class: IP20
• Operating temperature: -20 °C to +45 °C
• Housing material: thermoplastic, shatterproof
• Recommended installation height: 2.20 to 2.50 m

Tips

For optimal detection, mount the detector at a height of 2.20 to 2.50 m and avoid direct sunlight or heat sources that may affect the infrared sensor. Use the teach-in function to set the twilight threshold based on actual ambient light conditions.
