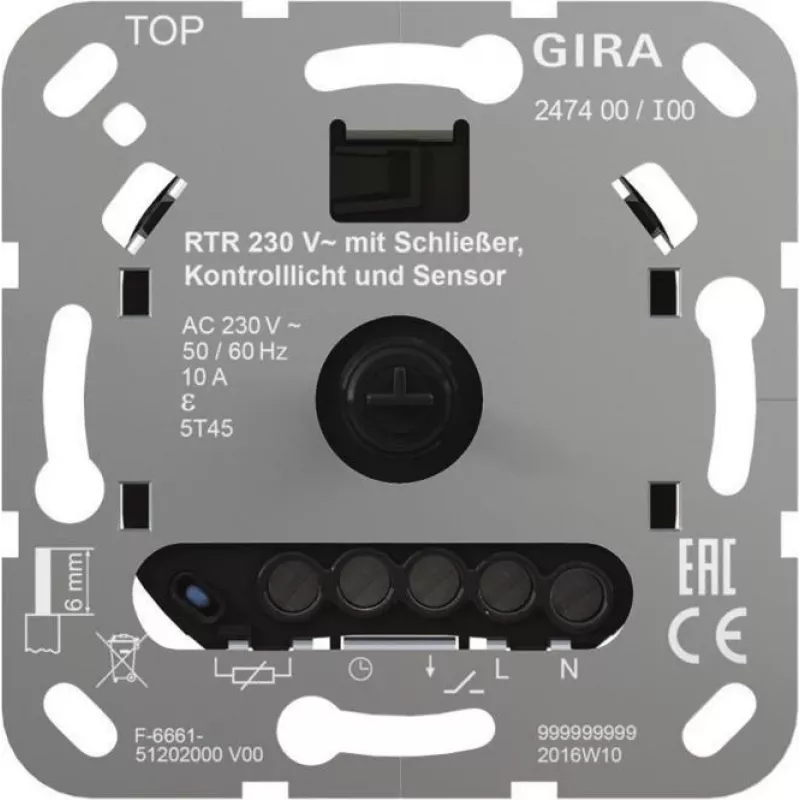

Gira izbový termostat 230 V spínací kontakt 247400

Maintaining a consistent room temperature without constant manual adjustment can be a challenge. The Gira Room Temperature Controller 247400 solves this by automatically regulating heating systems based on the ambient temperature. This flush-mounted controller uses a bimetal sensor with thermal feedback to switch a 10 A resistive load, making it suitable for controlling electric heaters, thermal actuators, or pumps in residential and commercial settings.

Who is it for

This controller is ideal for electricians, HVAC installers, and homeowners who need a reliable, non-programmable room thermostat for heating control. It fits standard Gira switch ranges including System 55, E2, Event, Esprit, and ClassiX, ensuring seamless integration with existing installations.

Main features

• Analog control with bimetal sensor and thermal feedback for stable temperature regulation
• Adjustable setpoint from +5 °C to +30 °C with approximately 0.5 K switching differential
• 1 normally open (NO) contact rated for 10 A resistive or 2 A inductive loads
• LED indicator shows heating operation status
• Flush-mounted design with screw terminals for conductors up to 2.5 mm²
• Compatible with Gira System 55, E2, Event, Esprit, and ClassiX frames

Specifications

• Operating voltage: AC 230 V, 50/60 Hz
• Switching current: 10 A resistive, 2 A inductive
• Temperature setting range: +5 °C to +30 °C
• Switching differential: approx. 0.5 K
• Control principle: bimetal with thermal feedback
• Mounting type: flush-mounted
• Protection class: IP20
• Colour: pure white glossy
• Operating mode: heating
• Temperature sensor: internal
• Connection: screw terminals, max 2.5 mm²
• Installation depth: approx. 32 mm
• Ambient temperature: 0 °C to +40 °C
• Material: thermoplastic

Tips

For optimal performance, install the controller on an interior wall away from direct sunlight, drafts, or heat sources. The internal sensor requires free air circulation, so avoid covering the unit. Use with a suitable Gira cover frame from the compatible ranges to match your décor.
